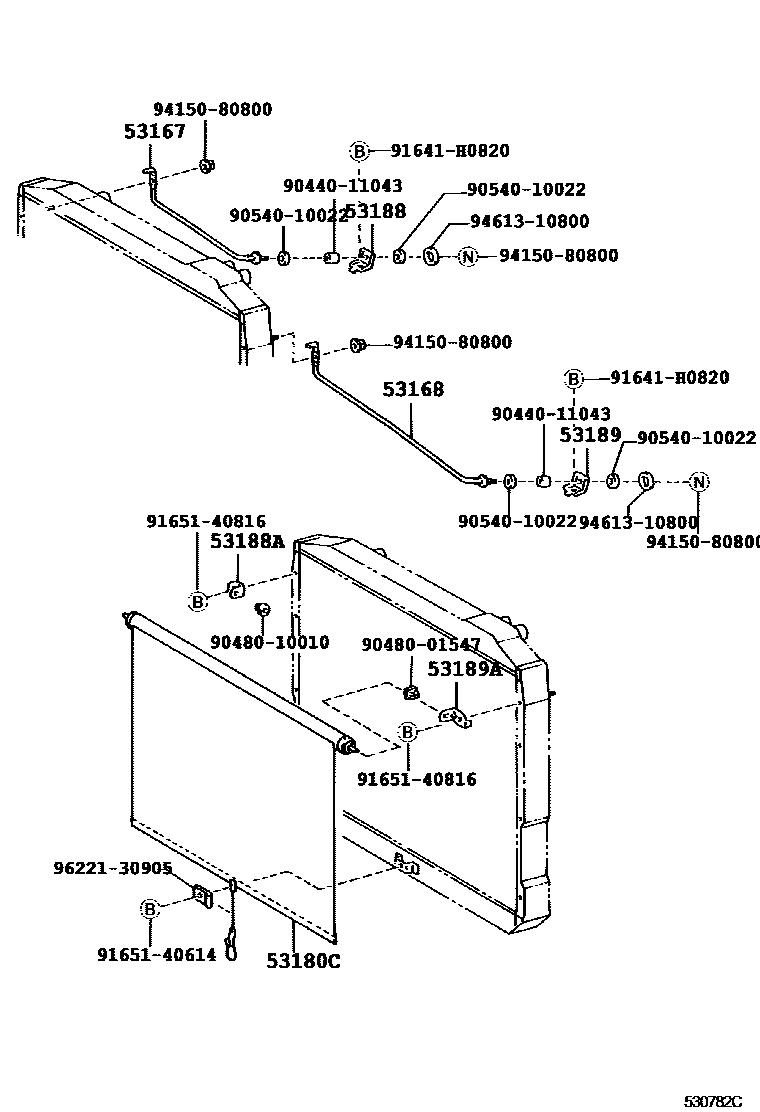

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main16533-17030iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199907-201501

main16533-17040iBB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN199907-201501

main16533-58070iBB50,58..LHD..TDEFI199907-201501

main16533-58080iBB43,50..RHD..STD;BB50..EX..GEN..CBU199907-200105

sub16533-58090

main16533-58090iBZB40,50200104-201501

main16533-78070iXZB50..STD..GEN200608-200908

main16533-78080iXZB50..LHD200608-200908

main16533-78130iXZB50..LHD..IV200908-201501

main16533-78140iXZB40,5#..RHD200908-201501

main53167-36100iBB40,42,HZB50..RHD199301-199907

main53167-36110iBB42,HZB50,RZB40,50..LHD199301-199907

sub16533-17040

main53167-36120iBB43,50..RHD199605-199907

sub16533-58080

main53167-36130iBB5#..LHD199605-199907

sub16533-58070

53168ROD, RADIATOR BRACE, LH

main16534-17020iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199907-201501

main16534-17030iRZB40,50..CHI199907-201501

main16534-58040iBB5#..LHD199907-200105

sub16534-58060

main16534-58050iBZB40,50..STD199907-201501

main16534-58060iBB50..TD200105-201501

main16534-78070iXZB40,59;XZB50..RHD..IV;XZB50..RHD..(20S,21S)200608-200908

main16534-78080iXZB50..LHD200608-200908

main16534-78110iXZB50..TAIW200908-201501

main16534-78120iXZB50..RHD..IV200908-201501

main53169-36090iBB40,42,HZB50..RHD199301-199907

main53169-36100iBB42,HZB50,RZB40,50..LHD199301-199907

sub16534-17030

main53169-36110iBB43,50..RHD199605-199907

sub16534-58050

main53169-36120iBB5#..LHD199605-199907

sub16534-58040

53180CSHUTTER ASSY, RADIATOR

main53180-36010iBB42..LHD..WOC..GEN;HZB50..LHD..SRF..GEN;HZB50..30S..GEN..4FC199301-200408

COLD ARER PACKAGE

main53180-36010iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199705-200408

*EX-USSR

main53180-36010iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC200408-200701

COLD AREA SPEC

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-36010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-201501

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-36010iBB42..LHD..WOC..GEN;HZB50..LHD..SRF..GEN;HZB50..30S..GEN..4FC199301-200408

COLD ARER PACKAGE

main53188-36010iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199705-200408

*EX-USSR

main53188-36010iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC200408-200701

COLD AREA SPEC

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-36010iBB4#,5#,HZB50,RZB40,50199301-201501

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-36010iBB42..LHD..WOC..GEN;HZB50..LHD..SRF..GEN;HZB50..30S..GEN..4FC199301-200408

COLD ARER PACKAGE

main53189-36010iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199705-200408

*EX-USSR

main53189-36010iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC200408-200701

COLD AREA SPEC

9044011043

main90440-11043

9048001547

main90480-01547

9048010010

main90480-10010

9054010022

main90540-10022

91641H0820

main91641-H0820

9165140614

main91651-40614

9165140816

main91651-40816

9415080800

main94150-80800

9461310800

main94613-10800

9622130905

main96221-30905

17 parts on this diagram · 1 diagram in section
