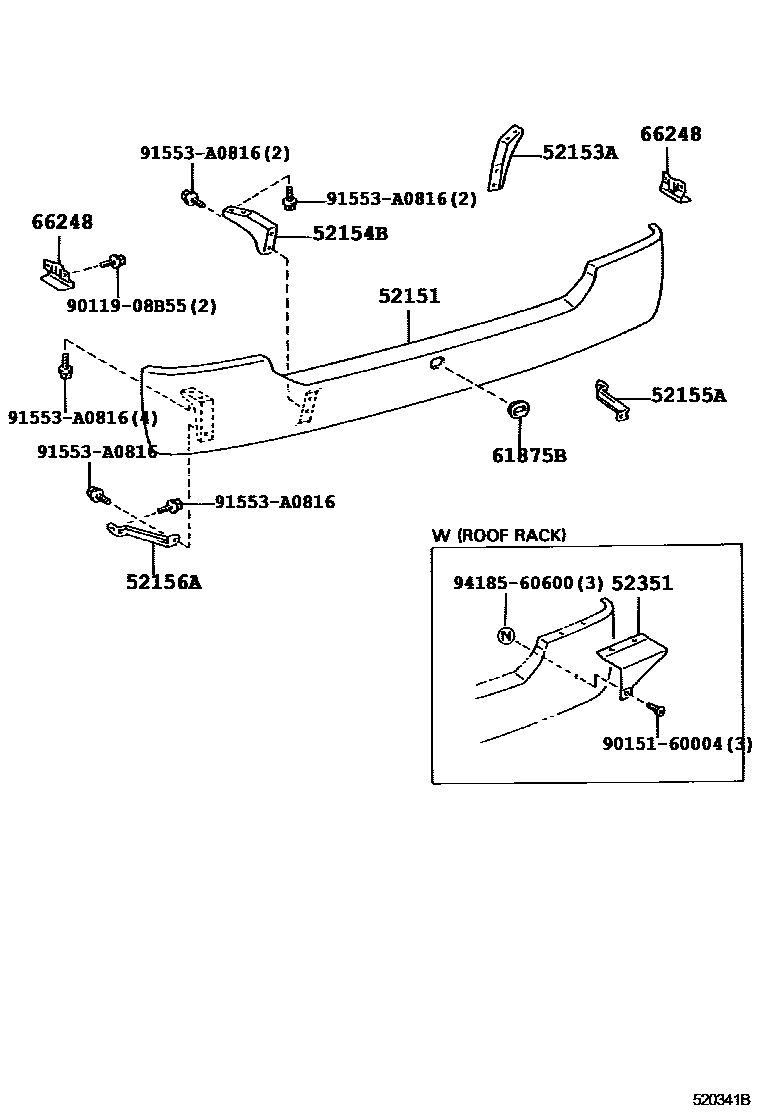

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 12-PIECE BUMPER

52151BUMPER ASSY, REAR

main52105-36900iRZB40,50..GEN199301-201501

main52105-36901iRZB40..SRF..GEN199301-201501

W(ROOF RACK)

main52105-36905iBB42,HZB50,TRB40,50..GCC200602-201501

main52105-36906iBB42,HZB50,TRB40,50..SRF..GCC200602-201108

W(ROOF RACK)

main52105-36907iBZB40,50,XZB40,5#..RHD..GEN201209-201501

W(REFLEX REFLECTOR)

main52106-36900iBB58200512-200608

RH

main52107-36900iBB58200512-200608

LH

52153ASTAY, REAR BUMPER SIDE, RH

main52153-36010iXZB50..WOC..CBU199301-201501

main52153-36030iRZB40,50..GCC200602-201501

52154BSTAY, REAR BUMPER SIDE, LH

main52154-36010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

52155ASUPPORT, REAR BUMPER SIDE, RH

main52067-36010iBB42,HZB50,RZB40,50..SRF199301-199907

W(DX ROOM CARTAIN)

main52067-36010iBB42,HZB50,TRB40,XZB40..SRF..GEN199907-201501

W(ROOF RACK)

main52155-36010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI199301-201501

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

52351STEP, REAR BUMPER

main52351-36010iBB42,HZB50,RZB40,50..SRF..GCC199301-200408

W(ROOF RACK)

main52351-36010iBB42,HZB50,RZB40,50..SRF199407-201501

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

66248PROTECTOR, REAR BODY SIDE PANEL, RH

main66248-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

9011908B55

main90119-08B55

9015160004

main90151-60004

91553A0816

main91553-A0816

9418560600

main94185-60600

12 parts on this diagram · 3 diagrams in section
