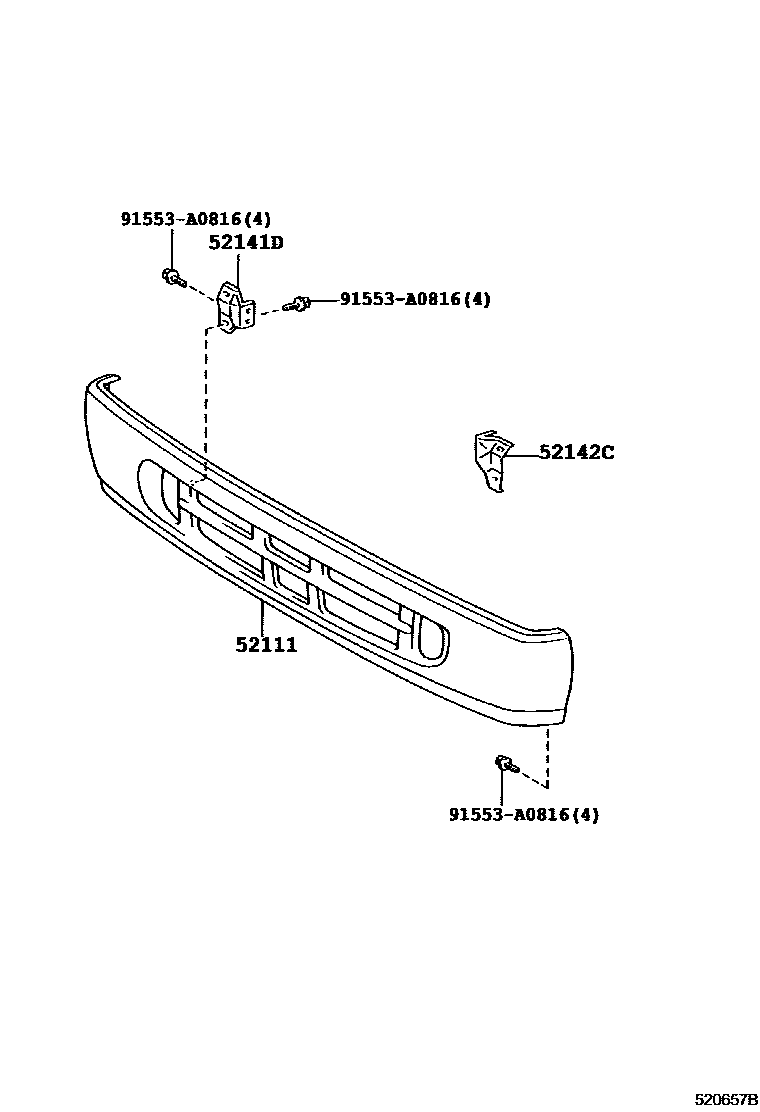

FRONT BUMPER & BUMPER STAY

0001 1 0004 1

52111BUMPER ASSY, FRONT

main52018-36900iRZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S199301-199907

main52018-36901iHZB50,RZB40,50..GCC,GEN199301-199505

W(PRECLEANER)

main52018-36902iBB42..GCC,GEN199301-199505

W(PRECLEANER)

main52018-36903iRZB40,50;HZB50..(20S,30S)..(GCC,GEN)199505-199907

W(PRECLEANER)

main52018-36904iBB42..GCC,GEN199505-199907

W(PRECLEANER)

main52018-36907iBB42..LHD..HRF199907-201501

main52018-36907iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,199907-200408

FOR COLOR PAINT PARTS

main52018-36908iHZB50,TRB40,50,XZB40,50..(26S,30S)..GEN199907-201501

W(PRECLEANER)

main52018-36909iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199907-201501

W(PRECLEANER)

main52018-36934iXZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)200708-201501

main52018-36935iBB42,HZB50,TRB40,50,XZB50..ARL,GCC200708-201501

main52018-36937iBZB40,50200708-201501

52141DSTAY, FRONT BUMPER, RH

main52141-36040iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

52142CSTAY, FRONT BUMPER, LH

main52142-36040iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

91553A0816

main91553-A0816

4 parts on this diagram · 2 diagrams in section
