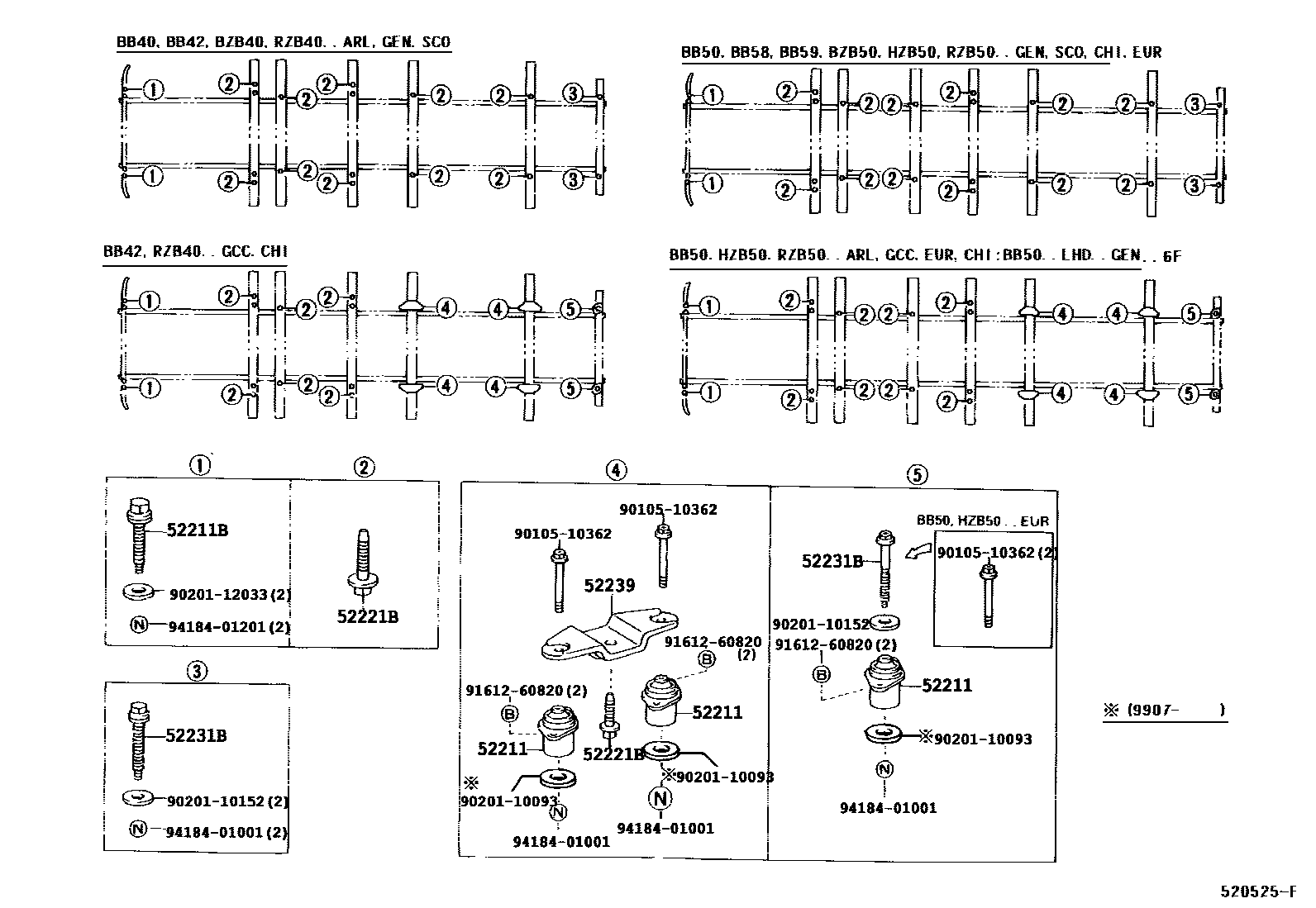

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-36030iBB42..WC..GCC;BB50..CBU..6F;BB42..LHD..SRF..WOC;HZB50..LHD..HRF..STD..GEN;BB50,HZB50,RZB40,50..(ARL,CHI,EUR,GCC)..(DSL,EFI,TDEFI)199301-201503

sub52211-36070

main52211-36070iTRB40,50..GCC;XZB50..DX,STD;BB42,HZB50,XZB40..LHD201504

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-12257iBB4#,HZB50..DSL199301-199308

main90119-12275iBB50,HZB50,RZB40,50..ARL,CHI199308-201501

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10762iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40..(17S,26S)..WC..(GCC,GEN)199301-201501

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-10748iBB4#,HZB50,RZB40,50..ARL,GEN,SCO199301-199507

main90119-10762iXZB50..STD..GEN199507-201108

main90119-10762iXZB5#..EX;BB42..RHD;BB42..LHD..SRF..GEN;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..GEN..(DCR,DSL,EFI,LPG,TD)200408-201501

ROUGH ROAD AREA SPEC

main90119-10762iBB50..EX..GEN;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200408

ROUGH ROAD PACKAGE

main90901-05014iTRB40,50..GCC;XZB50..DX,STD;BB42,HZB50,XZB40..LHD200408-201501

W(BODY MOUNT CUSHION)

main90901-05014iBB42,HZB50,RZB40,50..GCC199301-200908

main90901-05014iBB42..LHD..SRF..WOC..GEN;HZB50..LHD..HRF..STD..GEN199907-200408

JORDAN SPEC

52239PLATE, BODY MOUNTING

main52239-36010iBB42,50,HZB50,RZB40,50..EUR,GCC199301-201501

9010510362

main90105-10362

9020110093

main90201-10093

9020110152

main90201-10152

9020112033

main90201-12033

9161260820

main91612-60820

9418401001

main94184-01001

9418401201

main94184-01201

12 parts on this diagram · 2 diagrams in section
