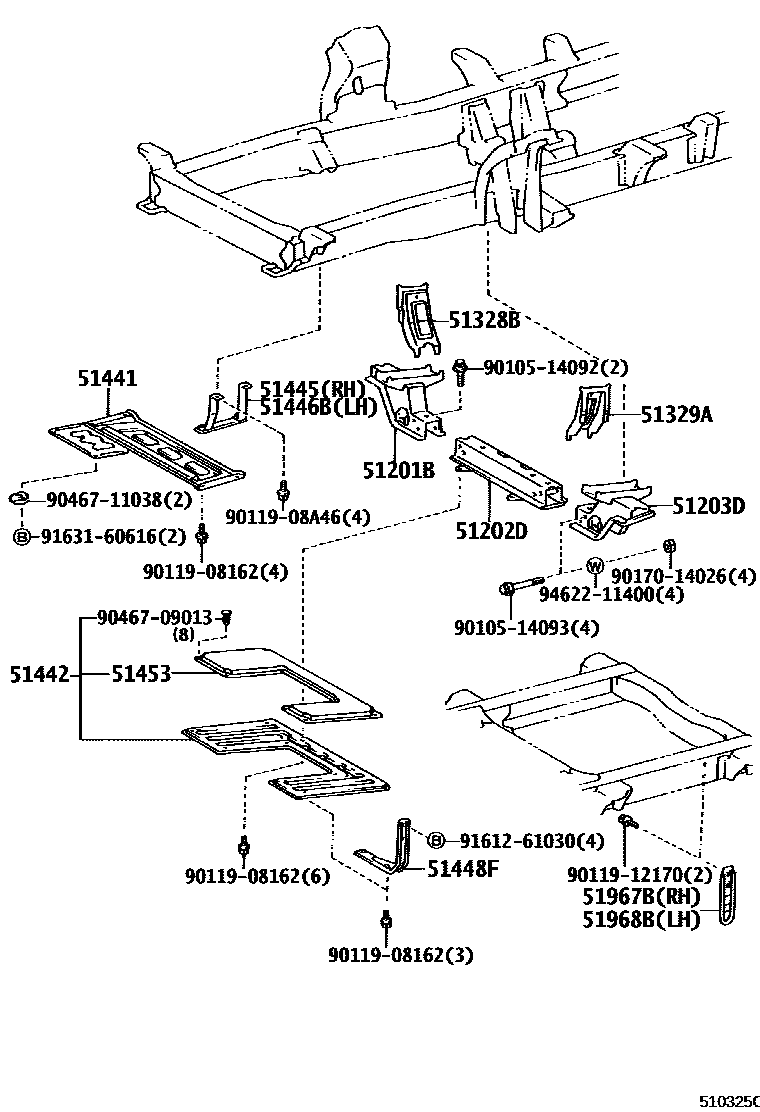

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0011 1

51201BCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH

main51201-36160iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-36170iBB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50199301-200707

sub51202-36171

main51202-36171iXZB50..STD..GEN201501

JORDAN SPEC

main51202-36171iXZB50..STD..GEN200708-201501

main51202-36220iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN201302-201501

51203DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH

main51203-36330iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

51328BSUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-36020iXZB50..STD..GEN199301-201501

51329ASUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-36010iBB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50199301-201501

51441COVER, ENGINE UNDER, NO.1

main51405-36030iBB50..CBU..6F199907-200108

main51405-36031iBB50..GEN..6F200108-200608

main51410-36010iBB50..WC..CBU199705-199907

main51441-36240iBB50..EUR199605-199907

main51441-36250iHZB50,RZB40,50..CBU199301-199705

sub51441-36251

main51441-36251iBB50..EX;BB50..GEN..IV;BB43,58,HZB50,RZB40,50199705-199907

main51441-36252iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201501

main51441-36280iBB4#199301-199705

sub51441-36281

main51441-36281iBB40,42199705-199907

main51441-36282iBB42,BZB40,50199907-201501

main51441-36290iHZB50..TD199308-199605

sub51441-36291

main51441-36310iBB5#..TDEFI199907-200108

sub51441-36311

main51441-36311iXZB50..21S..WC200108-201501

main51441-36350iXZB50..21S201501

51442COVER, ENGINE UNDER, NO.2

main51406-36080iHZB50..ARL,EUR199301-200211

main51420-36010iBB50..WC..CBU199705-199907

main51442-36020iBB50..EUR199605-199907

main51442-36030iHZB50..TD199304-199605

51445BRACKET, ENGINE UNDER COVER

main51445-36040iRZB40..HRF..GCC199301-201501

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-36040iBB59,BZB50..EX;BB50..5F..TDEFI199301-201501

51448FBRACKET, OIL PAN PROTECTOR SIDE

main51448-36050iHZB50..ARL199301-200211

main51448-36060iBB50..EUR;BB50..WC..CBU199605-199907

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36030iHZB50..ARL199301-200211

main51453-36060iBB50..EUR;BB50..WC..CBU199605-199907

main51453-36070iBB50..IV..6F199907-201311

51967BHOOK, TRANSPORT, REAR RH

main51963-36060iBB4#,5#,HZB50,RZB40,50199301-201612

51968BHOOK, TRANSPORT, REAR LH

main51963-36060iBB4#,5#,HZB50,RZB40,50199301-201612

9010514092

main90105-14092

9010514093

main90105-14093

9011908162

main90119-08162

9011908A46

main90119-08A46

9011912170

main90119-12170

9017014026

main90170-14026

9046709013

main90467-09013

9046711038

main90467-11038

9161261030

main91612-61030

9163160616

main91631-60616

9462211400

main94622-11400

24 parts on this diagram · 7 diagrams in section
