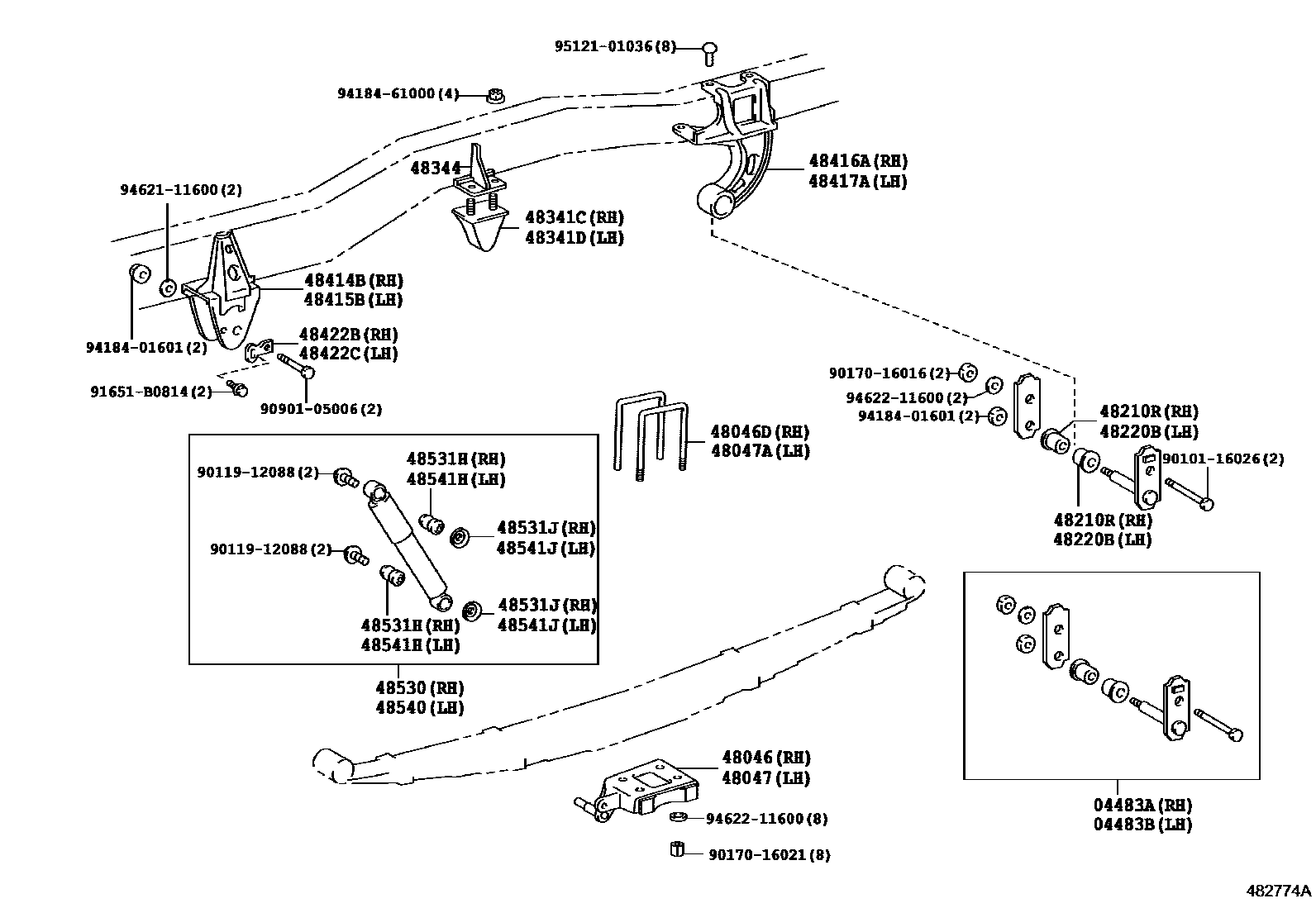

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 12-LEAF 0005 13-LEAF 0007 18-LEAF 0008 18-LEAF 0009 1W(STABILIZER) 0010 1

04483ASHACKLE KIT, REAR SPRING, RH

main04483-36080iBB4#,5#,HZB50,RZB40,50199301-199907

sub04483-36140

main04483-36120iBB42..LHD..HRF200408-201108

04483BSHACKLE KIT, REAR SPRING, LH

main04483-36080iBB4#,5#,HZB50,RZB40,50199301-199907

sub04483-36140

main04483-36120iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36240iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199907-200408

main48046-36260iHZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F199301-199907

main48046-36290iBB42,HZB50,RZB40,50..STD..GEN..5F199705-199712

W(8-LEAF REAR SPRING)

main48046-36292iBB42..WC..GCC199907-200408

W(8-LEAF REAR SPRING)

48046DBOLT, U(FOR REAR SPRING RH)

main90117-16011×2iBB50..RHD..IV200408-200608

main90117-16028×2iBB42,HZB50,RZB40,50..STD..GEN..5F199705-199712

W(8-LEAF REAR SPRING)

main90117-16041×2iBB50,HZB50..IV;HZB50..22S..4FC199301-199907

main90117-16042×2iTRB40,50..GEN200708-201501

2-LEAF

main90117-16053×2iBB42..GCC200408-201501

W(8-LEAF REAR SPRING)

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-36240iBB5#,HZB50..TD;BB42,43,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO)199301-199907

main48047-36260iHZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F199301-199907

main48047-36290iBB42,HZB50,RZB40,50..STD..GEN..5F199705-199712

W(8-LEAF REAR SPRING)

main48047-36292iHZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(8-LEAF REAR SPRING)

48047ABOLT, U(FOR REAR SPRING LH)

main90117-16011×2iBB50..RHD..6F199907-200105

main90117-16028×2iBB42,HZB50,RZB40,50..STD..GEN..5F199705-199712

W(8-LEAF REAR SPRING)

main90117-16041×2iBB50..LHD..IV..TDEFI199907-200408

main90117-16042×2iTRB40,50..GEN200708-201501

2-LEAF

main90117-16053×2iHZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S201501

W(8-LEAF REAR SPRING)

48210SPRING ASSY, REAR RH

main48210-3B800iRZB40..EX199705-199907

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3B840iRZB40..EX199907-200408

2-LEAF

main48210-3B850iBB42,43..17S199301-199907

2-LEAF

main48210-3B860iRZB40..GEN;RZB40..SRF..GCC200408-200708

2-LEAF

main48210-3B870iBB40,42..RHD..(ARL,GEN)199301-199907

2-LEAF

main48210-3B880iBB42,TRB40..LHD201501

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3B890iBB42..RHD200408-201501

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3C010iRZB40..SRF..WC..GEN199403-199505

2-LEAF,CHINA SPEC

main48210-3C020iBB42..RHD201501

2-LEAF,HEAVY DUTY SUSPENSION

main48210-3C030iBB50..WOC..5F199907-200108

3-LEAF

main48210-3C040iBB50..WOC..GEN;BB50,HZB50..RHD..IV199301-199907

3-LEAF

main48210-3C050iBB50,HZB50..LHD..EUR199301-199907

3-LEAF

main48210-3C060iHZB50..4FC199907-200108

3-LEAF

main48210-3C130iBB42,HZB50..RHD..STD..GEN..5F199705-199712

8-LEAF

main48210-3C131iBB42,HZB50..RHD201501

8-LEAF

main48210-3C140iBB42,HZB50,RZB40,50..LHD..STD..GEN199705-199712

8-LEAF

main48210-3C141iBB42..WOC..GCC;BB42,RZB40..22S..GEN199907-200108

8-LEAF

main48210-3C190iBB50..EX..CHI200008-200211

2-LEAF

main48210-3C210iBB42..LHD..HRF..WC199907-200008

2-LEAF,CHINA SPEC & HEAVY DUTY SUSPENSION

main48210-3C220iXZB59201501

2-LEAF

main48210-3C290iBB50..RHD..IV200408-200608

3-LEAF

48210RBUSH(FOR REAR SPRING SHACKLE LOWER RH)

main90385-23002×2iBB4#,5#,HZB50,RZB40,50199301-199907

48220SPRING ASSY, REAR LH

main48210-3B840iBZB40199907-200408

2-LEAF

main48210-3B850iRZB40..EX199907-200408

2-LEAF

main48210-3B860iBB42..RHD..HRF..WOC199907-200108

2-LEAF

main48210-3B870iRZB40..HRF..GCC200408-200602

2-LEAF

main48210-3B880iBB42..RHD201501

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3B890iBB42,RZB40..LHD..STD199705-199907

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3C010iBB42..RHD201501

2-LEAF,HEAVY DUTY SUSPENSION

main48210-3C020iHZB50,TRB50,XZB40,50..LHD..(GCC,GEN)201501

2-LEAF,HEAVY DUTY SUSPENSION

main48210-3C030iBB50..WOC..GEN;BB50,HZB50..RHD..IV199301-199907

3-LEAF

main48210-3C040iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-200105

3-LEAF

main48210-3C050iHZB50..4FC199907-200108

3-LEAF

main48210-3C060iBB50,HZB50..LHD..EUR199301-199907

3-LEAF

main48210-3C070iRZB40..EX199907-200408

2-LEAF,W(5.50F-16 DISC WHEEL)

main48210-3C130iBB42,HZB50,RZB40,50..LHD..STD..GEN199705-199712

8-LEAF

main48210-3C131iRZB40,50..GEN200408-200708

8-LEAF

main48210-3C140iBB42,HZB50..RHD..STD..GEN..5F199705-199712

8-LEAF

main48210-3C141iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

8-LEAF

main48210-3C200iRZB40..HRF..GEN199907-200012

2-LEAF,CHINA SPEC

main48210-3C210iXZB59200408-201501

2-LEAF

main48210-3C220iBB50,RZB40,50..STD..CHI200008-200211

2-LEAF

main48210-3C280iXZB50..RHD..IV200408-201311

3-LEAF

48220BBUSH(FOR REAR SPRING SHACKLE LOWER LH)

main90385-23002×2iXZB50..STD..GEN200408-200803

48341CBUMPER, REAR SPRING, NO.2 RH

main48306-36080iBB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50199301-199907

main48306-36081iBB43;BB50..WOC..GEN..IV199711-199907

main48306-36090iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501

48341DBUMPER, REAR SPRING, NO.2 LH

main48306-36080iBB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50199301-199907

main48306-36081iBB43;BB50..WOC..GEN..IV199711-199907

main48306-36090iXZB50..STD..GEN200408-200803

48344STOPPER, BUMPER, REAR

main48344-36420×2iBB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50199301-199903

main48344-36450iBB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50199903-199907

RH

main48345-36060iXZB50..IV200408-201311

LH

48414BBRACKET, SPRING, NO.3 RH

main48414-36320iHZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC)199301-199705

main48414-36330iBB50..WOC..CBU..TD;BB50,59,BZB40,50..5F..(LPG,TDEFI)199907-200408

ROUGH ROAD AREA SPEC

48415BBRACKET, SPRING, NO.3 LH

main48415-36100iRZB50..GCC;RZB40..SRF..GCC200408-200708

main48415-36110iBB4#,HZB50,RZB40,50..ARL,GEN,SCO199301-199705

48416ABRACKET, SPRING, NO.4 RH

main48416-36290iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

ROUGH ROAD AREA SPEC

sub48416-36291

main48416-36300iHZB50..LHD..HRF..STD..GEN199907-200408

JORDAN SPEC

sub48416-36301

48417ABRACKET, SPRING, NO.4 LH

main48417-36160iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

ROUGH ROAD AREA SPEC

sub48417-36161

main48417-36170iBB50..6F..TDEFI;BB42,HZB50..WC..GCC199907-200408

JORDAN SPEC

sub48417-36171

48422BSUPPORT, REAR SPRING PIN, RH

main48422-36030iBB4#,5#,HZB50,RZB40,50199301-199907

main48422-37010iBB50,HZB50,RZB40,50..ARL,CHI200208-200211

48422CSUPPORT, REAR SPRING PIN, LH

main48422-36030iBB4#,5#,HZB50,RZB40,50199301-199907

main48422-37010iBB50,HZB50,RZB40,50..ARL,CHI200208-200211

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80154iBB4#,50,HZB50,RZB40,50199301-199703

MARK 48531-36160

main48531-80581iBB4#,5#,HZB50,RZB40,50199703-199907

MARK 48531-36160

main48531-80793iXZB50..21S201501

MARK 48531-36210

48531HBUSH(FOR REAR SHOCK ABSORBER RH)

main90385-19006×2iBB4#,5#,HZB50,RZB40,50199301-199907

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90948-03011×2iBB4#,5#,HZB50,RZB40,50199301-199907

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80154iBB4#,50,HZB50,RZB40,50199301-199703

MARK 48531-36160

main48531-80581iXZB50..STD..GEN200408-200803

MARK 48531-36160

main48531-80793iXZB50..21S201501

MARK 48531-36210

48541HBUSH(FOR REAR SHOCK ABSORBER LH)

main90385-19006×2iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90948-03011×2iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

9010116026

main90101-16026

9011912088

main90119-12088

9017016016

main90170-16016

9017016021

main90170-16021

9090105006

main90901-05006

91651B0814

main91651-B0814

9418401601

main94184-01601

9418461000

main94184-61000

9462111600

main94621-11600

9462211600

main94622-11600

9512101036

main95121-01036

36 parts on this diagram · 8 diagrams in section
