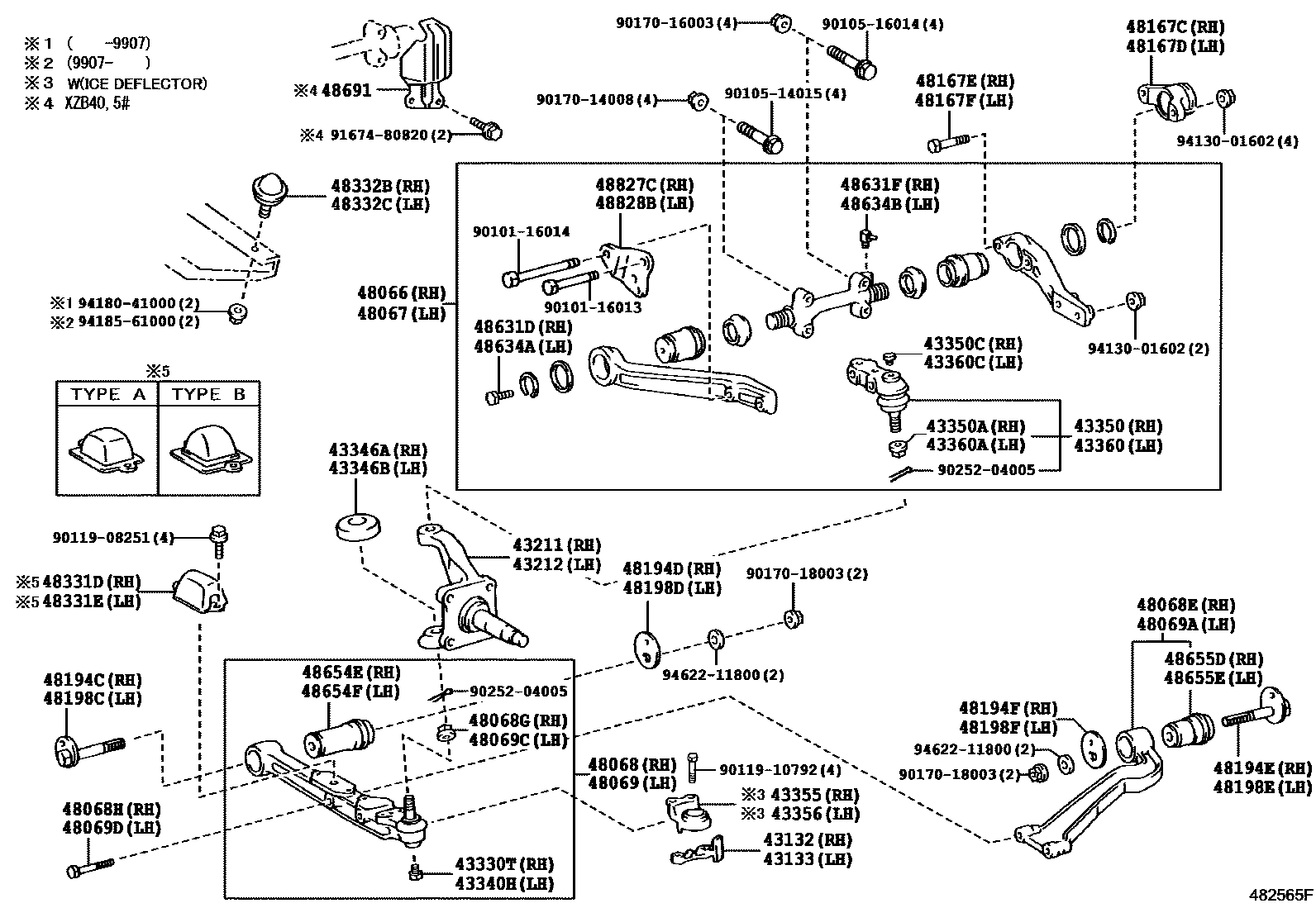

FRONT AXLE ARM & STEERING KNUCKLE

43132STOPPER, STEERING KNUCKLE, RH

main43132-36070iXZB59200104-201501

main43132-36080iXZB50..STD..GEN199301-201501

sub43132-36081

43133STOPPER, STEERING KNUCKLE, LH

main43133-36030iXZB59200104-201501

main43133-36040iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

sub43133-36041

43211KNUCKLE, STEERING, RH

main43211-36140iBB50..WC..CBU199705-199907

main43211-36150iBB50..IV;BB50..EX;BB4#,58,HZB50,RZB40,50199301-199907

main43211-36900iBB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN199907-200303

sub43211-36902

sub45611-36241

main43211-36901iBB50..CBU..6F199907-200303

W(ABS)

sub43211-36903

sub45611-36241

main43211-36902iBB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)200104-200310

sub43211-36905

main43211-36903iBB50..6F200303-200310

W(ABS)

sub43211-36906

main43211-36905iBB58,59;BZB50..EX;BB50..5F..TDEFI200310-201501

main43211-36906iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC200310-201501

W(ABS)

main43211-36906iBZB40,50,XZB40,5#..GEN201108-201501

43212KNUCKLE, STEERING, LH

main43212-36110iBB50..WC..CBU199705-199907

main43212-36120iBB50..IV;BB50..EX;BB4#,58,HZB50,RZB40,50199301-199907

main43212-36900iBB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN199907-200303

sub43212-36902

sub45612-36151

main43212-36901iBB50..IV..6F199907-200303

W(ABS)

sub43212-36903

sub45612-36151

main43212-36902iBB59200104-200310

sub43212-36905

main43212-36903iBB50..6F200303-200310

W(ABS)

sub43212-36906

main43212-36905iBB42,HZB50,TRB40,50,XZB40,50..26S,30S200310-201501

main43212-36906iXZB50..IV200310-201501

W(ABS)

main43212-36906iBZB40,50,XZB40,5#..GEN201108-201501

43330TPLUG (FOR FRONT LOWER BALL JOINT RH)

main90345-06014iBB4#,5#,HZB50,RZB40,50199301-201501

43340HPLUG (FOR FRONT LOWER BALL JOINT LH)

main90345-06014iBB4#,5#,HZB50,RZB40,50199301-201501

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-36010iBB4#,5#,HZB50,RZB40,50199301-201501

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-36010iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39095iBB4#,5#,HZB50,RZB40,50199301-201501

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-20001iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199907-201501

main94146-72000iBB4#,5#,HZB50,RZB40,50199301-199907

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iBB4#,5#,HZB50,RZB40,50199301-201501

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-36020iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC199301-200701

*EX-USSR

main43355-36020iHZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN199505-199907

COLD SPEC

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-36020iBB42,HZB50..LHD..SRF..WOC..GEN199301-200701

*EX-USSR

main43355-36020iHZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN199505-199907

COLD SPEC

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39095iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-20001iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199907-201501

main94146-72000iBB4#,5#,HZB50,RZB40,50199301-199907

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-39015iBB4#,50,HZB50,RZB40,50199301-199705

sub48601-39025

main48601-39025iBB4#,5#,HZB50,RZB40,50199705-201501

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-39015iBB4#,50,HZB50,RZB40,50199301-199705

sub48602-39025

main48602-39025iBB4#,5#,HZB50,RZB40,50199705-201501

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-39015iBB4#,5#,HZB50,RZB40,50199301-201501

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48607-36010iXZB50..IV199301-201501

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90171-22001iBB4#,5#,HZB50,RZB40,50199301-201501

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90901-01002iBB4#,5#,HZB50,RZB40,50199301-201501

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-39015iBB4#,5#,HZB50,RZB40,50199301-201501

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48607-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90171-22001iBB4#,5#,HZB50,RZB40,50199301-201501

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90901-01002iBB4#,5#,HZB50,RZB40,50199301-201501

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-36020iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90101-16012iBB4#,5#,HZB50,RZB40,50199301-201501

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90101-16012iXZB50..IV199301-201501

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-36010iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-36020iBB42..LHD..HRF199301-201501

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main48190-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48194FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH

main48198-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-36010iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-36020iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main48190-36020iXZB50..STD..GEN199301-201501

48198FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH

main48198-36020iXZB50..IV199301-201501

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-36140iBB42,BZB40,50,TRB40,XZB59;XZB40,50..(17S,20S,21S)..(GEN,TAIW)199301-201501

TYPE A:REFER TO ILLUSTRATION

main48304-36170iBB50..RHD;BB50..LHD..IV;BB58,BZB50..21S,23S199301-201501

TYPE B:REFER TO ILLUSTRATION

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-36140iBB42,BZB40,50,TRB40,XZB59;XZB40,50..(17S,20S,21S)..(GEN,TAIW)199301-201501

TYPE A:REFER TO ILLUSTRATION

main48304-36170iBB50..IV;BB50..EX;BB58,HZB50,RZB50199301-201501

TYPE B:REFER TO ILLUSTRATION

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-36030iBB4#,5#,HZB50,RZB40,50199301-201501

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-36030iBB4#,5#,HZB50,RZB40,50199301-201501

48631DPLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main90345-06014iBB4#,HZB50199301-201501

48631FFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main96459-00609iBB4#,5#,HZB50,RZB40,50199301-201501

48634APLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main90345-06014iBB4#,5#,HZB50,RZB40,50199301-201501

48634BFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main96459-00609iBB4#,5#,HZB50,RZB40,50199301-201501

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-36010iXZB50..STD..GEN200608-201501

48827CBRACKET, STABILIZER, NO.2 RH

main48827-36060iBB43;BB50..WOC..GEN..IV199711-201501

48828BBRACKET, STABILIZER, NO.2 LH

main48828-36040iBB43;BB50..WOC..GEN..IV199711-201501

9010116013

main90101-16013

9010116014

main90101-16014

9010514015

main90105-14015

9010516014

main90105-16014

9011908251

main90119-08251

9011910792

main90119-10792

9017014008

main90170-14008

9017016003

main90170-16003

9017018003

main90170-18003

9025204005

main90252-04005

9167480820

main91674-80820

9413001602

main94130-01602

9418041000

main94180-41000

9418561000

main94185-61000

9462211800

main94622-11800

68 parts on this diagram · 1 diagram in section
