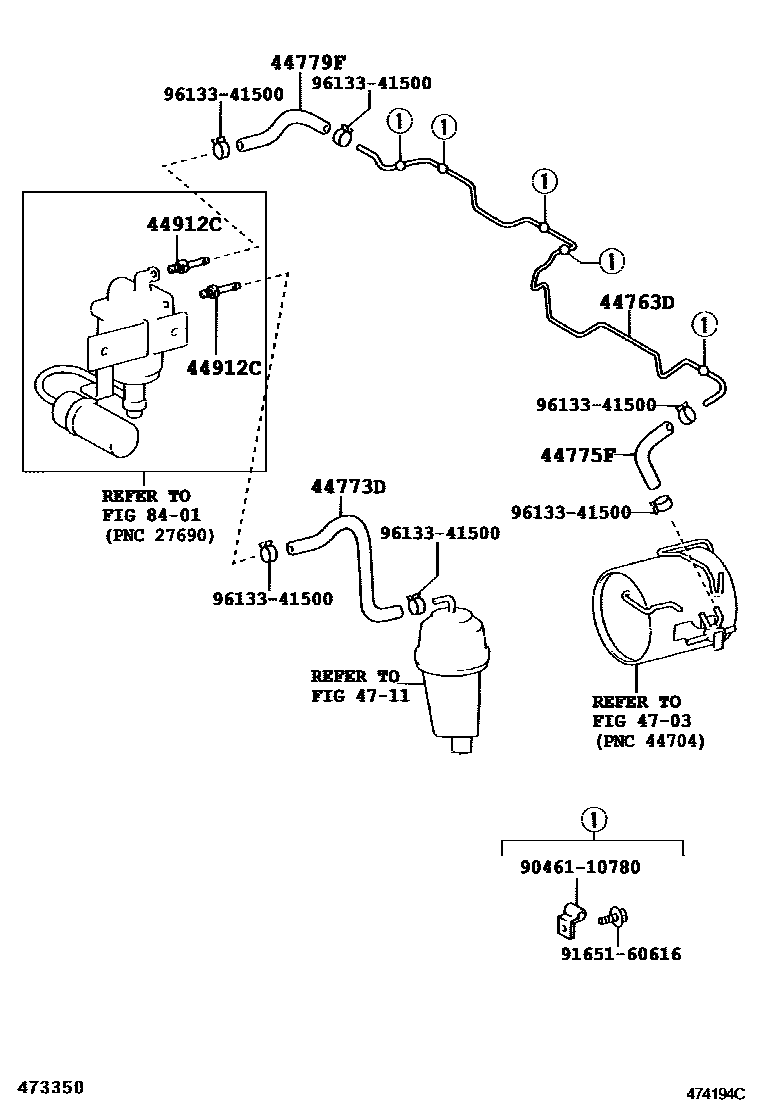

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

44763DTUBE, HOSE TO HOSE, NO.1

main44763-36040iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-200512

main44763-36041iBB50,59..RHD..(ARL,GEN)200512-201501

main44763-36042iBB42,HZB50,XZB40,5#..RHD201501

main44763-36050iBB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)199301-201501

main44763-36051iBB42,HZB50,XZB40,50..LHD201501

main44763-36070iBB50..RHD..IV..TDEFI199605-201311

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36160iBB4#,5#,HZB50199301-200703

sub44773-36180

main44773-36170iXZB40,5#200608-201501

main44773-36180iBB42..LHD..HRF200704-201501

44775FHOSE, WAY TO CONNECTOR

main44775-36030iBB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-200703

sub44775-36100

main44775-36100iXZB50..WOC..CBU200704-201501

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36100iBB4#,5#,HZB50199301-200703

sub44779-36120

main44779-36100iXZB5#200608-200703

NO.1

sub44779-36120

main44779-36110iXZB40,5#200608-201501

NO.2

main44779-36120iXZB50..IV200704-201501

NO.1

main44779-36120iBB42..LHD..HRF200704-201108

main44779-36121iXZB40,5#201501

NO.1

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBB4#,5#,HZB50199301-201501

4703

4711

8401

9046110780

main90461-10780

9165160616

main91651-60616

9613341500

main96133-41500

11 parts on this diagram · 4 diagrams in section
