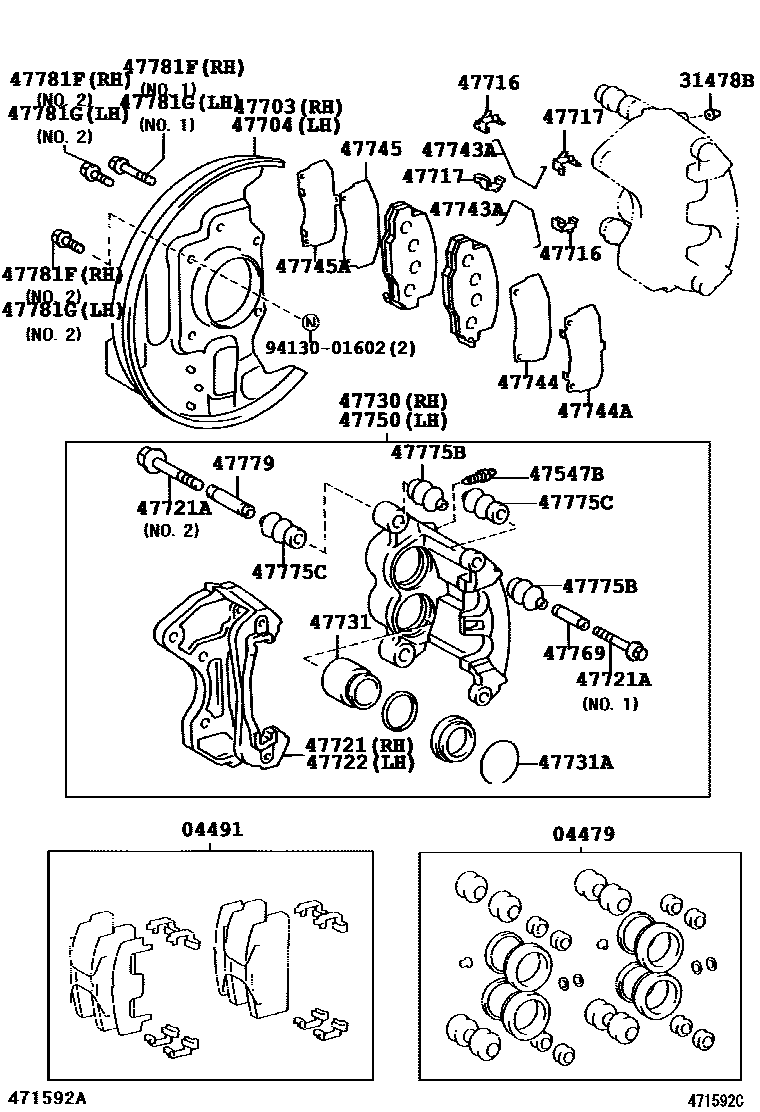

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-36020iBB4#,5#,HZB50,RZB40,50199301-201501

04491PAD KIT, DISC BRAKE, FRONT

main04491-36070iBB4#,HZB50,RZB40,50..CBU199301-199505

sub04465-36020

main04491-36080iHZB50..TD199301-199505

sub04465-36030

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBB4#,5#,HZB50,RZB40,50199301-201501

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iBB4#,5#,HZB50,RZB40,50199301-201501

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36040iBB4#,5#,HZB50,RZB40,50199301-199907

main47703-36060iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-201501

sub47703-36090

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36040iBB4#,5#,HZB50,RZB40,50199301-199907

main47704-36060iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-201501

sub47704-36090

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020iBZB40,50,XZB40199301-201501

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020iBB4#,5#,HZB50,RZB40,50199301-201501

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36030iBB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S199301-201501

main47721-36040iBB59;BB50..(EUR,GEN)..6F199301-201501

main47721-36040iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08992iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GE199301-201501

*8-1.25PX62-30,NO.1

main90119-12256iXZB50..IV199301-201501

*12-1.25PX75-30,NO.2

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36030iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN199301-201501

main47722-36040iXZB50..IV199301-201501

main47722-36040iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36030iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

main47730-36040iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

main47730-36040iBZB40,50,XZB40,50..GEN199301-201501

47731PISTON, FRONT DISC BRAKE

main47731-36020iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iBB4#,5#,HZB50,RZB40,50199301-200408

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020iBB4#,5#,HZB50,RZB40,50199301-201501

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47742-36010iBB4#,5#,HZB50,RZB40,50199301-199907

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47745-36010iBB4#,5#,HZB50,RZB40,50199301-199907

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-36010iBB4#,5#,HZB50,RZB40,50199301-199907

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47745-36010iBB4#,5#,HZB50,RZB40,50199301-199907

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36030iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-201501

main47750-36040iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

main47750-36040iBB50..STD..CBU;BB50,HZB50..EUR199301-201501

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030iXZB50..IV199301-201501

47775BBOOT, BUSH DUST, NO.1

main47775-36040iXZB50..WOC..CBU199301-201501

47775CBOOT, BUSH DUST, NO.2

main47775-36050iBB4#,5#,HZB50,RZB40,50199301-201501

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90105-16044iBB4#,5#,HZB50,RZB40,50199301-201501

NO.1

main90105-16045iBB42..LHD..HRF199301-201501

NO.2

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90105-16044iBZB40,50,XZB40199301-201501

NO.1

main90105-16045iBZB40,50,XZB40199301-201501

NO.2

9413001602

main94130-01602
