BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0010 1W(ABS) 0011 1 0012 1 0013 1W/O(ABS) 0015 1W(ABS) 0017 1 0019 1 0020 1 0021 1 0022 1W(ABS)

1905

44610BOOSTER ASSY, BRAKE

main44610-36440iBB42..RHD199301-201501

main44610-36450iBB42,RZB40..LHD199301-201501

main44610-36480iBB42..RHD199301-201501

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main44610-36490iBB42..LHD..HRF199301-201501

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main44610-36500iBZB50..EX;BB50..5F..TDEFI199301-201501

main44610-36500iHZB50..4FC199705-199907

W(RR AUTO ADJUSTER)

main44610-36510iHZB50,XZB50..LHD..(GCC,GEN)199301-201501

main44610-36520iBB50,59,BZB50..EX199301-201501

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main44610-36520iHZB50..WC..GEN..4FC199505-199907

main44610-36530iXZB50..TAIW199301-201501

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main44610-36540iHZB50..ARL199301-199907

main44610-36550iBB50,HZB50..RHD..IV199301-199907

main44610-36560iBB50,HZB50..LHD..EUR199301-199907

main44610-36600iXZB50..GEN..4FC200708-201108

W(FRONT DISC BRAKE)

main44610-36610iHZB50..ARL199907-200304

main44610-36620iXZB50..RHD..IV200608-201501

main44610-36620iBZB40,50,XZB40,5#..RHD199907-200608

W(ABS)

main44610-36630iXZB50..LHD..IV199907-201311

main44610-36630iTRB50..GCC;HZB50,XZB50..LHD201209-201501

W(ABS)

main44610-36630iXZB50..TAIW200908-201501

JORDAN SPEC

main44610-36640iXZB50..GEN..4FC200708-201108

44704RESERVOIR SUB-ASSY, VACUUM

main44704-36260iBB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F199705-201501

main44704-36270iBB42..LHD..HRF199301-201501

main44704-36280iBB50,HZB50..EUR199301-199907

44729GASKET, VACUUM TUBE

main44729-36020iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22120iRZB40,50..CHI199309-201501

44730JWAY(FOR BOOSTER VACUUM)

main90413-09037iHZB50..ARL199301-201501

main90413-09040iBZB40,50..STD200108-201501

main90414-09001iXZB50..WOC..CBU199301-201501

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

44731CBRACKET, BRAKE BOOSTER

main44731-35120iRZB40..GEN;RZB40..SRF..GCC199301-201501

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iBB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN199301-201501

44743UNION(FOR VACUUM PUMP)

main90405-09131iBB40,42199301-201501

main90405-09142iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199301-201501

main90405-09181iBB50..CHI199605-201501

main90405-09182iBB5#..TDEFI199907-200608

44754CBRACKET, VACUUM TUBE, NO.1

main44754-36090iBB50..EX;BB50..LHD;BB4#,58,HZB50199301-201501

44754DBRACKET, VACUUM TUBE, NO.2

main44754-36110iBZB40,50..STD199301-201501

44754EBRACKET, VACUUM TUBE, NO.3

main44754-36120iBB50..STD..WC..IV..5F199301-201501

main44754-36150iBB50..RHD..IV199907-201501

main44754-36160iBB50..ARL;BB50,58..LHD..TDEFI199907-201501

44754FBRACKET, VACUUM TUBE, NO.4

main44754-36130iBB4#,5#,HZB50199301-201501

44754GBRACKET, VACUUM TUBE, NO.5

main44754-36140iBB42,BZB40,50,HZB50,XZB40,5#199301-201501

44756BRACKET, VACUUM RESERVOIR

main44757-36060iBB4#,5#,HZB50199301-201501

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-36140iBB4#,HZB50199301-199705

main44761-36150iBB50..RHD..IV199605-199907

main44761-36160iBB50..LHD..EUR199605-199907

main44761-36180iBB40,42,HZB50199705-201501

main44761-36190iBB50,59..EX..TDEFI;BB50..STD..GEN..CBU..5F199705-201501

main44761-36210iBB50..ARL;BB50,58..LHD..TDEFI199907-200608

main44761-36240iBB50..RHD..IV..TDEFI199907-200608

main44761-36250iBZB50..EX200108-201501

main44761-36261iXZB50..STD..GEN200608-200908

main44761-36262iXZB40,5#200908-201501

main44761-36280iXZB50..RHD..IV200608-200908

main44761-36281iXZB50..RHD..IV200908-201311

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-36480iBB4#,HZB50199301-199705

main44764-36490iBB50..RHD..IV199605-199907

main44764-36510iBB50..LHD..EUR199605-199907

main44764-36520iBB4#..17S,22S;BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199705-201501

main44764-36540iBB50..ARL;BB50,58..LHD..TDEFI199907-200608

main44764-36570iBB50..RHD..IV..TDEFI199907-200608

main44764-36590iBZB40,50..STD200108-201501

main44764-36600iXZB50..WOC..CBU200608-201501

main44764-36610iXZB50..LHD..IV200608-201501

main44764-36620iXZB50..RHD..IV200608-201311

44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

main44765-36180iBB4#..RHD199301-199705

main44765-36190iBB42..LHD199301-199705

main44765-36200iHZB50..RHD..TD199301-199605

main44765-36210iHZB50..RHD..DSL199301-199705

main44765-36220iHZB50..LHD..TD199301-199605

main44765-36230iHZB50,RZB40,50..LHD..CBU199301-199705

main44765-36250iBB43,50..RHD..CBU199705-199907

main44765-36270iBB50..RHD..IV199605-199907

main44765-36280iBB50..LHD..EUR199605-199907

main44765-36290iHZB50..RHD199705-199907

main44765-36300iBB5#..STD..GEN199705-201501

main44765-36310iRZB40,50..CHI199705-201501

main44765-36320iBB42..RHD..WC;BB42..RHD..SRF199705-201501

main44765-36330iBB42..LHD199705-201501

main44765-36340iHZB50..RHD..HRF..STD..WC..GEN..5F199907-200908

main44765-36350iBB43,50..RHD..CBU199907-200108

sub44765-36351

main44765-36351iBB50..EX..IV200104-200908

main44765-36360iBZB40,50200108-201501

main44765-36370iHZB50..RHD;XZB50..4FC200908-201501

main44765-36380iXZB40,5#..RHD..5F200908-201501

44771HOSE, VACUUM TUBE CONNECTOR

main44771-36240iBB50,58..LHD..TDEFI199301-200705

sub44771-36310

main44771-36250iBB4#..RHD199301-199705

main44771-36260iBB42..LHD..HRF199301-201501

main44771-36300iBB42..RHD199705-201501

main44771-36310iRZB40,50200704-201501

main90445-17141iXZB50..WOC..CBU199907-201501

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-36090iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC199301-200703

sub44772-36100

main44772-36100iBB42,HZB50;XZB50..4FC200704-201501

44774HOSE, UNION TO CONNECTOR TUBE

main44774-36220iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-201501

main44774-36230iHZB50..RHD199301-199907

main44774-36240iRZB40,50199309-199907

main44774-36250iHZB50..LHD199301-201501

main44774-36280iBB50199605-199705

sub44774-36290

main44774-36290iBB43,5#199705-201501

main44774-36300iHZB50..RHD199907-201501

main44774-36310iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-200705

sub44774-36410

main44774-36320iBB5#..TDEFI199907-200608

main44774-36360iBZB40,50200108-201501

main44774-36380iXZB5#200608-200703

sub44774-36400

main44774-36391iTRB40,50200708-201501

main44774-36400iXZB50..STD..GEN200704-200908

main44774-36410iRZB40,50200706-200708

main44774-36430iXZB50..IV200908-201501

44775CHOSE, CONNECTOR TO WAY

main44775-36030iXZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)199301-200703

sub44775-36100

main44775-36040iHZB50..RHD..TD199304-199605

CKD SPEC

main44775-36100iXZB50..STD..GEN200704-201501

44775EHOSE, WAY TO CONNECTOR

main44775-36030iBB50..WOC..6F;BB50..STD..WC..IV199301-200703

sub44775-36100

main44775-36060iXZB50..LHD..IV;XZB5#..ARL,GEN,TAIW200608-200703

sub44775-36090

main44775-36070iXZB50..RHD..IV200608-201311

main44775-36090iXZB50..WOC..CBU200704-201501

main44775-36100iBB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50200704-201501

44776HOSE, BRAKE BOOSTER

main44776-36090iBB4#,50,HZB50..RHD199301-199907

sub44776-36170

main44776-36100iBB58199301-201501

main44776-36120iBB50..RHD..6F200408-201501

main44776-36120iBB50..RHD..6F..TDEFI199907-200408

W(ABS)

main44776-36140iBB50..LHD..IV..6F199907-200703

sub44776-36160

main44776-36160iXZB50..TAIW200908-201501

JORDAN SPEC

main44776-36160iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC201209-201501

W(ABS)

main44776-36160iXZB50..LHD..IV200704-201311

main44776-36170iHZB50..ARL199907-201501

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-36100iBB42,HZB50199301-201501

4710

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60010iBB50..STD..WC..IV..5F199907-200908

main47289-60010iHZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

NO.1

main47289-60010iHZB50..4FC199705-199907

W(RR AUTO ADJUSTER)

main47289-60020iHZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

NO.2

8401

9017906161

main90179-06161

9017908038

main90179-08038

9017908233

main90179-08233

9046110780

main90461-10780

9046400311

main90464-00311

9046400682

main90464-00682

9094901916

main90949-01916

9161160814

main91611-60814

9165160616

main91651-60616

91651B0820

main91651-B0820

9613341500

main96133-41500

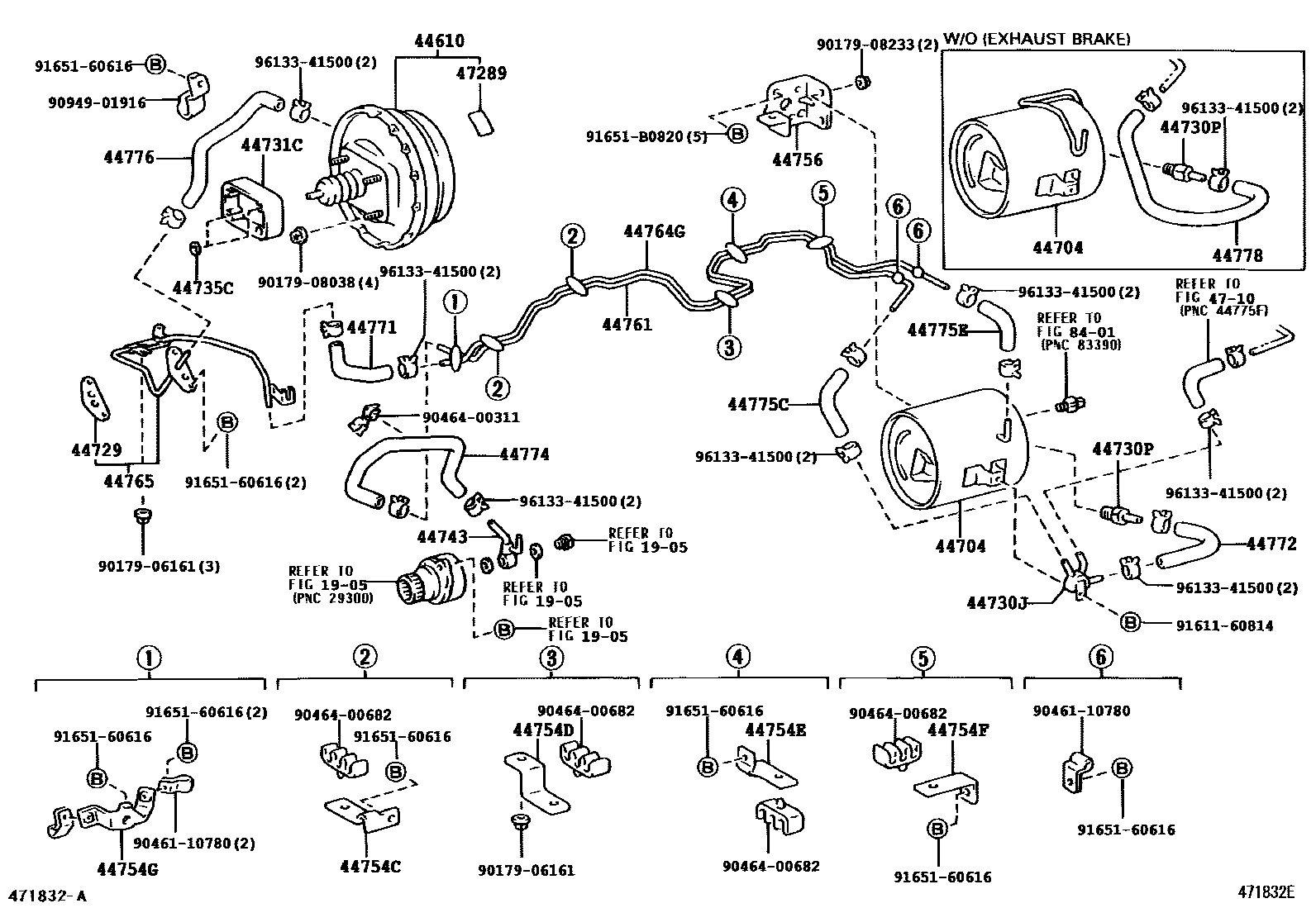

40 parts on this diagram · 17 diagrams in section
