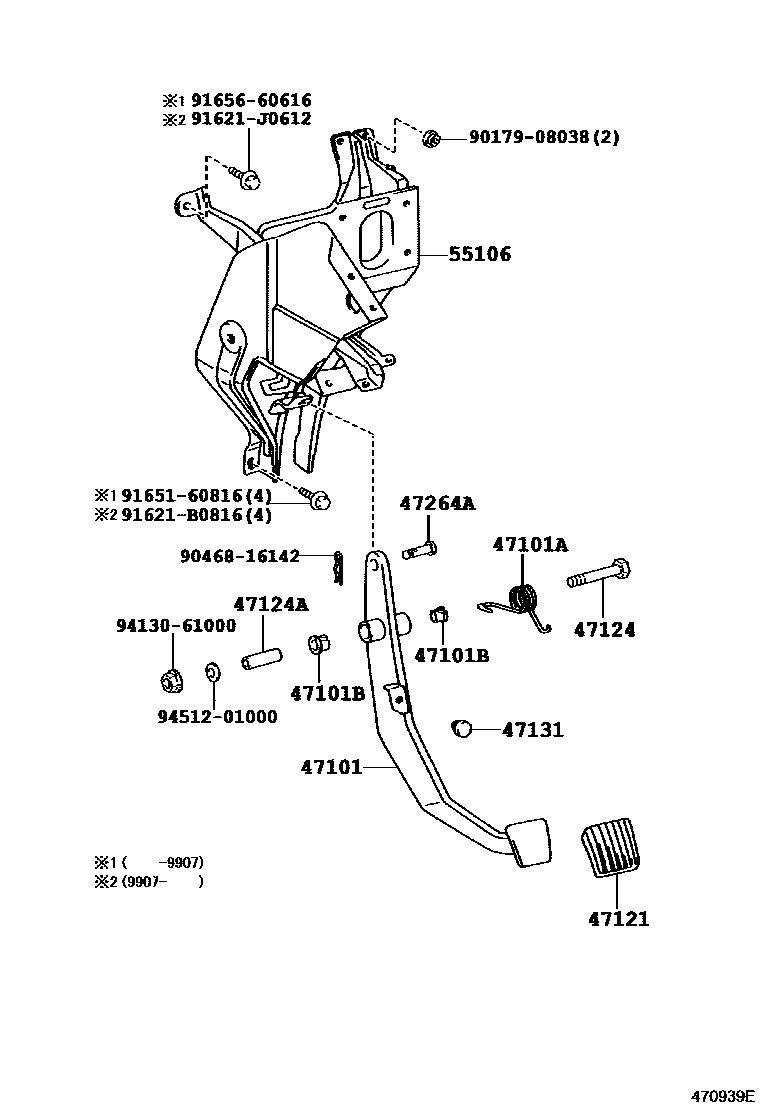

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36130iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iBB4#,5#,HZB50,RZB40,50199301-201501

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBZB50..EX;BB5#..TDEFI199308-201501

main90386-13015iBB4#,HZB50199301-199308

47121PAD, BRAKE PEDAL

main31321-14020iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

47124SHAFT, BRAKE PEDAL

main91121-61070iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBB4#,5#,HZB50,RZB40,50199301-201501

47264APIN(FOR PUSH ROD)

main90240-10085iBB4#,5#,HZB50,RZB40,50199301-201501

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-36010iBB40,42,HZB50..RHD..DSL199301-199907

main55106-36011iHZB50..ARL199907-200408

main55106-36020iBB43,50,HZB50..RHD..TD199301-199907

main55106-36021iBB50,59,BZB40,50..RHD..(LPG,TDEFI)199907-200408

main55106-36030iRZB40,50..CHI199301-200408

main55106-36040iBB5#,HZB50..LHD..TD199301-200408

main55106-36050iXZB50..4FC;BB42,HZB50..RHD200408-201501

main55106-36060iXZB59;BZB40,50,XZB40..STD;XZB50..RHD..(20S,21S)..WC..5F200408-201501

main55106-36070iRZB40..HRF..GCC200408-201501

main55106-36080iXZB50..LHD..IV200408-201501

9017908038

main90179-08038

9046816142

main90468-16142

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9165160816

main91651-60816

9165660616

main91656-60616

9413061000

main94130-61000

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
