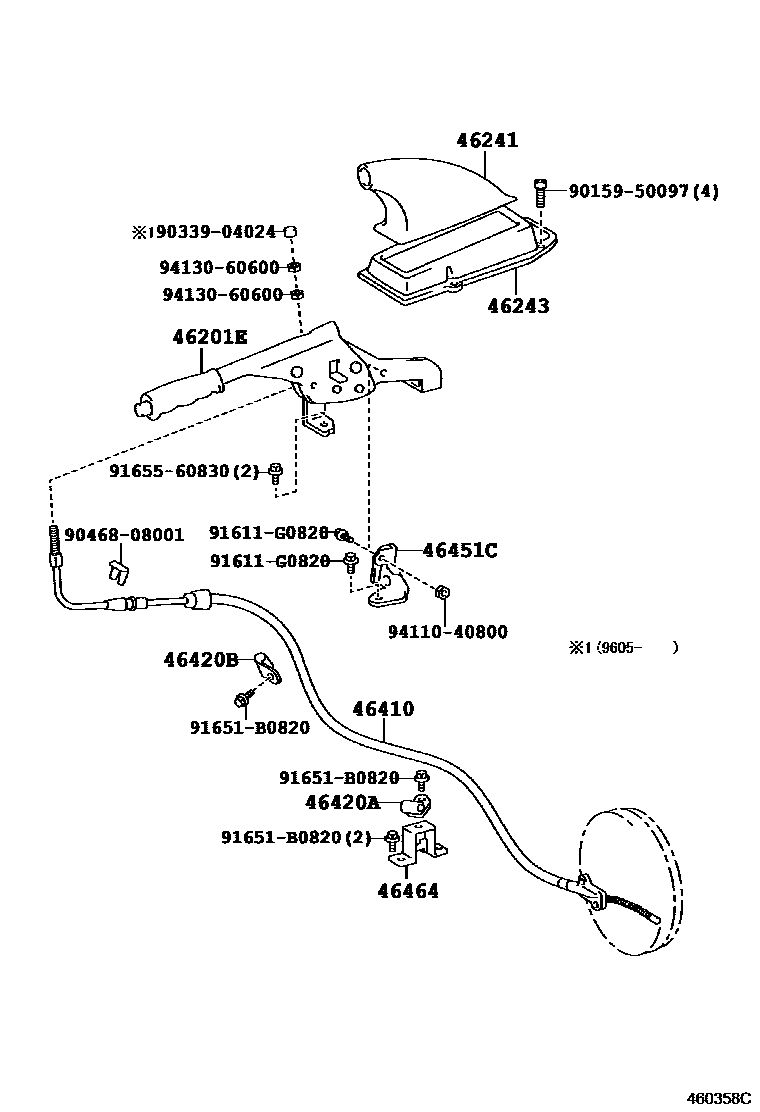

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1 0005 1 0010 1 0012 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-36022-E1iBB50,HZB50..EUR199301-199907

GRAIGE,TRIM4#

sub46210-36022

main46210-36040-B1iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#200108-201612

MD.CHARCOAL,TRIM1#

sub46210-36040

main46210-36040-E0iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-200108

GRAIGE,TRIM4#

sub46210-36040

46241BOOT, PARKING BRAKE LEVER

main46241-36010-E0iBB50,HZB50..EUR199301-199907

GRAIGE,TRIM4#

sub46241-36010

main46241-36020-B1iBB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)200108-201612

MD.CHARCOAL,TRIM1#

main46241-36020-E0iBB4#,50,HZB50..RHD..CBU199301-200108

GRAIGE,TRIM4#

main46241-36030-B1iBB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..LHD..CBU200105-201612

MD.CHARCOAL,TRIM1#

main46241-36030-E0iBB50..STD..WC..IV..5F199301-200108

GRAIGE,TRIM4#

46243COVER, PARKING BRAKE LEVER

main46243-36010-E0iBB50,HZB50..EUR199301-199907

GRAIGE,TRIM4#

sub46243-36010

main46243-36020-E0iBB4#,50,HZB50..RHD..CBU199301-200007

GRAIGE,TRIM4#

sub46243-36021

main46243-36021-B1iBB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub46243-36021

main46243-36021-E0iBB4#,50,HZB50..RHD..(4FC,5F)200007-200108

GREIGE,TRIM4#

sub46243-36021

main46243-36030-E0iBB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)199301-200007

GRAIGE,TRIM4#

sub46243-36031

main46243-36031-B1iBB50,RZB40,50..CHI200105-201612

MD.CHARCOAL,TRIM1#

sub46243-36031

main46243-36031-E0iBB50..STD..WC..IV..5F200007-200108

GREIGE,TRIM4#

sub46243-36031

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36370iBB42,BZB40..RHD199301-201501

main46410-36380iBB42..LHD199301-201501

main46410-36410iBB50,59,BZB50..5F..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F199301-201501

main46410-36420iBB50..WOC..5F199301-201501

main46410-36430iHZB50..4FC199505-200108

main46410-36440iBB50,58..LHD..TDEFI199301-200608

main46410-36450iBB50,HZB50..RHD..IV199301-199907

main46410-36460iBB50,HZB50..LHD..EUR199301-199907

main46410-36470iRZB40..HRF..GCC199309-201501

main46410-36480iRZB50..CHI199309-201501

main46410-36510iBB50..RHD..6F199907-200608

main46410-36530iXZB40200803-201501

main46410-36540iXZB50..RHD..IV200608-201501

main46410-36590iXZB50..TAIW200608-201501

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01839iBB42..LHD..HRF199301-201501

main90949-01B36iXZB50..IV200608-201501

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01841iBB42,BZB40,50,HZB50,XZB40,5#..RHD199301-201501

main90949-01842iBB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN199301-201501

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-36030iBB50,HZB50..EUR199301-199907

main46451-36060iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-201501

46464PLATE, CABLE CLAMP SUPPORT

main46464-36010iBB4#,5#,HZB50,RZB40,50199301-199902

main46464-36020iBB4#,50,HZB50..RHD199902-201501

main46464-36030iBB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F199902-201501

9015950097

main90159-50097

9033904024

main90339-04024

9046808001

main90468-08001

91611G0820

main91611-G0820

91651B0820

main91651-B0820

9165560830

main91655-60830

9411040800

main94110-40800

9413060600

main94130-60600

16 parts on this diagram · 6 diagrams in section
