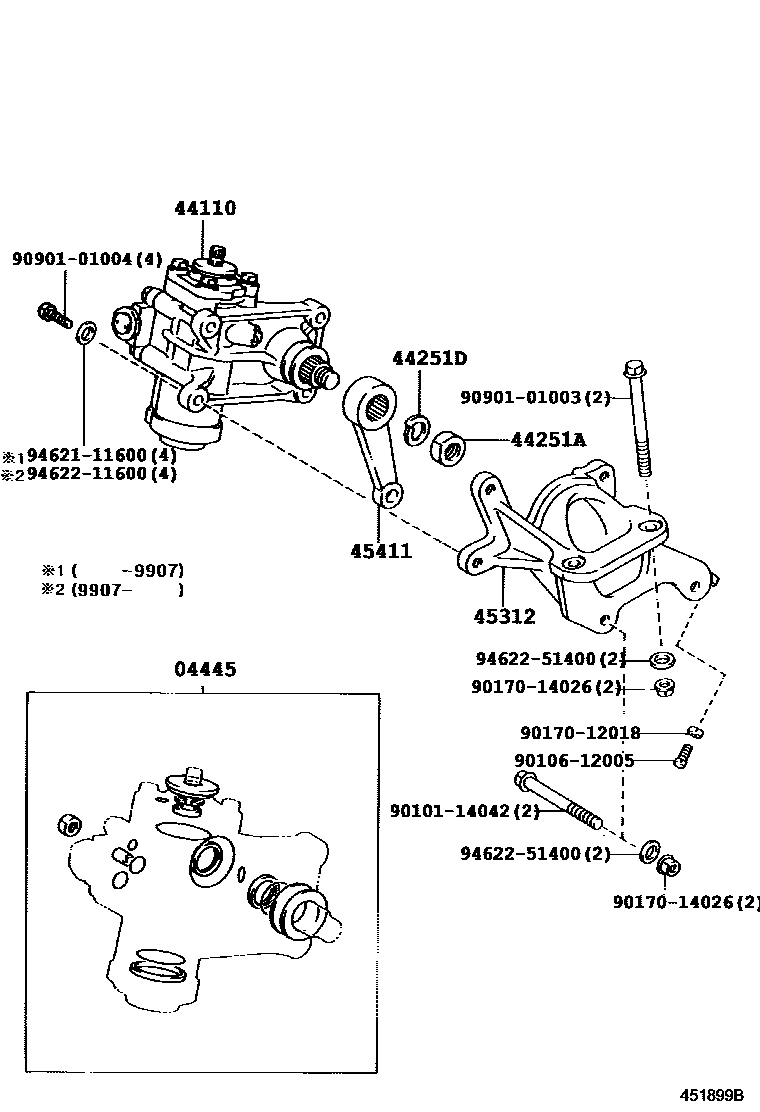

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-36100iBB4#,5#,HZB50,RZB40,50199301-199907

main04445-37040iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

44110GEAR ASSY, POWER STEERING

main44110-36300iBB4#,50,HZB50..RHD199301-199907

main44110-36320iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main44110-36350iBB4#,50,HZB50..RHD199907-200011

sub44110-36370

main44110-36360iBB42,5#,HZB50,RZB40,50..LHD199907-200011

sub44110-36361

main44110-36361iRZB50;RZB40..GEN;RZB40..SRF..GCC200011-201501

main44110-36370iBB50..RHD..6F200011-201501

44251ANUT, CASTLE(FOR PITMAN ARM)

main90170-30001iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

44251DWASHER(FOR PITMAN ARM)

main90204-30040iXZB50..IV199301-201501

45312BRACKET, STEERING GEAR HOUSING

main45312-36210iBB4#,50,HZB50..RHD199301-199907

main45312-36220iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main45312-36240iBB42,BZB40,50,HZB50,XZB40,5#..RHD199907-201501

main45312-36250iRZB40..HRF..GCC199907-201501

45411ARM, PITMAN

main45411-36570iBB4#,50,HZB50..RHD199301-199907

main45411-36580iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main45411-36610iBZB50..EX;BB50,59..RHD199907-201501

main45411-36620iBB50,58..LHD..TDEFI199907-201501

9010114042

main90101-14042

9010612005

main90106-12005

9017012018

main90170-12018

9017014026

main90170-14026

9090101003

main90901-01003

9090101004

main90901-01004

9462111600

main94621-11600

9462211600

main94622-11600

9462251400

main94622-51400

15 parts on this diagram · 5 diagrams in section
