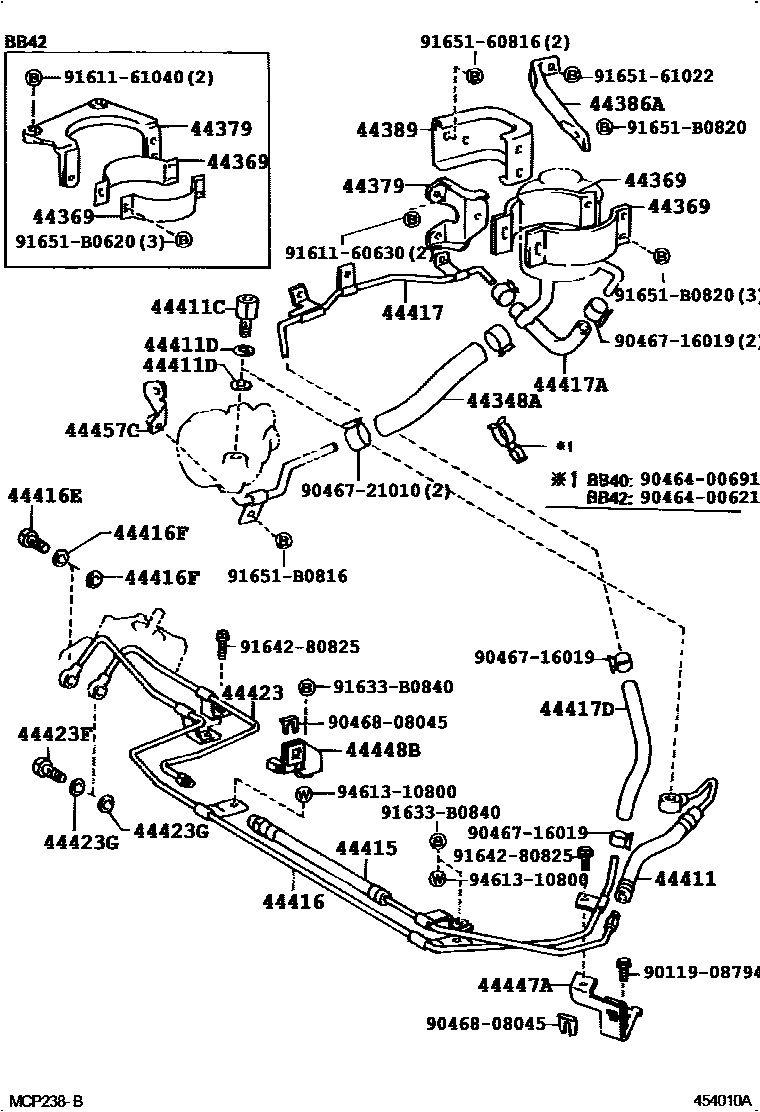

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36150iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-201501

sub44348-36151

main44348-36170iRZB40,50..CHI199309-200708

sub44348-36171

main44348-36250iHZB50..RHD199301-201501

sub44348-36251

main44348-36260iHZB50..LHD199301-201501

sub44348-36261

main44348-36310iBB5#..TDEFI199907-200608

sub44348-36311

main44348-36350iBZB50..EX200108-201501

sub44348-36351

main44348-36360iXZB50..IV200608-201501

main44348-36370iTRB40,50200708-201501

main44348-37010iBB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F199605-200504

sub44348-36410

main44348-37011iBB50..TD200504-201501

sub44348-36420

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36020iBB4#;HZB50..LHD199301-201501

44379BRACKET, OIL RESERVOIR, NO.2

main44369-36030iHZB50..LHD199301-201501

main44379-36080iBB42199301-201501

main44379-36150iBB40199301-199505

sub44379-37020

main44379-36190iBB5#..TDEFI199907-200608

main44379-37020iBB40199505-199907

44386ASUPPORT, OIL RESERVOIR

main44386-36100iBB40199301-199907

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36060iBB40199301-199907

44411HOSE, PRESSURE FEED

main44411-36371iBB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN199301-201501

main44411-36380iBB50,59..RHD200105-200608

main44411-36390iHZB50..LHD199301-201501

main44411-36401iBB50..RHD..6F199301-201501

main44411-36410iHZB50..RHD199301-201501

main44411-36470iRZB40,50199309-199907

main44411-36471iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-200708

main44411-36510iBB50,58..LHD..TDEFI199907-200608

main44411-36550iXZB40,5#..RHD200608-201501

main44411-36560iXZB50..TAIW200608-201501

main44411-36570iTRB40,50200708-201501

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16004iRZB40,50199309-199310

sub90401-16027

main90401-16027iRZB40,50199310-199907

main90401-16034iTRB40,50200708-201501

main90404-16024iBB50,HZB50..ARL,CHI199301-201501

main90904-01001iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-200708

main96341-41603iXZB50..WOC..CBU200608-201501

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iXZB50..IV200203-201501

main44327-30040iTRB40,50200708-201501

main90430-16168iBB4#,5#,HZB50,RZB40,50199301-200203

44415HOSE, PRESSURE FEED, NO.2

main44415-36020iBB42,HZB50..RHD199301-199605

main44415-36030iHZB50..LHD..TD199301-199605

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36350iBB4#,50,HZB50..RHD199301-199907

main44416-36351iBB50..RHD..6F199907-201501

main44416-36360iBB42,5#,HZB50..LHD199301-199907

main44416-36361iBB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F199907-201501

main44416-36380iRZB40,50199309-199907

main44416-36381iRZB40,50..CHI199907-201501

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

44416FGASKET(FOR RETURN TUBE)

main90430-14014iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#200707-201501

main90430-14235iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-200708

44417TUBE, RETURN, NO.2

main44417-36210iBB40,42199301-201501

44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

main44412-36050iBB50..TD200504-201501

main90445-18146iBB42199301-201501

main90445-18150iBB5#..LHD199605-200504

main90445-18151iBB43,50..RHD199605-200108

main90445-18159iBB50,59..RHD200105-200608

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18082iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-201501

main90445-18109iBB50,58..LHD..TDEFI199907-200608

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36240iBB42,5#..LHD;HZB50..LHD..DSL199412-199907

main44423-36241iBB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F199907-201501

main44423-36270iHZB50..RHD..TD199301-199605

main44423-36280iBB42,HZB50..LHD199301-199605

main44423-36310iBB40199301-199907

main44423-36311iBB4#,50,HZB50..RHD199907-200104

sub44423-36312

main44423-36312iBB42,BZB40,50,HZB50..RHD..STD200104-201501

44423FBOLT, UNION

main90401-14003iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

44423GGASKET, UNION BOLT

main90430-14014iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#200707-201501

main90430-14235iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-200708

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36200iHZB50..ARL199301-201501

main44447-36210iBB50,58..LHD..TDEFI199301-201501

44448BBRACKET, HOSE SUPPORT, NO.2

main44448-36050iBB42,HZB50199301-199605

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBZB50..EX199301-201501

main44457-36090iHZB50..ARL199301-201501

9011908794

main90119-08794

9046400621

main90464-00621

9046400691

main90464-00691

9046716019

main90467-16019

9046721010

main90467-21010

9046808045

main90468-08045

9161160630

main91611-60630

9161161040

main91611-61040

91633B0840

main91633-B0840

9164280825

main91642-80825

9165160816

main91651-60816

9165161022

main91651-61022

91651B0620

main91651-B0620

91651B0816

main91651-B0816

91651B0820

main91651-B0820

9461310800

main94613-10800

37 parts on this diagram · 22 diagrams in section
