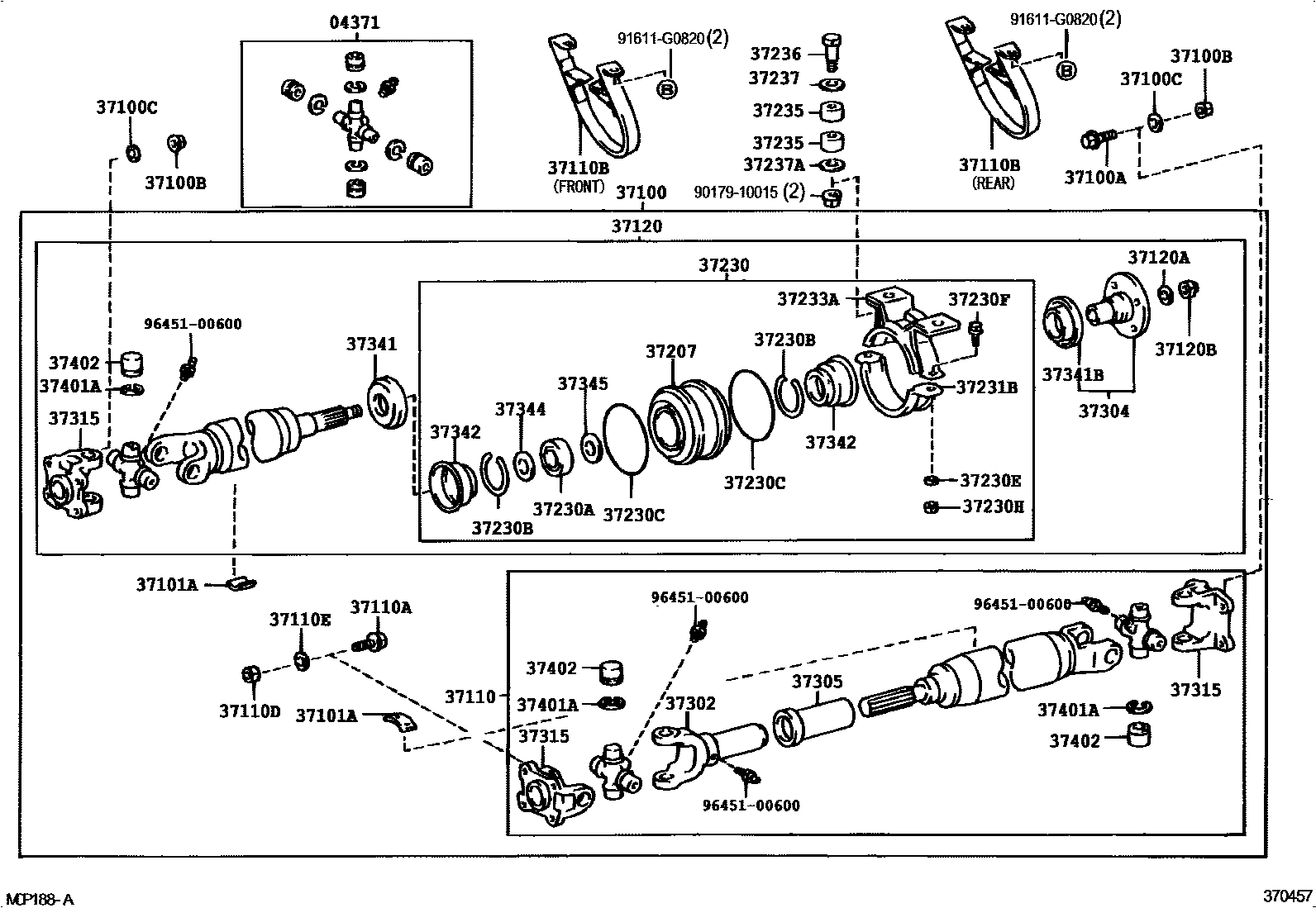

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030iBB50..WOC..5F;BB50..EX..GEN;BB50..CBU..6F;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199301-200408

sub04371-60210

main04371-36030iRZB40..HRF..GCC200408-201511

UNPAINTED

sub04371-60210

main04371-36050iHZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..199301-201501

WHITE PAINTED

main04371-60210iBB42,BZB40,TRB40,XZB40201512

UNPAINTED

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-36710iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-201501

main37100-36720iBZB40199802-201501

main37100-36740iBB5#,HZB50..5F199301-200611

sub37100-36917

main37100-36750iHZB50..4FC199301-200108

sub37100-36922

main37100-36760iRZB40..CHI199309-201501

main37100-36770iRZB50199309-200611

sub37100-36918

main37100-36810iBB50..IV..6F199907-200611

sub37100-36915

main37100-36890iBB50..EX..IV200104-200608

sub37100-36923

main37100-36915iXZB50..5F200611-201501

main37100-36917iBZB50,HZB50200611-201501

main37100-36918iTRB50200611-201501

main37100-36924iXZB50..4FC200708-201501

main37100-36926iXZB59200611-201501

sub37100-36927

main37100-36A00iXZB40200803-201501

main37100-36A30iXZB59200609-200611

sub37100-36927

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-11013iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-201501

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-11005iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-11013iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-200408

10G,L=20.7

main90937-01136iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-200408

20G,L=41.4

main90937-01140iBB4#,5#,HZB50,RZB40,50199301-200408

30G,L=62.2

main90937-01147iBB50,HZB50,RZB40,50..ARL,CHI199301-200408

2G,T=2.0

main90937-01148iBB4#,5#,HZB50,RZB40,50199301-200408

4G,T=2.0

main90937-01149iBB50,HZB50,RZB40,50..ARL,CHI199301-200408

6G,L=12.4

main90937-01150iBB4#,5#,HZB50,RZB40,50199301-200408

8G,L=16.6

main90937-01151iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-200408

12G,L=24.9

main90937-01152iBB50..WOC..6F;BB50..STD..WC..IV199301-200408

14G,L=29.0

main90937-01153iBB4#,5#,HZB50,RZB40,50199301-200408

16G,L=33.2

main90937-01154iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-200408

18G,L=37.3

main90937-01155iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-200408

22G,L=45.6

main90937-01156iBB50,HZB50,RZB40,50..ARL,CHI199301-200408

24G,L=49.7

main90937-01157iBB4#,5#,HZB50,RZB40,50199301-200408

26G,L=53.9

main90937-01158iBB50,HZB50,RZB40,50..ARL,CHI199301-200408

28G,L=58.1

37110SHAFT ASSY, PROPELLER

main37110-36730iBB4#,RZB40199301-200408

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013iBB50..WOC..5F;BB50..EX..GEN;BB50..CBU..6F;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199301-201501

*11-1.00PX28-16

37110BGUARD, PROPELLER SHAFT

main51569-36180iBB42..LHD..HRF199301-201501

REAR

main51569-36180iBB40199301-201501

CENTER & REAR

main51569-36180iBB50..IV..6F199907-201311

main51569-36190iBB40,50,HZB50..19S,22S199301-201501

FRONT

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005iBB4#,RZB40199301-201501

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013iBB4#,RZB40199301-201501

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-36510iBZB40199802-200408

main37120-36570iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199301-200408

main37120-36590iRZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN)199309-200408

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-20005iBB4#,RZB40199301-200408

OD=33.5,T=4.0

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-20006iRZB50199301-201501

37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1

main37207-35011iXZB50..WC;XZB50..WOC..IV;BB50,BZB50,HZB50,TRB50199301-201501

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-36140iXZB5#..IV;XZB50..20S,21S;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)199301-201501

sub37230-36141

main37230-36141iXZB50..4FC;BB42,BZB40,TRB40,XZB40201208-201501

37230ABEARING, NO.1 (FOR CENTER SUPPORT)

main90363-30029iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-201501

37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)

main90521-66077iBZB50,HZB50,TRB50,XZB5#..5F199301-201501

37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)

main90522-97001iXZB50..4FC199301-201501

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main94512-00800iXZB59199301-201501

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90101-08157iBZB50,HZB50,TRB50,XZB5#..5F199508-201501

main91112-80816iBB4#,HZB50,RZB40,50199301-199508

37230HNUT, NO.1 (FOR CENTER SUPPORT BEARING)

main94110-50800iBB4#,HZB50,RZB40,50199301-199508

main94130-00802iBB4#,5#,HZB50,RZB40,50199508-201501

37231BHOUSING, CENTER SUPPORT BEARING, NO.1

main37231-36020iBB4#,5#,HZB50,RZB40,50199301-200008

sub37231-36021

main37231-36021iBB42,BZB40,TRB40,XZB40200008-201501

37233AHOUSING, CENTER SUPPORT BEARING, NO.2

main37233-36080iBB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40199301-201501

37235CUSHION, CENTER SUPPORT BEARING

main37235-36010iHZB50..TD199301-199605

37236BOLT, CENTER SUPPORT BEARING HOUSING

main37236-36061iBB4#,RZB40199301-199605

37237PLATE, CENTER SUPPORT BEARING, NO.1

main37237-36020iBB4#,RZB40199301-199605

T=2.3

37237APLATE, CENTER SUPPORT BEARING, NO.2

main37237-36030iBB4#,HZB50,RZB40,50199301-199605

T=2.0

main37237-36040iBB4#,HZB50,RZB40,50199301-199605

T=4.0

main37237-36050iBB4#,RZB40199301-199605

T=6.0

main37237-36060iHZB50..TD199301-199605

T=8.0

main37237-36070iHZB50..TD199301-199605

T=10.0

main37237-36080iBB4#,HZB50,RZB40,50199301-199605

T=12.0

main37237-36090iBB4#,HZB50,RZB40,50199301-199605

T=14.0

main37237-36100iHZB50..TD199301-199605

T=16.0

main37237-36110iBB4#,HZB50,RZB40,50199301-199605

T=18.0

main37237-36120iBB4#,HZB50,RZB40,50199301-199605

T=20.0

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36020iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-200408

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-36030iBB4#,RZB40199301-200408

37305COVER SUB-ASSY, SLIDING SHAFT DUST

main37305-36020iBB50..WOC..6F;BB50..STD..WC..IV199301-200408

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020iBB4#,RZB40199301-200408

sub37315-60090

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-36010iBB4#,RZB40199301-200408

37341BDEFLECTOR, PROPELLER SHAFT DUST, NO.5

main37341-36010iBB50..WOC..6F;BB50..STD..WC..IV199301-200408

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-36010iXZB50..WC;XZB50..WOC..IV;BB50,BZB50,HZB50,TRB50199301-201501

37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3

main37344-36010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4

main37345-36010iXZB50..WC;XZB50..WOC..IV;BB50,BZB50,HZB50,TRB50,XZB59199301-201501

main37345-36020iBB42,BZB40,TRB40,XZB40201205-201501

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024iRZB40..CHI199301-201501

T=2.00,NO MARK

main90520-29025iHZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..199301-201501

T=2.03,BROWN

main90520-29026iBB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN199301-201501

T=2.06,BLUE

main90520-29027iBB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#199301-201501

T=2.09,NO MARK

main90520-29039iXZB50;BB50,BZB50,HZB50..STD..(DSL,LPG,TD)200508-201501

T=1.99,MARK 1

main90520-29040iBZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI200508-201501

T=2.01,MARK 2

main90520-29041iBZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI200508-201501

T=2.03,MARK 3

main90520-29042iXZB50;BB50,BZB50,HZB50..STD..(DSL,LPG,TD)200508-201501

T=2.05,MARK 4

main90520-29043iBZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI200508-201501

T=2.07,MARK 5

main90520-29044iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#200508-201501

T=2.09,MARK 6

main90520-29045iBZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI200508-201501

T=2.11,MARK 7

main90520-29046iBZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI200508-201501

T=2.13,MARK 8

main90520-29047iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#200508-201501

T=2.15,MARK 9

main90520-29048iXZB50;BB50,BZB50,HZB50..STD..(DSL,LPG,TD)200508-201501

T=2.17,MARK 10

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36070iBB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN199301-200408

main37402-36080iHZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..199301-200408

WHITE PAINTED

9017910015

main90179-10015

91611G0820

main91611-G0820

9645100600

main96451-00600

42 parts on this diagram · 7 diagrams in section
