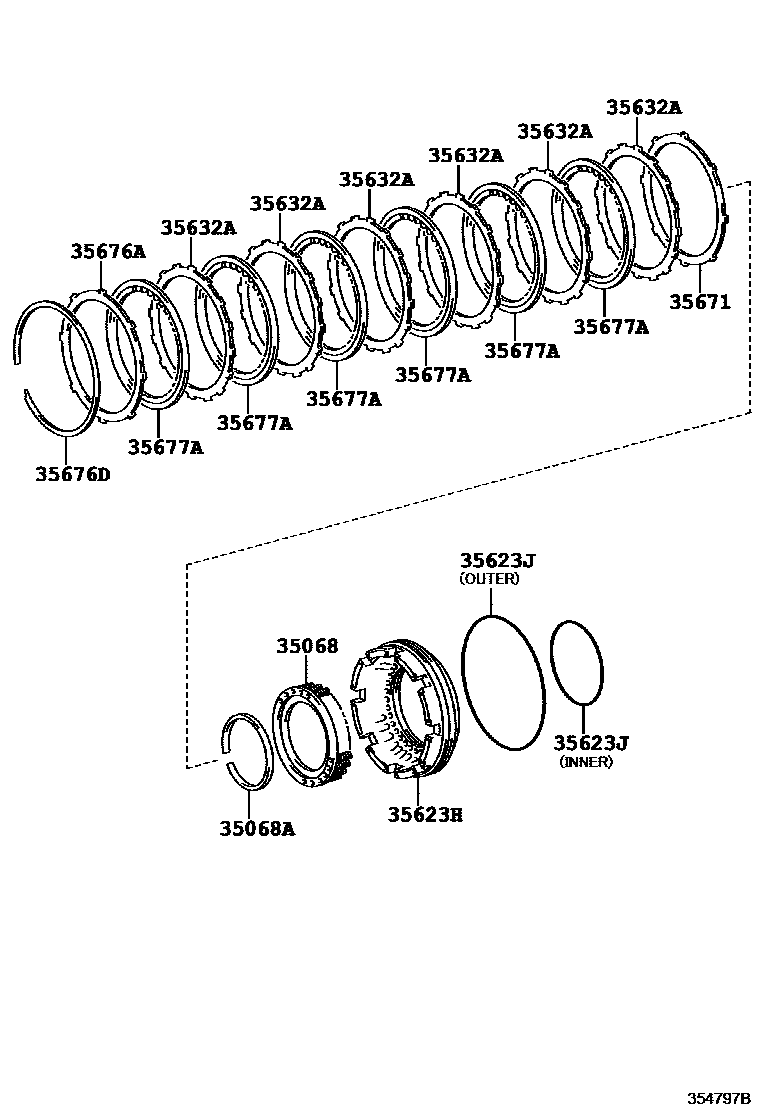

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-36010iXZB50..4FC199301-201501

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-87001iHZB50..4FC199301-201501

35623HPISTON, 1ST & REVERSE BRAKE

main35623-36010iHZB50..4FC199301-199505

main35623-60020iHZB50..4FC199505-199907

main35623-60040iXZB50..4FC199907-201501

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94002iXZB50..4FC199301-201501

INNER

main90301-99030iXZB50..4FC199301-201501

OUTER

35632APLATE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35632-36020iHZB50..4FC199301-199505

main35632-60030iHZB50..4FC199505-199907

main35632-60070iXZB50..4FC199907-201501

35671PLATE, BRAKE CUSHION

main35671-36010iHZB50..4FC199301-201501

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-60050iXZB50..4FC199301-201501

T=6.65

main35676-60060iXZB50..4FC199301-201501

T=7.05

main35676-60070iXZB50..4FC199301-201501

T=7.45

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99021iHZB50..4FC199301-199407

sub90521-99109

main90521-99109iHZB50..4FC199407-201501

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35633-60030iHZB50..4FC199301-201501

9 parts on this diagram · 1 diagram in section
