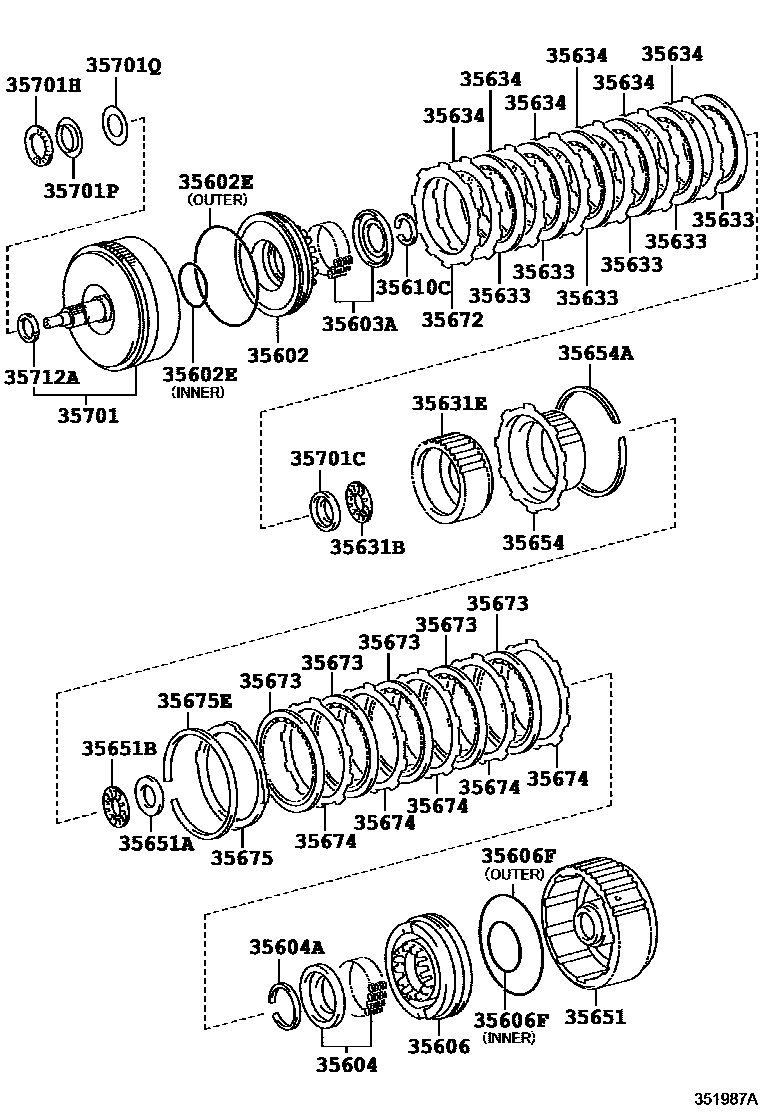

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602ERING, O (FOR FRONT CLUTCH PISTON)
INNER
OUTER
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35606PISTON SUB-ASSY, REAR CLUTCH
35606FRING, O (FOR REAR CLUTCH PISTON)
INNER
OUTER
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631EHUB, FRONT CLUTCH
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634PLATE, FRONT CLUTCH
T=1.75-1.85,REAR
T=1.75-1.85,FRONT
T=1.75-1.85
T=2.35-2.45
T=2.35-2.45,REAR
T=1.95-2.05,REAR
T=1.95-2.05
T=2.15-2.25
T=2.15-2.25,REAR
35651DRUM, REAR CLUTCH
35651ARACE, THRUST BEARING (FOR REAR CLUTCH DRUM)
35651BBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35672PLATE, CLUTCH CUSHION
35673DISC, REAR CLUTCH
35674PLATE, REAR CLUTCH
35675FLANGE, REAR CLUTCH
T=5.0
T=5.2
T=4.6
T=4.8
35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35701PRACE, THRUST BEARING (FOR INPUT SHAFT)
35701QRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
T=0.9
T=1.2
T=1.5
T=1.8
T=2.1
35712ARING, INPUT SHAFT OIL SEAL
28 parts on this diagram · 2 diagrams in section
