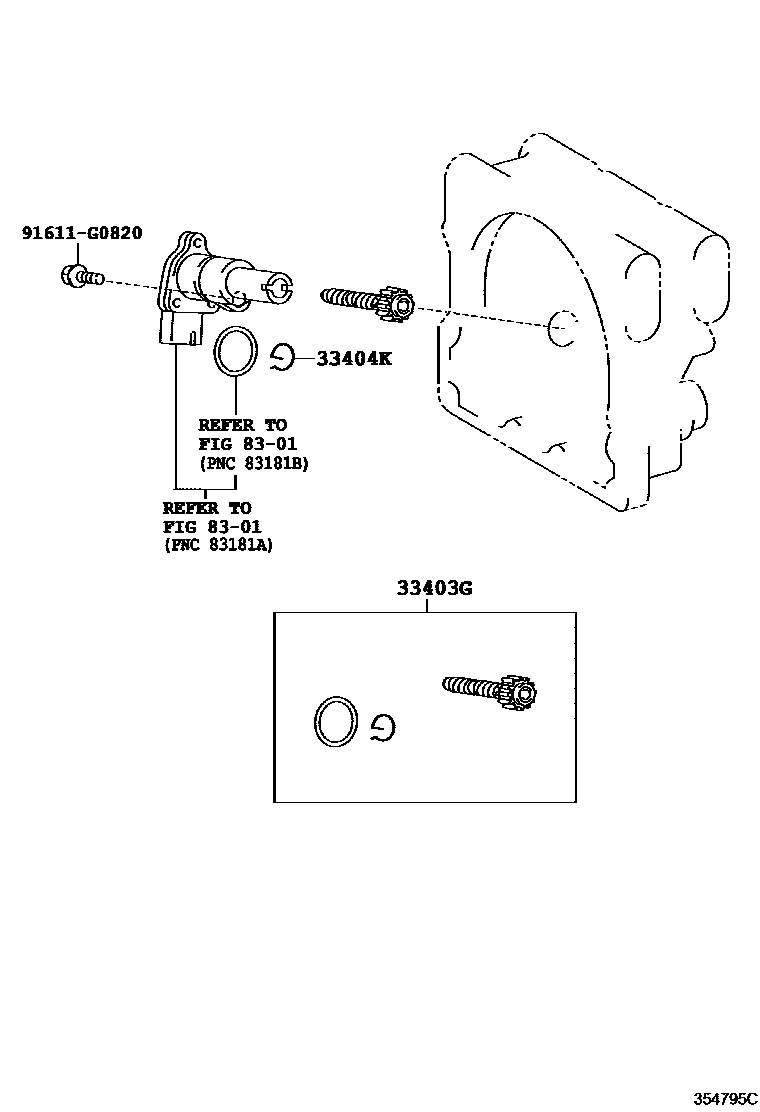

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29295iXZB50..GEN..4FC200804-201612

N=19,MARK 19:6

main33482-39475iHZB50..4FC199505-200108

N=18,MARK 18:5

main33482-39485iHZB50..4FC199301-200108

N=19,MARK 19:5

main33482-39495iHZB50..4FC199301-199505

N=16,MARK 16:4

main33482-39645iXZB50..GEN..4FC200708-201612

N=20,MARK 20:6

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iHZB50..4FC199301-201612

8301

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section
