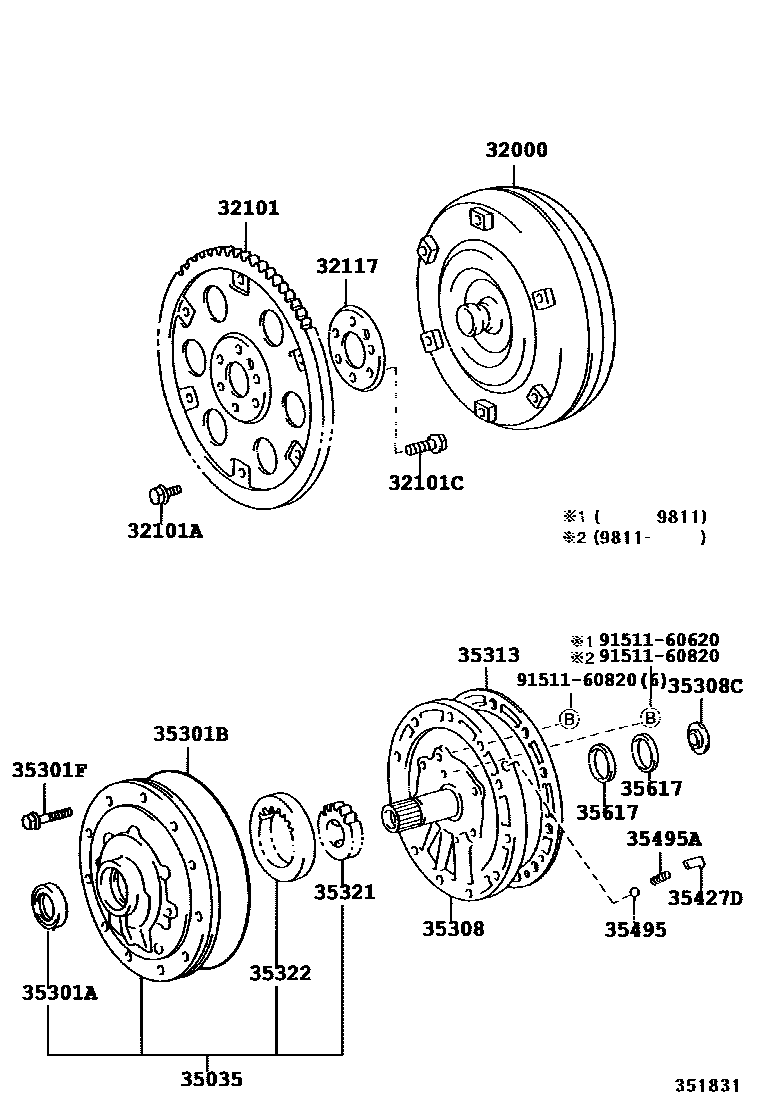

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.25PX14-9,GREEN
*10-1.25PX14-9,GREEN OR BLACK
*10-1.25PX14-9,BLACK
*10-1.25PX14-9,SILVER WHITE
*10-1.25PX14-9,BLACK OR SILVER
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
T=0.8
T=1.0
T=1.4
35313GASKET, FRONT OIL PUMP COVER
35321GEAR, FRONT OIL PUMP DRIVE
T=18.45-18.48
T=18.43-18.45
T=11.948-11.962
T=11.963-11.977
T=11.978-11.992
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
T=11.993-12.007
T=12.008-12.022
35322GEAR, FRONT OIL PUMP DRIVEN
T=18.45-18.48
T=18.43-18.45
T=11.948-11.962
T=11.963-11.977
T=11.978-11.992
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
T=11.993-12.007
T=12.008-12.022
35427DSEAT, CHECK VALVE SPRING
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
9151160620
main91511-60620
9151160820
main91511-60820
21 parts on this diagram · 3 diagrams in section
