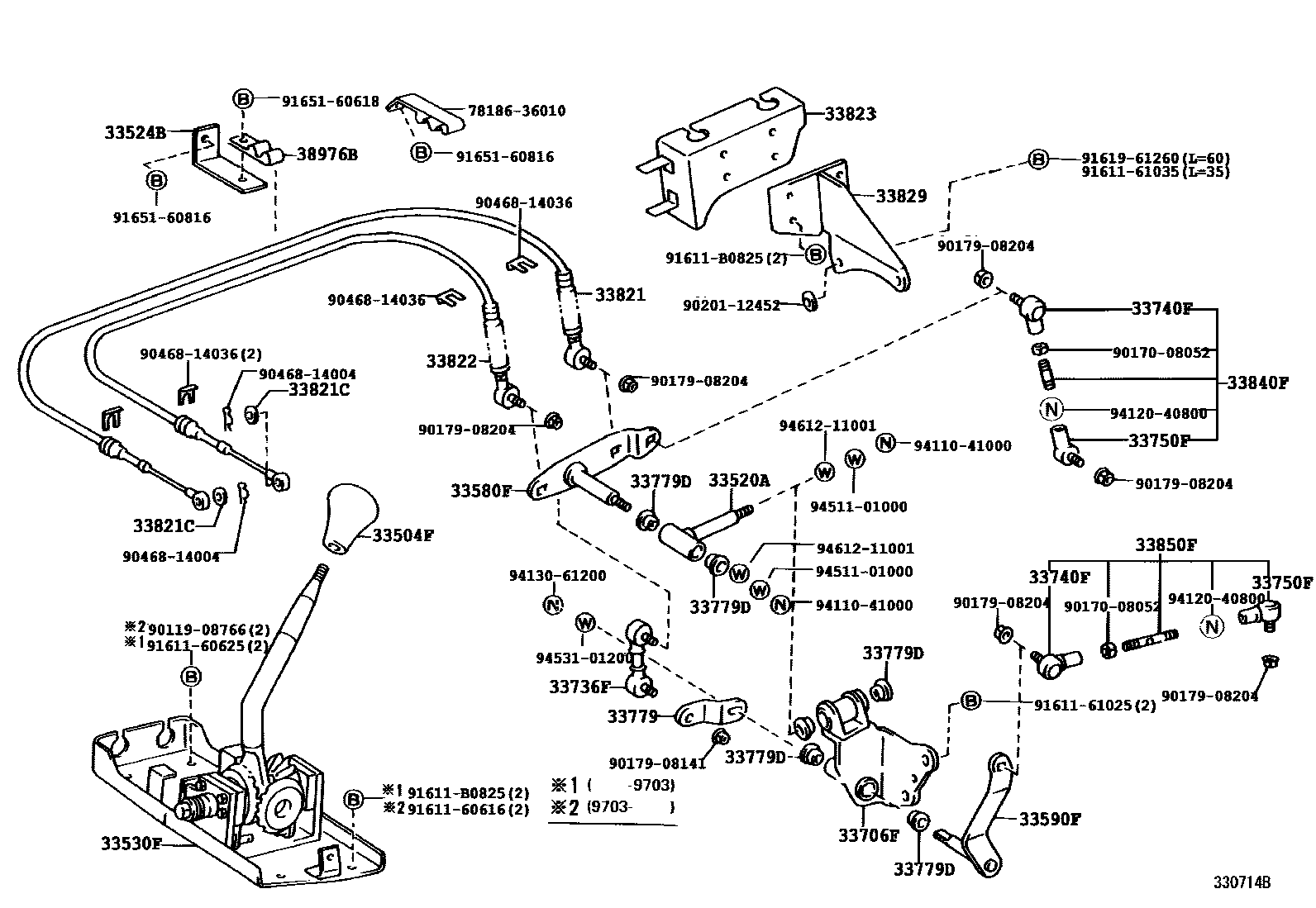

SHIFT LEVER & RETAINER

0001 1 0002 1 0004 1 0005 1 0006 1 0012 1 0013 1 0014 1 0015 1 0017 1 0018 1 0024 1 0025 1 0026 1 0027 1 0028 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iBB50,HZB50,RZB40,50..ARL,CHI200108-201612

BLACK,TRIM1#

sub33504-36051¥2,710

main33504-36051-C0iBB50..STD..WC..IV..5F199907-200108

BLACK,TRIM4#

sub33504-36051¥2,710

main33504-36051-E0iHZB50..5F..DSL;BB4#,5#,RZB40,50199505-199907

GRAIGE,TRIM4#

sub33504-36051¥2,710

main33504-36060-E0iHZB50..TD199301-199605

GREIGE,TRIM4#

sub33504-36051¥2,710

main33504-36080-C0iBB58200105-200608

BLACK,TRIM1#

sub33504-36080¥2,730

main33504-36080-C0iBB50..IV..6F199907-200108

BLACK,TRIM4#

sub33504-36080¥2,730

main33542-20100-C0iHZB50..4FC199907-200108

BLACK,TRIM4#

sub33542-20100¥4,900

main33542-20100-C0iXZB50..4FC200708-201612

BLACK,TRIM1#

sub33542-20100¥4,900

main33542-20100-E2iHZB50..WC..GEN..4FC199505-199907

GREIGE,TRIM4#

sub33542-20100¥4,900

main33542-20150-E0iHZB50..30S..4FC199301-199705

GREIGE,TRIM4#

sub33542-20150¥4,910

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-36230iBB42,50,HZB50,RZB40,50..LHD..5F¥8,100199301-199907

33524BBRACKET, CONTROL CABLE

main33524-36040iBB42,HZB50,RZB40,50..LHD..5F¥380199301-199705

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-36130iBB42,50,HZB50,RZB40,50..LHD..5F¥7,800199301-199907

33580FBELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)

main33580-36080iBB42,HZB50..RHD¥2,550199301-201501

main33580-36090iBB42,HZB50..LHD..5F¥3,090199301-199705

main33580-36100iBB50,RZB40,50..LHD¥4,550199309-199907

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-36110iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN¥2,370199301-201501

main33590-36120iHZB50..LHD..5F¥3,090199301-199705

main33590-36130iBB42..LHD¥3,090199301-199705

main33590-36140iBB50,RZB40,50..LHD¥3,090199309-199907

33706FSUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)

main33706-36150iHZB50..RHD¥1,720199301-201501

main33706-36160iBB42..RHD¥2,170199301-201501

main33706-36170iHZB50..LHD..5F¥6,800199301-199705

main33706-36180iBB42..LHD¥6,800199301-199705

main33706-36190iRZB40,50¥6,800199309-199705

main33706-36210iBB50..LHD..EUR¥6,800199605-199907

33736FROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)

main33790-36560iBB42,HZB50..LHD..5F¥2,290199301-199705

main33790-36570iBB50..LHD..EUR¥2,380199309-199907

main33790-36580iBB42,HZB50..RHD¥2,800199301-201501

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-36050iBB42,HZB50..RHD¥900200408-201501

main33740-36090iBB50..LHD..EUR¥1,270199301-199907

33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

main33750-36040iBB42,50,HZB50,RZB40,50..LHD..5F¥1,420199301-199907

33779ARM, SHIFT LEVER HOUSING, NO.2

main33779-36140iBB42,50,HZB50,RZB40,50..LHD..5F¥650199301-199907

33779DBUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90386-14012iBB50..LHD..EUR¥200199301-199907

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-36010iBB42,HZB50..LHD..5F¥19,200199301-199705

main33821-36020iRZB40,50¥29,600199309-199705

main33821-36030iBB50..LHD..EUR¥21,600199605-199907

main33821-36040iBB42,58,HZB50..LHD;BB50..STD..WC..GEN¥21,500199705-199907

sub33821-36041¥21,600

main33821-36041iBB50..WOC..GEN..IV¥21,600199711-200608

sub33821-36042¥13,500

main33821-36042iBB42..LHD..HRF¥13,500200609-201501

main33821-36050iBB43,50..RHD..CBU¥19,400199705-199907

main33821-36060iBB43,50..RHD..5F¥19,500199907-200108

main33821-36070iRZB50;RZB40..GEN;RZB40..SRF..GCC¥21,600199705-200608

sub33821-36071

main33821-36071iRZB40,50200609-200708

main33821-36080iBB50..RHD..6F¥21,600199907-200608

sub33821-36081¥21,600

main33821-36090iBB50,58..LHD..TDEFI¥25,600199907-200608

main33821-36140iBB50,59,BZB40,50..RHD..5F¥23,800200108-200608

sub33821-36141¥19,500

main33821-36141iBZB40,50¥19,500200609-201501

main33821-36200iXZB50..RHD200608-200609

sub33821-36201¥13,400

main33821-36201iXZB50..RHD..IV¥13,400200609-201501

main33821-36210iXZB50..LHD200608-200609

sub33821-36211

main33821-36211iXZB50..LHD..IV200609-201501

main33821-36220iTRB40,50200708-201501

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iBB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD¥60199301-201501

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-36010iBB42,HZB50,RZB40,50..LHD..5F¥19,200199301-199705

main33822-36020iBB50..LHD..EUR¥19,400199605-199907

main33822-36030iBB42,58,HZB50..LHD;BB50..STD..WC..GEN¥21,500199705-199907

sub33822-36031¥21,600

main33822-36031iBB50..CHI¥21,600199711-200608

sub33822-36032¥13,500

main33822-36032iBB42..LHD..HRF¥13,500200609-201501

main33822-36040iBB43,50..RHD..CBU¥19,500199705-200108

main33822-36050iBB50..RHD..6F¥21,600199907-200608

sub33822-36051¥21,600

main33822-36060iRZB40,50¥21,600199705-200608

sub33822-36061

main33822-36061iRZB40,50200609-200708

main33822-36070iBB50..CBU..6F¥25,600199907-200608

main33822-36120iBB50,59,BZB40,50..RHD..5F¥19,500200108-200608

sub33822-36121¥16,100

main33822-36121iBZB40,50¥16,100200609-201501

main33822-36180iXZB50..RHD200608-200609

sub33822-36181¥12,000

main33822-36181iXZB50..STD..GEN¥12,000200609-201501

main33822-36190iXZB50..LHD200608-200609

sub33822-36191

main33822-36191iXZB40,50..LHD200609-201501

main33822-36200iTRB40,50200708-201501

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33804-36010iHZB50..LHD¥5,400199705-199708

sub33804-36011¥4,060

sub91619-61260¥130

main33804-36011iHZB50..LHD¥4,060199708-201501

main33804-36020iBB42..LHD¥5,200199705-199708

sub33804-36021¥5,200

sub91619-61260¥130

main33804-36021iBB42..22S;BB42..WOC..GCC¥5,200199708-201501

main33804-36030iBB50..CHI¥4,950199705-201501

main33804-36040iRZB40,50¥5,700199705-199708

sub33804-36041¥6,700

sub91619-61265¥230

main33804-36041iRZB40,50¥6,700199708-199907

sub33804-36050¥4,210

main33804-36050iRZB50;RZB40..GEN;RZB40..SRF..GCC¥4,210199907-201501

main33804-36070iBB50..CBU..6F¥5,800199907-200608

main33804-36090iBZB40,50¥4,120200108-201501

main33804-36120iXZB40,5#..5F¥2,820200608-201501

main33823-36100iHZB50..30S..4FC¥1,260199301-199705

main33823-36110iBB50..LHD..EUR¥1,530199301-199907

main33823-36120iHZB50..WC..GEN..4FC¥1,300199505-199705

main33823-36131iHZB50..4FC¥1,190199705-200108

main33823-36140iXZB50..4FC¥950200708-201501

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-36030iHZB50..LHD..5F¥5,400199301-199705

main33829-36040iBB42..LHD¥5,400199301-199705

main33829-36050iRZB40,50¥5,400199309-199705

main33829-36060iBB50..LHD..EUR¥6,000199605-199907

33840FROD ASSY, GEAR SHIFTING, NO.3

main33840-36380iBB42,HZB50..LHD..5F¥2,770199301-199308

main33840-36410iHZB50..RHD..HRF..STD..WC..GEN..5F¥2,150199301-201501

main33840-36420iBB42..RHD¥2,840199301-201501

main33840-36440iBB50..LHD..EUR¥2,780199308-199907

33850FROD ASSY, GEAR SELECTING, NO.3

main33850-36290iHZB50..RHD¥1,400199301-201501

main33850-36300iBB42..RHD¥1,920199301-201501

main33850-36310iHZB50..LHD..5F¥1,780199301-199705

main33850-36320iBB42..LHD¥1,700199301-199705

main33850-36330iRZB40,50¥1,650199309-199705

main33850-36340iBB50..LHD..EUR¥1,060199605-199907

38976BCLAMP, PUSH PULL CABLE

main38976-36010iBB50..LHD..EUR¥380199301-199907

7818636010SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-36010¥460

9011908766

main90119-08766¥160

9017008052

main90170-08052¥110

9017908141

main90179-08141¥120

9017908204

main90179-08204¥140

9020112452

main90201-12452¥170

9046814004

main90468-14004¥80

9046814036

main90468-14036¥200

9161160616

main91611-60616¥110

9161160625

main91611-60625¥130

9161161025

main91611-61025¥240

9161161035

main91611-61035¥130

91611B0825

main91611-B0825¥160

9161961260

main91619-61260¥130

9165160618

main91651-60618¥90

9165160816

main91651-60816¥100

9411041000

main94110-41000¥160

9412040800

main94120-40800¥90

9413061200

main94130-61200¥100

9451101000

main94511-01000¥110

9453101200

main94531-01200¥80

9461211001

main94612-11001¥60

42 parts on this diagram · 16 diagrams in section
