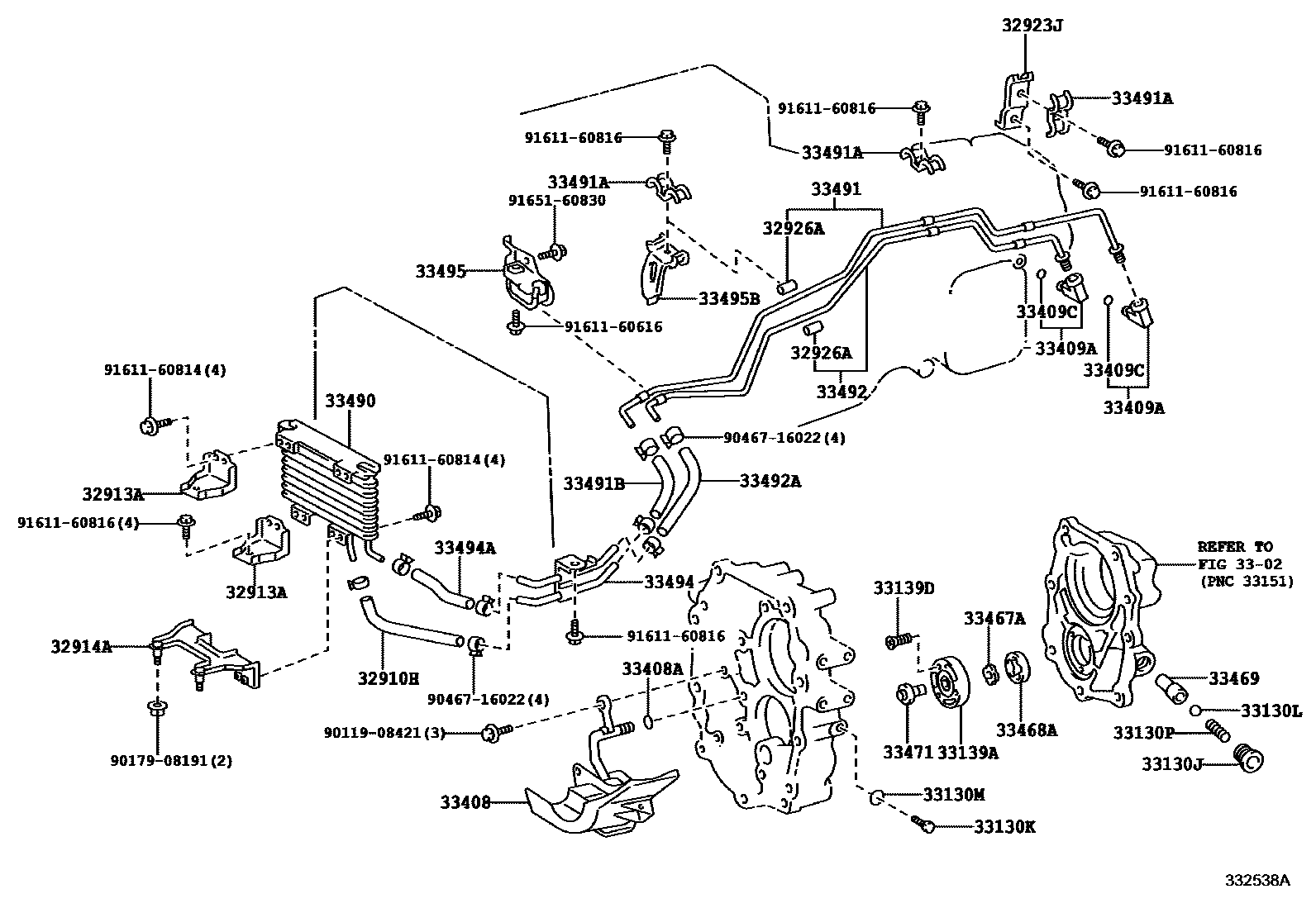

OIL PUMP, OIL COOLER & PIPE (MTM)

0001 1M155 0002 1M155

32910HHOSE(FOR MANUAL TRANSMISSION OIL COOLER)

main90445-17103iBB50..STD..WC..IV..5F¥600199301-200608

32913ABRACKET, TRANSMISSION OIL COOLER

main32913-36040iBB5#,HZB50..TD¥980199301-200608

32914ASTAY, MANUAL TRANSMISSION OIL COOLER

main32914-36020iBB5#,HZB50..TD¥1,530199301-200608

32923JCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4

main32923-25010iBB50..CHI¥370199705-200608

main32923-60060iBB50,HZB50..TD¥440199301-199705

sub32923-25010¥370

32926ACUSHION, OIL COOLER TUBE(MTM)

main32926-60010iBB50..TD¥280199301-200608

3302

33130JPLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-18039iBB50,59..EX..TDEFI;BB50..STD..GEN..CBU..5F¥190199301-200408

33130KPLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-08001iBB50,59..5F¥120199301-200408

33130LBALL(FOR TRANSMISSION OIL PUMP COVER)

main90360-10003iBB5#,HZB50..TD¥100199301-200408

33130MRING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90301-06196iBB5#,HZB50..TD¥170199301-200408

33130PSPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER)

main90501-08145iBB5#,HZB50..TD¥70199301-200408

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-36010iBB5#,HZB50..TD¥1,780199301-200408

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60053iBB5#,HZB50..TD¥70199301-200408

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-36010iBB5#,HZB50..TD¥5,200199301-200408

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iBB5#,HZB50..TD¥130199301-200408

33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90407-20004iBB5#,HZB50..TD¥430199301-200408

33409CRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)

main90301-11006iBB5#,HZB50..TD¥220199301-200408

33467AROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION)

main33467-36010iBB5#,HZB50..TD¥390199301-200408

33468AROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION)

main33468-36010iBB50..STD..WC..IV..5F¥500199301-200408

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-60010iBB5#,HZB50..TD¥390199301-200408

33471SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1

main33471-36010iBB5#,HZB50..TD¥380199301-200408

33490COOLER ASSY, MANUAL TRANSMISSION OIL

main32910-36040iBB5#,HZB50..TD¥62,700199301-200608

33491TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1

main33491-36010iHZB50..RHD..TD¥5,100199301-199605

main33491-36020iHZB50..LHD..TD¥5,300199509-199605

main33491-36030iBB50..EUR¥4,600199605-199907

main33491-36040iBB5#..GEN¥4,700199705-200608

33491ACLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1

main90462-12076iBB5#,HZB50..TD¥260199301-200608

33491BHOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32942-35070iBB50,59..5F..TDEFI¥2,650199605-200608

main32943-36050iBB50..STD..GEN..CBU..5F..TD¥3,150199605-200408

main90445-17096iHZB50..TD¥930199301-199605

33492TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2

main33492-36010iHZB50..TD¥3,500199301-199605

main33492-36020iHZB50..LHD..TD¥4,730199509-199605

main33492-36030iBB50..EUR¥4,100199605-199907

main33492-36040iBB50,59..5F..TDEFI¥4,250199705-200608

33492AHOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main32942-35070iBB50..TD¥2,650199605-200608

main90445-17096iHZB50..TD¥930199301-199605

33494TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3

main33494-36010iHZB50..RHD..TD¥1,530199301-199605

main33494-36020iHZB50..LHD..TD¥2,030199301-199605

main33494-36030iBB50..RHD..IV¥2,520199605-199907

main33494-36040iBB50..LHD..EUR¥2,120199605-199907

main33494-36050iBB50,59..5F..TDEFI¥2,530199705-200608

main33494-36060iBB50..STD..WC..IV..5F¥2,130199705-200408

33494AHOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90445-17101iBB50..TD¥600199301-200608

33495CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2

main32909-60010iHZB50..TD¥890199301-199605

33495BCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3

main32925-37010iBB5#¥630199605-200608

main32925-60070iHZB50..TD¥770199301-199605

9011908421

main90119-08421¥100

9017908191

main90179-08191¥90

9046716022

main90467-16022¥300

9161160616

main91611-60616¥110

9161160814

main91611-60814¥100

9161160816

main91611-60816¥230

9165160830

main91651-60830¥90

38 parts on this diagram · 2 diagrams in section
