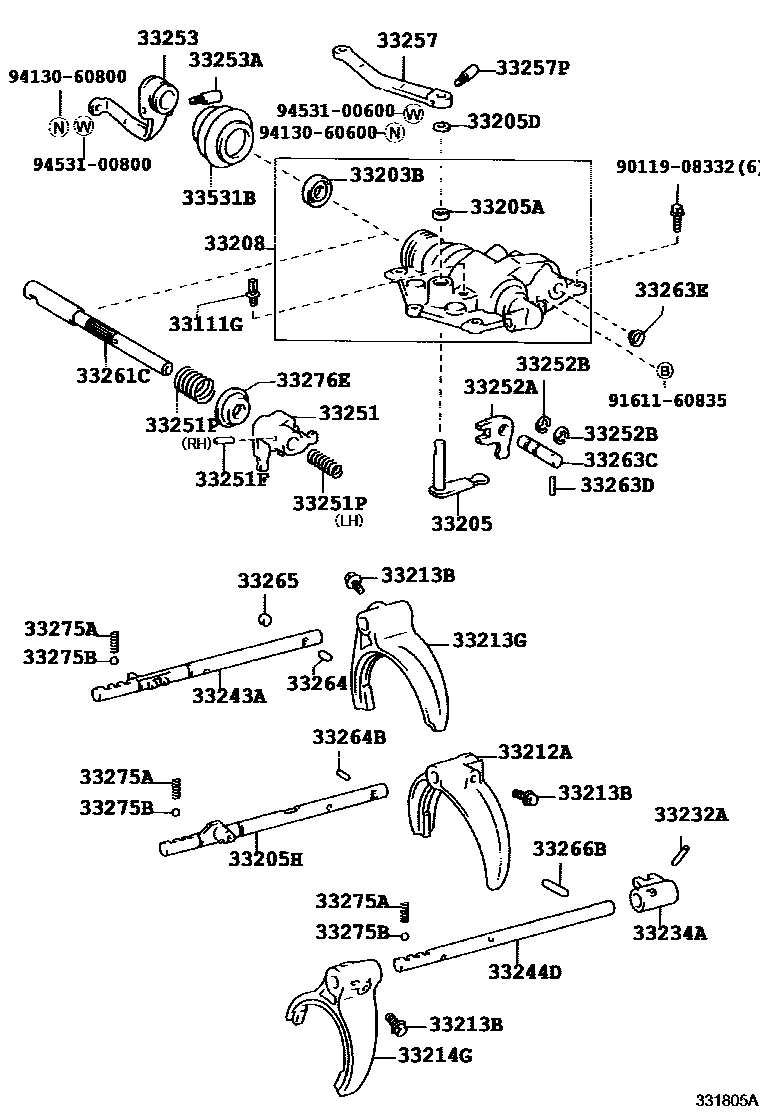

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M152,M155,M156 0002 1H260 0003 1M551

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-36010iXZB50..STD..GEN200608-201501

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iXZB50..IV199301-201501

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iXZB50..IV200608-201501

main33262-36050iRZB40..HRF..GCC199301-201501

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F199301-201501

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iBB4#,5#,HZB50,RZB40,50..5F199505-201501

OD=28

main94612-11300iBB4#,HZB50,RZB40,50..5F199301-199505

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-36070iBB4#,HZB50,RZB40,50..5F199301-199505

main33205-37030iBB50,HZB50,RZB40,50..ARL,CHI199505-201501

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-36031iHZB50..SCO199301-199705

W/O(EXHAUST BRAKE)

main33207-36031iBB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F199301-201501

main33207-36041iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC199301-201501

W(EXHAUST BRAKE)

main33207-36051iBB50..TD199605-201501

33212AFORK, GEAR SHIFT, NO.1

main33210-37010iXZB40,59;XZB50..IV;XZB50..(20S,21S)..5F200608-200902

sub33210-37020

main33210-37020iXZB50..IV200902-201501

main33212-36031iBB59,BZB50..EX;BB50..5F..TDEFI199301-201501

main33212-60050iBB50..CBU..6F199907-200608

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iBB50,HZB50,RZB40,50..ARL,CHI199301-201612

main90105-08211iBB50..CBU..6F199907-201612

33213GFORK, GEAR SHIFT, NO.2

main33213-36041iTRB40,50199309-201501

main33213-36050iBB42,BZB40,50,HZB50199301-201501

main33213-60060iBB50,58..6F..TDEFI199907-200608

main33220-37010iXZB40,59;XZB50..IV;XZB50..(20S,21S)..5F200608-200902

sub33220-37020

main33220-37020iXZB50..IV200902-201501

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

main33214-36070iXZB40,5#..5F201309-201608

sub33214-37040

main33214-37020iXZB50..STD..GEN200608-201309

sub33214-36070

main33214-37040iXZB40,5#..5F201609

main33230-60011iBB50..IV..6F199907-200608

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iBB4#,5#,HZB50,RZB40,50..5F199301-201501

33234AHEAD, GEAR SHIFT, NO.3

main33234-36011iBB4#,5#,HZB50,RZB40,50..5F199301-201501

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-36062iRZB40,50199309-199505

main33243-36070iBB4#,HZB50..5F199301-199505

main33243-37010iRZB40,50199505-201501

main33243-37020iBB50,HZB50..ARL,CHI199505-201501

main33243-37031iBB50,58..6F..TDEFI199907-200608

main33243-37050iXZB50..STD..GEN200608-201501

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-36041iBB4#,HZB50,RZB40,50..5F199301-199505

main33244-36060iXZB50..IV201309-201501

main33244-37020iRZB50;RZB40..GEN;RZB40..SRF..GCC199505-201501

main33244-37050iXZB50..WOC..CBU200608-201309

33251LEVER, SHIFT & SELECT

main33251-36090iBB50..STD..WC..IV..5F199301-201501

main33251-37030iBB50..IV..6F199907-200608

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iBB4#,5#,HZB50,RZB40,50..5F199301-201501

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-16090iBB4#,5#,HZB50,RZB40,50..5F199301-201501

LH

main90501-16186iXZB50..WOC..CBU200608-201501

main90501-18059iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

RH

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001iBB4#,5#,HZB50,RZB40,50..5F199301-201501

33253LEVER, SHIFT OUTER, NO.1

main33253-36140iBB42,HZB50..RHD199301-201501

main33253-36150iBB42,HZB50..LHD..5F199301-199705

main33253-36160iBB50,RZB40,50..LHD199309-199907

main33253-36180iBB50,RZB40,50..CHI199705-201501

main33253-36190iBB50,58..6F..TDEFI199907-200608

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

33257LEVER, SELECT OUTER

main33257-36130iBB50..EUR;BB40,42,HZB50..RHD..5F199301-201501

main33257-36150iBB59,BZB50..EX;BB50..5F..TDEFI199705-201501

main33257-36160iBB50,58..6F199907-200608

main33257-36170iXZB50..STD..GEN200608-201501

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-201501

33261CSHAFT, SHIFT & SELECT LEVER

main33261-36070iBB4#,5#,HZB50,RZB40,50..5F199301-201501

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iRZB40..HRF..GCC199301-201501

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iBB50..STD..WC..IV..5F199301-201501

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iBB4#,5#,HZB50,RZB40,50..5F199301-201501

L=13.4,OD=9.53

main90250-10023iBB50..IV..6F199907-200608

L=15.45

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

L=13

main90361-10003iBB50..CBU..6F199907-200608

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10015iBB4#,5#,HZB50,RZB40,50..5F199301-201501

L=7.5,OD=9.67

main90250-10024iBB50..IV..6F199907-200608

L=56.95,OD=9.53

33266BPIN, SHIFT INTERLOCK, NO.3

main90250-10014iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC199301-201501

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155iXZB50..WOC..CBU199907-201501

L=29.3

main90501-15044iXZB50..STD..GEN200608-201501

L=115.5

main90501-16099iBB4#,HZB50,RZB40,50..5F199301-199505

sub90501-16145

main90501-16145iBB42,BZB40,50,HZB50,TRB40,50199505-201501

L=28.8

33275BBALL, SHAFT DETENT

main90360-10003iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

33276ESEAT, SELECT SPRING, NO.1

main33276-36011iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

main33276-37050iXZB40,59;XZB50..(20S,21S)..WC..5F200608-201501

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iBB42,BZB40,50,HZB50,TRB40,50199301-201501

main33531-37020iBB50,58..6F..TDEFI199907-200608

9011908332

main90119-08332

9161160835

main91611-60835

9413060600

main94130-60600

9413060800

main94130-60800

9453100600

main94531-00600

9453100800

main94531-00800

43 parts on this diagram · 3 diagrams in section
