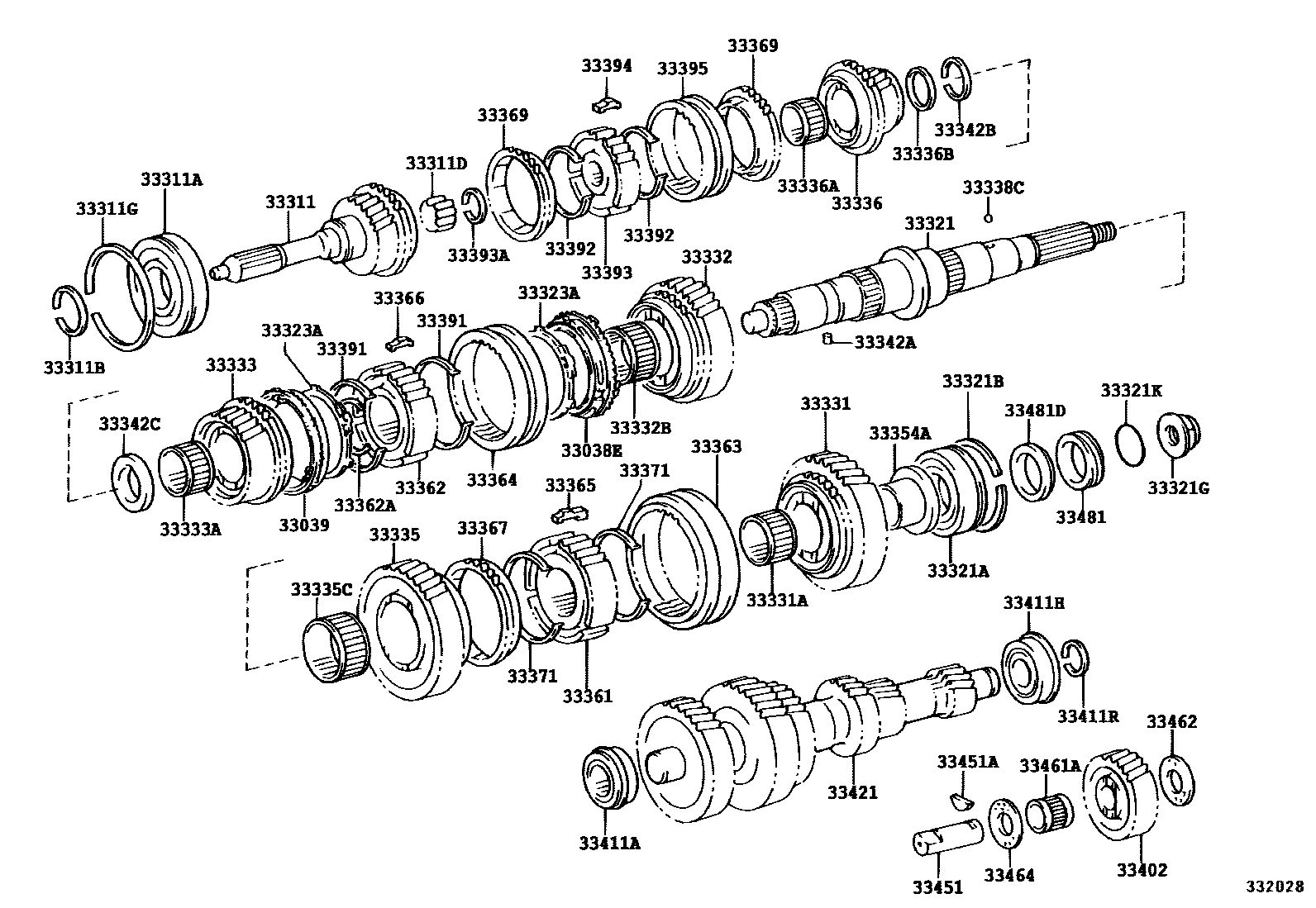

TRANSMISSION GEAR (MTM)
33039RING SET, SYNCHRONIZER, NO.3
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.50-2.55,MARK 2
T=2.55-2.60,MARK 3
main90520-42004iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
T=2.60-2.65,MARK 4
T=2.65-2.70,MARK 5
T=2.70-2.75,MARK 6
T=2.75-2.80,MARK 7
T=3.00-3.05,MARK A,NO.1
T=3.05-3.10,MARK B,NO.1
T=3.10-3.15,MARK C,NO.1
T=3.15-3.20,MARK D,NO.1
T=3.20-3.25,MARK E,NO.1
T=3.25-3.30,MARK F,NO.1
T=2.36-2.46
T=1.73-1.87,NO.2
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-96001iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.36-2.46
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33323ASPACER, SYNCHRONIZER RING
33332GEAR, 2ND
sub33033-37010
main33033-36100iBB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..WOC..GEN199301-201501
33333GEAR, 3RD
main33034-36100iBB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..WOC..GEN199301-201501
33335GEAR, 1ST
sub33335-37030
sub33335-36180
sub33335-37050
main33335-37050iBB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..WOC..GEN199505-201501
33336GEAR, 5TH
sub33036-36050
main33036-37010iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199505-201501
sub33336-36180
sub33336-36152
sub33336-36171
33336BSPACER (FOR 5TH GEAR BEARING)
33338CBALL, REVERSE SHIFT RESTRICT
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
main90520-34012iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC199301-201501
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
main90520-34016iBB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)199301-201501
T=3.10-3.15,MARK F
T=2.40-2.45,MARK 1
T=2.45-2.50,MARK 2
T=2.50-2.55,MARK 3
T=2.55-2.60,MARK 4
T=2.60-2.65,MARK 5
T=2.65-2.70,MARK 6
33354ARACE, REVERSE GEAR BEARING, INNER
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
T=2.05-2.10,MARK 7
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
T=1.90-1.95,MARK=2
T=1.95-2.00,MARK=3
T=2.00-2.05,MARK=4
T=2.05-2.10,MARK=5
T=2.10-2.15,MARK=6
T=2.15-2.20,MARK=7
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60-2.65,MARK E
T=2.65-2.70,MARK F
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
main33393-36060iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
sub33393-37041
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
main90520-28057iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
T=2.05-2.10,MARK 7
main90520-28058iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60-2.65,MARK E
T=2.65-2.70,MARK F
T=2.60-2.65,MARK A
T=2.65-2.70,MARK B
T=2.70-2.75,MARK C
T=2.75-2.80,MARK D
T=2.80-2.85,MARK E
T=2.85-2.90,MARK F
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
W(EXHAUST BRAKE)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90363-30049iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC199301-201501
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.95-2.00,MARK 0
T=2.00-2.05,MARK 1
T=2.05-2.10,MARK 2
main90520-26033iBB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501
T=2.10-2.15,MARK 3
T=2.15-2.20,MARK 4
T=2.20-2.25,MARK 5
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60-2.65,MARK E
T=2.65-2.70,MARK F
T=2.70-2.75,MARK G
T=2.2,ID=17.7
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
33461ABEARING, REVERSE IDLER GEAR
W(EXHAUST BRAKE)
33462WASHER, REVERSE IDLER THRUST
33464WASHER, REVERSE IDLER THRUST, NO.2
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X20-22,W(5.50FXR16 DISC WHEEL)
main33481-36150iHZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;BB42..LHD..HRF..WOC;BB42..SRF..WOC..GEN;HZB50..LHD..SRF..WC;BB50,58,BZB50..(17S,21S,23S,30S)..(AR199301-201501
N=6,MARK 6X20-22
N=6,MARK 6X23-25,*FGR=41:7
N=6,MARK 6X23-25,*FGR=45:8
main33481-36160iRZB40..WOC..GEN;BB42,HZB50..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,RZB50..GCC,GEN;BB42,RZB40..(17S,26S)..WC..(GCC,GEN)199301-201501
N=6,MARK 6X23-25
N=6,MARK 6X20-22
N=6,MARK 6X23-25
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
main33487-36070iBB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)199301-201501
58 parts on this diagram · 6 diagrams in section
