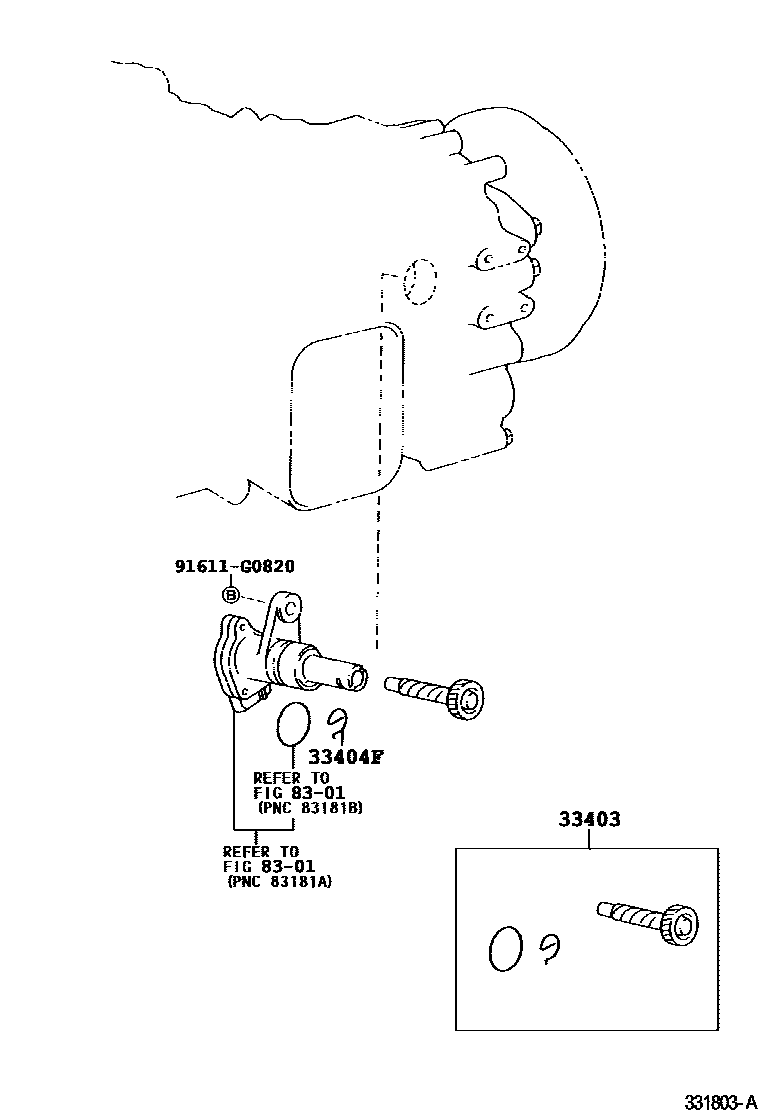

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1H260,M152,M155,M156 0003 1H260 0004 1M551

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39215iXZB40,50..(21S,26S,30S)..(ARL,GEN)..5F200608-201501

N=21,MARK 21:6

main33482-39225iBB50..IV..6F199610-201501

N=22,MARK 22:6

main33482-39235iBB50..IV200105-200608

N=23,MARK 23:6

main33482-39425iBB42..SRF..WOC..GEN;BB42..LHD..HRF..WOC199301-201501

N=20,MARK 20:6

main33482-39435iBB42,HZB50..WOC199301-201501

N=21,MARK 21:6

main33482-39445iBB42..WC..GCC;BB50..GEN..IV;BB42,43,58..GEN;BB50,HZB50..(20S,30S)..(GCC,GEN)..5F199301-201501

N=22,MARK 22:6

main33482-39455iBB42,58,59,BZB40,TRB40;BB50,HZB50..LHD..WC..GEN..(DSL,TDEFI)199301-201501

N=23,MARK 23:6

main33482-39465iBB42..RHD..WC;HZB50..HRF..WOC;BB42..LHD..SRF..GEN199301-201501

N=24,MARK 24:6

main33482-39495iBB42..LHD..WOC..GEN199907-200408

N=16,MARK 16:4

main33482-39505iTRB50..GCC199505-201108

N=25,MARK 25:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iBB50..IV..TDEFI199610-201501

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB4#,5#,HZB50,RZB40,50..5F199301-201501

8301

91611G0820

main91611-G0820

5 parts on this diagram · 3 diagrams in section
