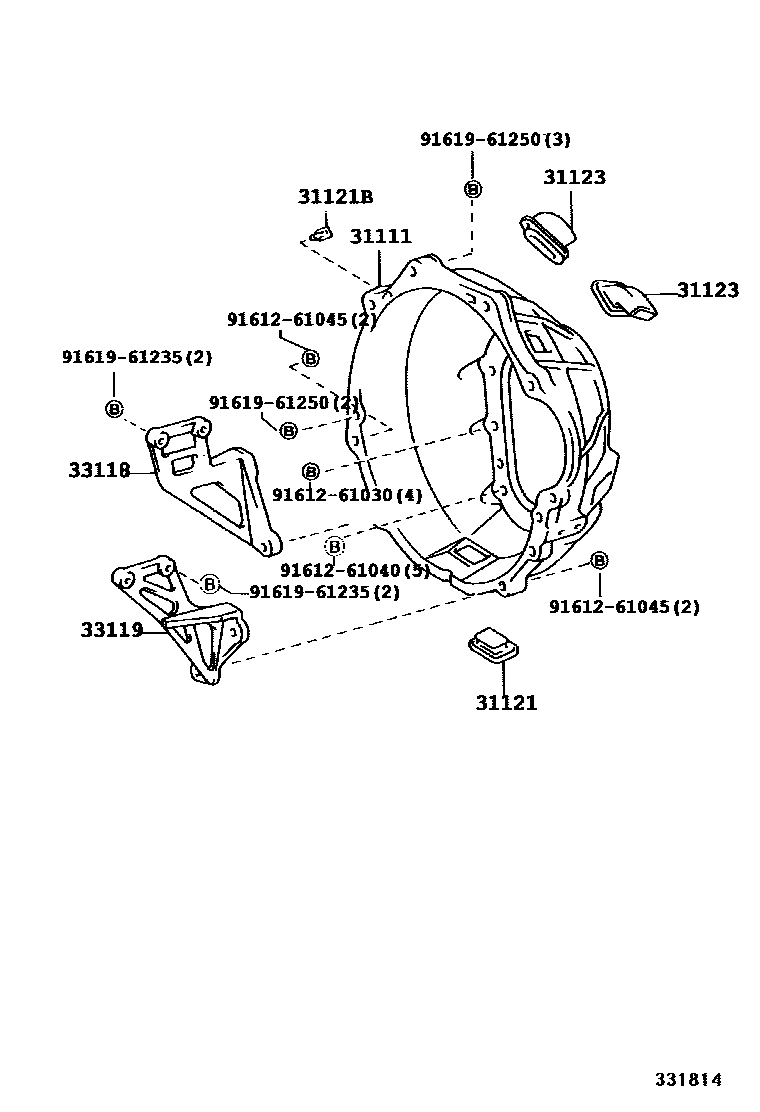

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M152,M155 0003 1M152,M155,M156 0004 1M155 0005 1M152,M155 0006 1M155 0007 1M155 0008 1M156 0009 1H260 0010 1M551

31111HOUSING, CLUTCH

main31111-36310iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-201501

main31111-36320iHZB50..ARL199301-201501

main31111-36330iRZB40,50199309-199505

sub31111-36331

main31111-36331iTRB40,50199505-201501

main31111-36350iBB50..CBU..6F199907-200608

main31111-36400iXZB40,5#..(ARL,GEN,TAIW)..5F201305-201501

main31111-37020iBB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F199705-201501

main31111-37100iXZB40,59;XZB50..IV;XZB50..(20S,21S)..WC..5F200608-201305

sub31111-36400

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXZB50..WOC..CBU200608-201501

main31121-36040iBZB50..EX;BB5#..TDEFI199301-200708

sub31121-36110

main31121-36110iBB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50200708-201501

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-26020iHZB50..5F199301-201501

main31121-28030iBB40,42;BB50..EUR199301-201501

31123COVER, CLUTCH HOUSING, NO.2

main31121-28040iBB4#,RZB40,50199301-199505

sub31121-28041

main31121-28041iBB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN199505-201501

main31121-36070iHZB50199301-201501

33118PLATE, STIFFENER, RH(MTM)

main33118-26010iRZB40,50199309-199705

sub33118-26011

main33118-36021iBB42199301-201501

main33118-37020iBB50..CHI199705-201501

main33118-37030iRZB40..HRF..GCC199705-200708

main33118-60030iHZB50..5F199301-199801

sub33118-60060

main33118-60060iHZB50199801-201501

33119PLATE, STIFFENER, LH(MTM)

main33119-26020iRZB40,50199309-199505

sub33119-26021

main33119-26021iRZB50;RZB40..GEN;RZB40..SRF..GCC199505-200708

main33119-36041iBB4#199301-199505

sub33119-36042

main33119-36042iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199505-201501

main33119-37020iBZB50..EX;BB5#..TDEFI199705-201501

main33119-60031iHZB50..5F199301-199801

sub33119-60070

main33119-60070iHZB50..5F199801-201501

9161261030

main91612-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

11 parts on this diagram · 9 diagrams in section
