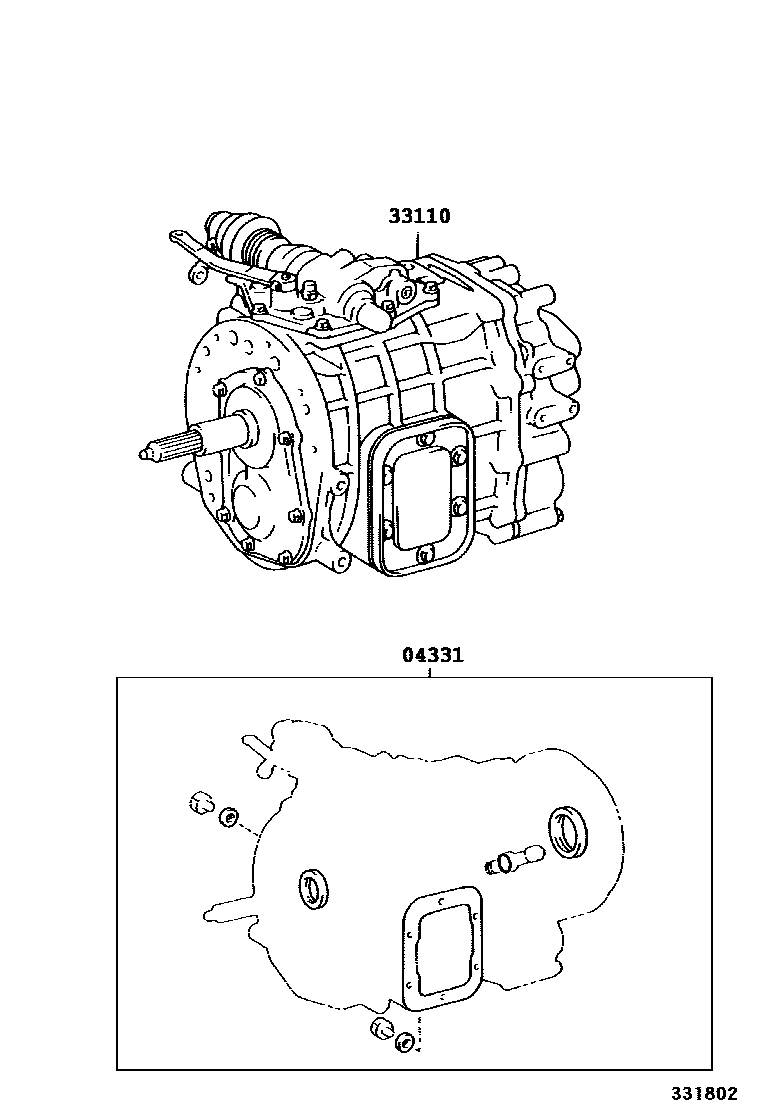

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M152,M155,M156 0002 1H260 0003 1M551

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36080iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)¥4,350199301-200408

main04331-36090iBB50,HZB50..ARL,CHI¥3,740199301-200408

main04331-36100iBB50,58..(EUR,GEN)..6F¥6,000199907-200408

main04331-36150iBB42..RHD¥2,250200408-201501

W(EXHAUST BRAKE)

main04331-36150iBB42..LHD..WC¥2,250201501

W(*FGR=41:8)

main04331-36150iBB42..RHD..SRF..WC¥2,250201108-201501

main04331-36170iBB50..TD¥2,130200408-201501

main04331-36180iBB50..IV¥3,010200408-200608

main04331-36251iHZB50..GCC¥1,450200408-201501

W(EXHAUST BRAKE)

main04331-36261iBB50,58..CBU..6F¥2,490200408-200608

main04331-36370iXZB50..STD..GEN¥3,350200608-201501

main04331-36410iBZB40,50,HZB50..GEN¥1,970200408-201501

main04331-36420iBB42..LHD..HRF200408-201501

main04331-36420iBB42..LHD..WOC201501

W(*FGR=45:8)

main04331-37080iHZB50..LHD..HRF..WC..GEN¥2,420200908-201501

W(*FGR=41:7 & ABS)

33110TRANSMISSION ASSY, MANUAL

main33110-36A00iBB50..(EUR,GEN)..6F¥409,000200408-200608

H260

main33110-36A00iBB58¥409,000200408-200608

H260,W(215/70R17.5)

main33110-36A10iBB50,58..21S,23S¥409,000200408-200608

H260

main33110-36A20iXZB50..STD..GEN¥311,000200608-201108

M551

sub33110-36A21¥311,000

main33110-36A21iXZB40,5#..5F¥311,000201108-201309

M551

sub33110-36A22¥196,000

main33110-36A22iXZB50..IV¥196,000201309-201501

M551

main33110-36A50iXZB50..STD..GEN201501

M551,W(ABS)

main33110-3J260iHZB50..ARL¥287,000199301-199505

M155

main33110-3J270iHZB50..ARL¥287,000199301-199505

M155,W(EXHAUST BRAKE)

main33110-3J350iRZB40,50¥323,000199309-199505

M150

main33110-3J360iBB42..RHD..SRF¥239,000199505-201501

M152,*FGR=45:8,W(EXHAUST BRAKE)

main33110-3J360iBB42..RHD..WOC¥239,000201501

M152,W(*FGR=45:8 & EXHAUST BRAKE)

main33110-3J360iBB42..RHD..WOC¥239,000199505-201501

M152,W(EXHAUST BRAKE)

main33110-3J360iBB42..SCO¥239,000199505-199808

M152

main33110-3J370iBB42..WC..GCC¥287,000199505-199705

M152

main33110-3J370iBB42..LHD..WC..GEN¥287,000199505-199705

M152,*FGR=41:7 & W(5.50FXR16 DISC WHEEL)

main33110-3J370iBB42..LHD..WC..GEN¥287,000199505-199705

M152,*FGR=41:7

main33110-3J371iBB42..WC..GCC¥239,000199705-201501

M152,W(*FGR=45:8)

main33110-3J371iBB42..LHD..26S..WC;BB42..LHD..HRF..WOC¥239,000199705-200408

M152,*FGR=41:7

main33110-3J371iBB42..LHD..HRF¥239,000200408-201501

M152

main33110-3J380iBB42..LHD..WOC..GEN¥287,000199505-199705

M152,*FGR=45:8,W(EXHAUST BRAKE)

main33110-3J380iBB42..LHD..WOC..GEN¥287,000199505-199705

M152,W(EXHAUST BRAKE)

main33110-3J381iBB42..LHD..WOC..GEN¥239,000199705-201501

M152,W(EXHAUST BRAKE)

main33110-3J381iBB42..LHD..WOC¥239,000199907-200408

M152,W(*FGR=45:8 & EXHAUST BRAKE)

main33110-3J381iBB42..LHD..WOC¥239,000199705-201501

M152,*FGR=45:8,W(EXHAUST BRAKE)

main33110-3J390iHZB50..RHD..GEN..5F¥181,000199505-201501

M155,W(EXHAUST BRAKE)

main33110-3J400iHZB50..ARL¥287,000199505-199907

M155

main33110-3J410iHZB50..ARL¥289,000199505-200211

M155,W(EXHAUST BRAKE)

main33110-3J420iHZB50..RHD¥181,000199505-201501

M155

main33110-3J430iHZB50..LHD..GEN..5F¥287,000199505-199705

M155

main33110-3J431iHZB50..LHD..GEN¥181,000199705-201501

M155

main33110-3J440iHZB50..LHD..GEN..5F¥287,000199505-199705

M155,W(EXHAUST BRAKE)

main33110-3J441iHZB50..WOC¥181,000201501

M155,W(ABS & EXHAUST BRAKE)

main33110-3J441iHZB50..WOC¥181,000199705-201501

M155,W(EXHAUST BRAKE)

main33110-3J441iHZB50..WOC¥181,000201501

M155,W(*FGR=45:8 & EXHAUST BRAKE)

main33110-3J460iHZB50..GCC..5F¥287,000199505-199705

M155

main33110-3J461iHZB50..GCC¥287,000199705-201501

M155

main33110-3J470iHZB50..GCC..5F¥287,000199505-199705

M155,W(EXHAUST BRAKE)

main33110-3J471iHZB50..GCC¥287,000199705-201501

M155,W(EXHAUST BRAKE)

main33110-3J480iHZB50..RHD¥181,000200408-201108

M155,*FGR=41:7

main33110-3J480iHZB50..RHD..HRF..STD..WC..GEN..5F¥181,000199505-200408

M155,W(*FGR=41:7)

main33110-3J480iHZB50..SCO¥181,000199505-199705

M155,W/O(EXHAUST BRAKE)

main33110-3J490iHZB50..RHD..HRF..STD..WC..GEN..5F¥181,000199505-201108

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33110-3J490iHZB50..SCO¥181,000199505-199705

M155

main33110-3J510iHZB50..LHD..STD..WC..GEN..5F¥287,000199505-199705

M155,*FGR=41:7

main33110-3J511iHZB50..LHD..WC..GEN¥181,000201501

M155,W(*FGR=45:8 & ABS)

main33110-3J511iHZB50..WOC¥181,000201501

M155,W(*FGR=41:7 & ABS)

main33110-3J511iHZB50..LHD..WC..GEN¥181,000201501

M155,W(ABS)

main33110-3J511iHZB50..LHD..WC..GEN¥181,000201501

M155,W(*FGR=41:7)

main33110-3J511iHZB50..LHD..STD..WC..GEN¥181,000199705-201501

M155,*FGR=41:7

main33110-3J520iHZB50..LHD..STD..WC..GEN..5F¥287,000199505-199705

M155,*FGR=41:7 & W(EXHAUST BRAKE)

main33110-3J521iHZB50..WOC¥181,000201501

M155,W(ABS & EXHAUST BRAKE)

main33110-3J521iHZB50..LHD..STD..WC..GEN¥181,000199705-200408

M155,*FGR=41:7 & W(EXHAUST BRAKE)

main33110-3J521iHZB50..LHD..WC..GEN¥181,000200408-201501

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33110-3J521iHZB50..LHD..WC..GEN¥181,000201501

M155,W(*FGR=45:8 & ABS & EXHAUST BRAKE)

main33110-3J521iHZB50..LHD..WC..GEN¥181,000201501

M155,W(*FGR=41:7 & EXHAUST BRAKE)

main33110-3J521iHZB50..LHD..WC..GEN¥181,000201501

M155,W(*FGR=41:7 & ABS & EXHAUST BRAKE)

main33110-3J530iHZB50..RHD..TD¥287,000199505-199605

M155

main33110-3J540iHZB50..LHD..TD¥287,000199505-199605

M155

main33110-3J550iBB50..RHD..IV¥324,000199605-199907

M155

main33110-3J560iBB50..LHD..EUR¥324,000199605-199907

M155

main33110-3J580iBB50..5F..TDEFI;BB50..WOC..CBU..TD¥288,000199907-200408

M155,W(EXHAUST BRAKE)

main33110-3J580iBB50..5F..TDEFI;BB50..WOC..CBU..TD¥288,000199705-201501

M155

main33110-3J590iBB59¥289,000199705-200608

M155

main33110-3J600iBB43¥287,000199802-200108

M155

main33110-3J620iBB50,58..21S,23S¥409,000199907-200408

H260

main33110-3J630iBB58¥409,000200008-200408

H260,W(215/70R17.5)

main33110-3J630iBB50..(EUR,GEN)..6F..TDEFI¥409,000199907-200408

H260

main33110-3J640iTRB40,50¥288,000199907-201110

M156

sub33110-3J641

main33110-3J641iTRB40,50201110-201501

M156

main33110-3J650iBB42..LHD..WOC¥288,000200408-201108

M152,*FGR=43:7

main33110-3J650iBB42..LHD..WOC..GEN¥288,000199907-200408

M152,AXLE CODE=A05A

main33110-3J660iBZB40,50¥260,000200108-201501

M155

main33110-3J700iBB42..LHD..WOC¥288,000200408-201108

M152,*FGR=43:7,W(EXHAUST BRAKE)

main33110-3J700iBB42..LHD..WOC..GEN¥288,000199907-200408

M152,AXLE CODE=A05A & W(EXHAUST BRAKE)

main33110-3J710iHZB50..LHD..HRF..WOC¥264,000199908-200408

M155,AXLE CODE=A05A

main33110-3J710iHZB50..GCC¥264,000200408-201501

M155,*FGR=43:7

main33110-3J710iHZB50..GCC¥264,000201501

M155,W(ABS)

main33110-3J720iHZB50..GCC¥264,000201501

M155,W(ABS & EXHAUST BRAKE)

main33110-3J720iHZB50..HRF..WOC¥264,000200408-201501

M155,*FGR=43:7,W(EXHAUST BRAKE)

main33110-3J720iHZB50..LHD..HRF..WOC¥264,000199907-200408

M155,AXLE CODE=A05A & W(EXHAUST BRAKE)

main33110-3J730iBZB50¥288,000200211-201108

M155

main33120-3E400iRZB40,50¥287,000199505-199705

M150

main33120-3E401iRZB40,50¥287,000199705-199907

M150

main33120-3E410iBB40..WOC¥287,000199301-199505

M152

main33120-3E420iBB40..WOC¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E430iBB40..WC¥287,000199301-199505

M152

main33120-3E440iBB40..WC¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E450iBB42..RHD..WC..GEN¥287,000199301-199505

M152,*FGR=45:8,W(5.50FXR16 DISC WHEEL)

main33120-3E450iBB42..RHD..WOC¥287,000199301-199505

M152,W(5.50FXR16 DISC WHEEL)

main33120-3E460iBB42..RHD..WOC¥287,000199301-199505

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL)

main33120-3E460iBB42..RHD..WOC¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E470iBB42..WOC..GCC¥287,000199301-199505

M152,*FGR=45:8,W(5.50FXR16 DISC WHEEL)

main33120-3E470iBB42..WOC..GCC¥287,000199301-199505

M152

main33120-3E470iBB42..WOC..GCC¥287,000199301-199505

M152,W(5.50FXR16 DISC WHEEL)

main33120-3E480iBB42..LHD..WC¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E480iBB42..LHD..WC¥287,000199301-199505

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL)

main33120-3E490iBB42..RHD..SRF¥239,000199505-200408

M152,*FGR=45:8 & W(5.50FXR16 DISC WHEEL)

main33120-3E490iBB42..RHD..WOC¥239,000199505-201501

M152,W(5.50FXR16 DISC WHEEL)

main33120-3E490iBB42..RHD..WOC¥239,000199505-199907

M152

main33120-3E490iBB42..RHD..WC¥239,000201501

M152,W(5.50FX16 DISC WHEEL)

main33120-3E500iBB42..RHD..WC..GEN¥239,000199505-201501

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL)

main33120-3E500iBB42..RHD..WC¥239,000199505-201501

M152,W(EXHAUST BRAKE)

main33120-3E500iBB42..RHD..WC¥239,000201501

M152,W(EXHAUST BRAKE & 5.50FX16 DISC WHEEL)

main33120-3E510iBB42..RHD..WOC¥287,000199301-199505

M152,W(*FGR=41:7)

main33120-3E510iBB42..RHD..WOC¥287,000199301-199505

M152,*FGR=41:7,W(5.50FXR16 DISC WHEEL)

main33120-3E520iBB42..RHD..WOC¥287,000199301-199505

M152

main33120-3E520iBB42..SCO¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E520iBB42..SCO¥287,000199301-199505

M152,*FGR=45:8,W(EXHAUST BRAKE)

main33120-3E530iBB42..LHD..WOC..GEN¥287,000199301-199505

M152

main33120-3E530iBB42..WC..GCC¥287,000199301-199505

M152,W(*FGR=41:7)

main33120-3E530iBB42..WC..GCC¥287,000199301-199505

M152,*FGR=41:7,W(5.50FXR16 DISC WHEEL)

main33120-3E540iBB42..LHD..WC¥287,000199301-199505

M152,*FGR=45:8,W(EXHAUST BRAKE)

main33120-3E540iBB42..LHD..WOC..GEN¥287,000199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E550iBB42..LHD..WOC..GEN¥287,000199505-199705

M152,W(5.50FXR16 DISC WHEEL)

main33120-3E550iBB42..LHD..WOC..GEN¥287,000199505-199705

M152

main33120-3E550iBB42..LHD..WC¥287,000199505-199705

M152,*FGR=45:8 & W(5.50FXR16 DISC WHEEL)

main33120-3E551iBB42..LHD..WC¥239,000201501

M152,W(EXHAUST BRAKE & 5.50FX16 DISC WHEEL)

main33120-3E551iBB42..LHD..WC¥239,000199705-201501

M152

main33120-3E551iBB42..LHD..26S..WC¥239,000199907-200408

M152,*FGR=45:8 & W(5.50FX16 DISC WHEEL)

main33120-3E551iBB42..LHD..26S..WC¥239,000199705-201501

M152,W(5.50FXR16 DISC WHEEL)

main33120-3E551iBB42..LHD..WOC¥239,000201501

M152,W(EXHAUST BRAKE)

main33120-3E551iBB42..LHD..WOC¥239,000201501

M152,W(5.50FX16 DISC WHEEL)

main33120-3E560iBB42..LHD..WC¥287,000199505-199705

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL)

main33120-3E560iBB42..LHD..WC¥287,000199505-199705

M152,W(EXHAUST BRAKE)

main33120-3E561iBB42..WOC..GCC¥239,000199705-201501

M152,W(EXHAUST BRAKE & 5.50FX16 DISC WHEEL)

main33120-3E561iBB42..WOC..GCC¥239,000199705-201501

M152,W(EXHAUST BRAKE)

main33120-3E561iBB42..LHD..WOC¥239,000201501

M152

main33120-3E570iHZB50..RHD..GEN¥287,000199301-199505

M155,W/O(EXHAUST BRAKE)

main33120-3E570iHZB50..RHD..GEN¥287,000199301-199505

M155

main33120-3E580iHZB50..SCO¥287,000199301-199505

M155

main33120-3E580iHZB50..SCO¥287,000199301-199505

M155,W(EXHAUST BRAKE)

main33120-3E590iHZB50..LHD..GEN..5F¥287,000199301-199505

M155

main33120-3E600iHZB50..LHD..GEN..5F¥287,000199301-199505

M155,W(EXHAUST BRAKE)

main33120-3E620iHZB50..GCC..5F¥287,000199301-199505

M155

main33120-3E630iHZB50..GCC..5F¥287,000199301-199505

M155,W(EXHAUST BRAKE)

main33120-3E640iHZB50..RHD..HRF..STD..WC..GEN¥287,000199301-199505

M155,*FGR=41:7,W/O(EXHAUST BRAKE)

main33120-3E640iHZB50..SCO¥287,000199301-199505

M155,W(*FGR=41:7)

main33120-3E650iHZB50..RHD..HRF..STD..WC..GEN¥287,000199301-199505

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33120-3E650iHZB50..SCO¥287,000199301-199505

M155,W(*FGR=41:7)

main33120-3E670iHZB50..LHD..STD..WC..GEN..5F¥287,000199301-199505

M155,W(*FGR=41:7)

main33120-3E680iHZB50..LHD..STD..WC..GEN..5F¥287,000199301-199505

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33120-3E690iHZB50..RHD..TD¥287,000199301-199505

M155

main33120-3E700iHZB50..LHD..TD¥287,000199301-199505

M155

main33120-3E710iBB42..RHD..WOC¥239,000199505-201501

M152

main33120-3E710iBB42..RHD..WC¥239,000201501

M152,W(*FGR=45:8)

main33120-3E710iBB42..RHD..SRF¥239,000199505-200408

M152,W(*FGR=41:7)

main33120-3E710iBB42..RHD..SRF¥239,000199505-200408

M152,*FGR=41:7 & W(5.50FXR16 DISC WHEEL)

main33120-3E710iBB42..RHD..WC¥239,000200408-201501

M152,*FGR=45:8

2 parts on this diagram · 3 diagrams in section
