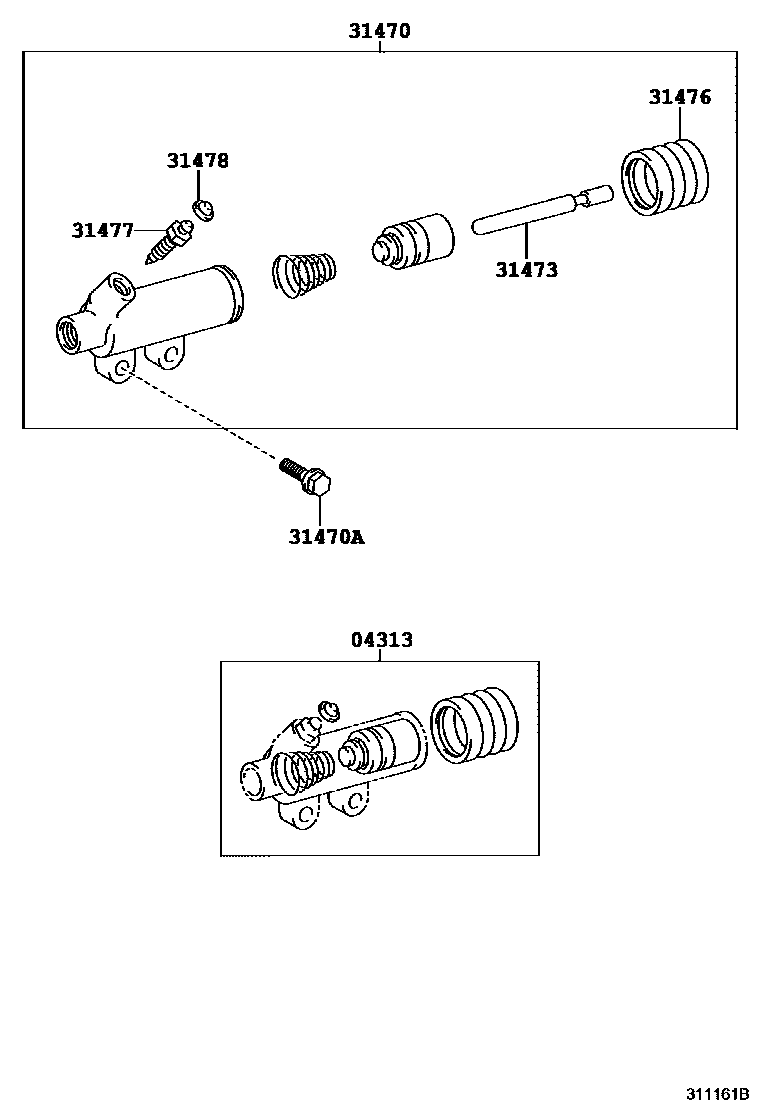

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iBB42..RHD;BB42..LHD..SRF¥800199301-201501

main04313-30130iRZB40..WOC..GCC;RZB40..22S..GEN¥990199309-200210

main04313-36130iHZB50..5F¥990199301-199408

sub04313-36180¥780

main04313-36150iBB50..EUR¥1,220199605-199907

main04313-36180iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC¥780199408-201501

main04313-37030iBB43,5#..GEN¥780199705-201501

main04313-37090iXZB50..IV¥780200801-201501

main04313-53010iTRB40,50¥780200210-201501

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36213iBB50..EUR¥6,800199605-199907

main31470-36221iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC¥6,000199301-201501

main31470-36290iHZB50..5F¥6,700199301-199408

sub31470-36291¥4,040

main31470-36291iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC¥4,040199408-201501

main31470-36310iRZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC¥9,200199309-200210

sub31470-36311¥5,700

main31470-36311iRZB40,50..GCC,GEN¥5,700200210-201501

main31470-37040iBB50..WOC..6F;BB50..STD..WC..IV¥5,500199705-201501

main31470-37080iXZB50..STD..GEN¥6,700200608-201310

sub31470-37081¥6,700

main31470-37081iXZB40,5#..5F¥6,700201311-201501

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iXZB50..IV¥160199301-201501

*8-1.25PX25-25

main91611-G0820iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC¥160199301-201501

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iBB50..WOC..6F;BB50..STD..WC..IV¥420199705-201501

main31473-22010iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC¥720199301-201501

main31473-32010iRZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC¥450199309-200210

main31473-35050iRZB40..HRF..GCC¥250200210-201501

main31473-37050iXZB50..IV¥620200608-201501

main31473-60080iHZB50..ARL¥530199301-201501

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZB50..IV¥230199301-201501

main31476-36010iHZB50..RHD..EX;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN¥460199301-201501

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRZB40..HRF..GCC¥180199301-201501

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZB50..STD..GEN¥160199301-201501

7 parts on this diagram · 1 diagram in section
