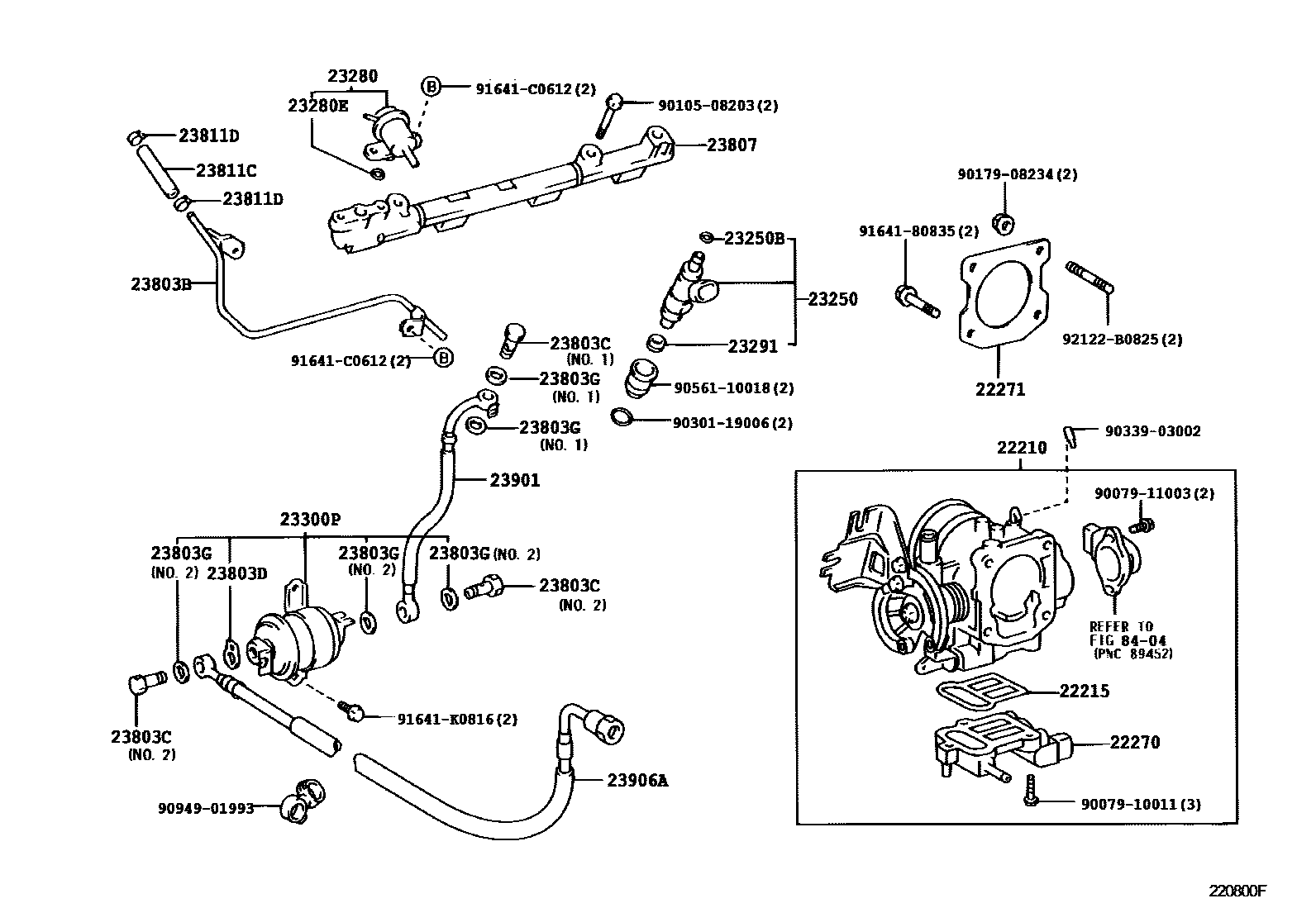

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

22210BODY ASSY, THROTTLE

main22210-75260i3RZFE..RZB40,50199907-200708

22215GASKET, THROTTLE BODY COVER

main22215-7A680i3RZFE..RZB40,50199907-200708

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-75050i3RZFE..RZB40,50199907-200303

sub22270-75051

main22270-75051i3RZFE..RZB40,50200303-200708

22271GASKET, THROTTLE BODY

main22271-0C020i2TRFE..TRB40,50200708-201110

sub22271-0C021

main22271-0C021i2TRFE..TRB40,50201110-201501

main22271-75020i3RZFE..RZB40,50199907-200708

23250INJECTOR ASSY, FUEL

main23209-09055i2TRFE..TRB40,50..GEN200708-201501

main23209-79145i3RZFE..RZB40,50199907-200408

main23209-79155i2TRFE..TRB40,50..GCC200708-201005

sub23209-79205

main23209-79165i3RZFE..RZB40,50200408-200708

main23209-79186i2TRFE..TRB40,50..GCC201005-201501

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i3RZFE..RZB40,50199907-200607

main90301-07037i3RZFE..RZB40,50200607-201501

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75020i3RZFE..RZB40,50199907-200708

main23280-75040i2TRFE..TRB40,50200708-201501

sub23280-75130

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07024i3RZFE..RZB40,50199907-200607

main90301-07037i3RZFE..RZB40,50200607-201501

23291INSULATOR, INJECTOR VIBRATION

main23291-73010i3RZFE..RZB40,50..GCC,GEN199907-201501

23300PFILTER, FUEL(FOR EFI)

main23300-75170i2TRFE..TRB40,50200708-201501

main23300-79525i3RZFE..RZB40,50199907-200404

main23300-79615i3RZFE..RZB40,50200404-200708

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-75020i3RZFE..RZB40,50199907-200708

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-12033i3RZFE..RZB40,50199907-200708

NO.1

main90401-12097i3RZFE..RZB40,50199907-200708

NO.2

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-12026i3RZFE..RZB40,50199907-200708

23803GGASKET(FOR FUEL HOSE)

main23279-74010i3RZFE..RZB40,50199907-200708

NO.1

main90430-12026i3RZFE..RZB40,50199907-200708

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75021i3RZFE..RZB40,50..GCC,GEN199907-200309

sub23807-75022

main23807-75022i3RZFE..RZB40,50200309-200708

main23807-75050i2TRFE..TRB40,50200708-201409

sub23807-75052

main23807-75052i2TRFE..TRB40,50201410-201501

sub23807-75082

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main90445-12290i3RZFE..RZB40,50199907-200708

L=120

23811DCLIP, HOSE(FOR FUEL HOSE)

main96135-51100i3RZFE..RZB40,50199907-200708

23901TUBE SUB-ASSY, FUEL

main23901-75050i3RZFE..RZB40,50199907-200708

23906AHOSE SUB-ASSY, FUEL

main23906-75090i3RZFE..RZB40,50199907-200708

8404

9007910011

main90079-10011

9007911003

main90079-11003

9010508203

main90105-08203

9017908234

main90179-08234

9030119006

main90301-19006

9033903002

main90339-03002

9056110018

main90561-10018

9094901993

main90949-01993

9164180835

main91641-80835

91641C0612

main91641-C0612

91641K0816

main91641-K0816

92122B0825

main92122-B0825

32 parts on this diagram · 5 diagrams in section
