MECHANICAL GOVERNOR

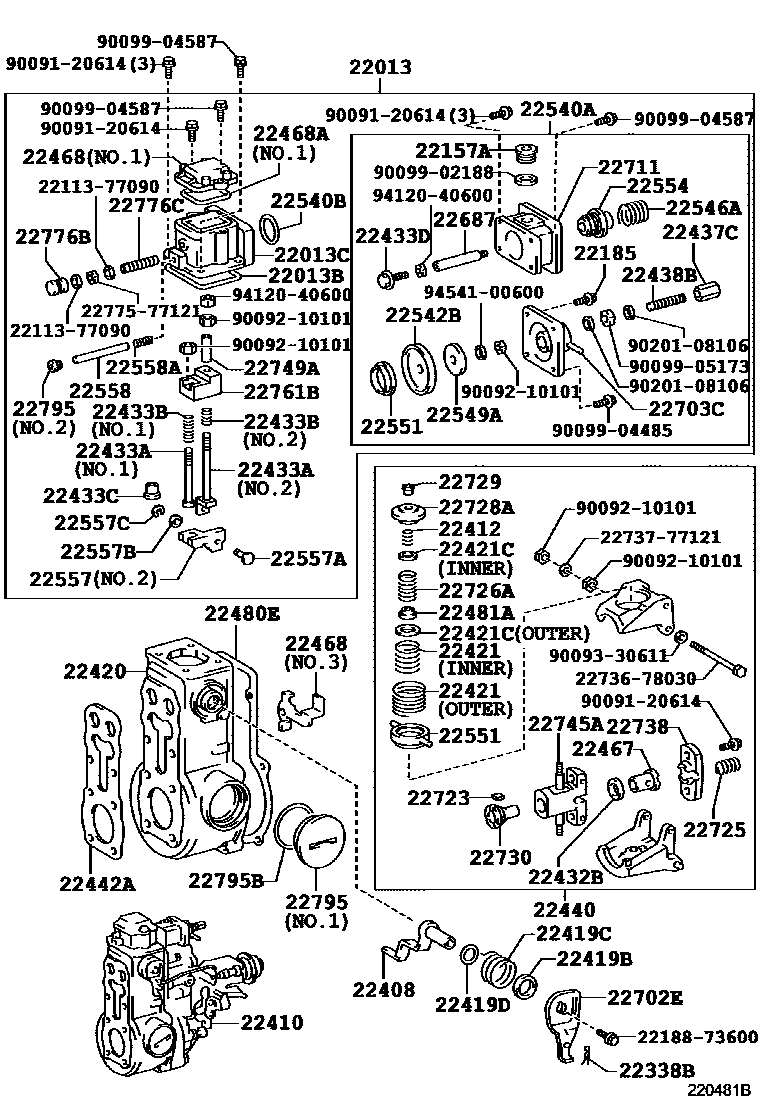

Parts diagram
22013HOUSING SUB-ASSY, FULLROAD STOPPER
main22306-5C350i199605-199703
main22306-5C351i199703-200408
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
main22442-78360i200406-200408
subS2284-72690
main90099-14081i199605-200406
sub22442-78360
22013CHOUSING, FULLROAD STOPPER, NO.2
main22559-5C350i199605-200408
22157APLUG(FOR NB BOOST COMPENSATOR)
main22157-5C360i199605-200408
22185PLATE, TAPPET ADJUSTING SHIM(FOR NB BOOST COMPENSATOR)
main22185-73500i199605-200408
22338BPIN, LEVER CONECTING
main22338-54410i199605-200408
22408ARM, STOPPER
main22408-78030i199605-200408
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
main22410-5C350i199605-200408
22412SPRING, MECHANICAL GOVERNOR
main22412-78030i199605-200408
22419BWASHER, PLATE(FOR STOPPER LEVER)
main90099-01369i199605-200408
T=0.20
main90099-01381i199605-200408
T=0.50,OD=16
main90099-01521i199605-200408
T=0.50
main90099-02315i199605-200408
T=0.10
22419CSPRING, RETURN(FOR STOPPER LEVER)
main22432-78050i199605-200408
22419DRING, O(FOR STOPPER LEVER)
main90099-14005i199605-200408
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
main22401-5C350i199605-200408
22421SPRING, IDLING
main22725-5C350i199605-200408
OUTER
main22725-5C360i199605-200408
INNER
22421CWASHER, IDLING SPRING
main22416-78050i199605-200408
T=1.00,OUTER
subS2287-71890
main22416-78051i199605-200408
T=1.00,INNER
subS2287-71900
main22737-5C350i199605-199907
T=0.3,INNER
main22737-5C350i199907-200408
T=0.3
main22737-5C360i199907-200408
T=0.2
main22737-5C360i199605-199907
T=0.2,INNER
main22737-78030i199907-200408
T=0.20
subS2287-71270
main22737-78030i199605-199907
T=0.20,OUTER
subS2287-71270
main22737-78031i199605-200408
T=0.40,OUTER
subS2287-71280
main22737-78032i199605-200408
T=0.60,OUTER
subS2287-71290
main22737-78033i199605-200408
T=0.40,INNER
subS2287-71300
main22737-78034i199605-200408
T=0.60,INNER
22432BSHIM
main22713-58230i199605-200408
T=1.60
main22713-58231i199605-200408
T=1.65
main22713-58232i199605-200408
T=1.70
main22713-58233i199605-200408
T=1.75
main22713-58234i199605-200408
T=1.80
main22713-58235i199605-200408
T=1.85
main22713-58236i199605-200408
T=1.90
main22713-58237i199605-200408
T=1.95
main22713-58238i199605-200408
T=2.00
main22713-58239i199605-200408
T=2.10
main22714-58230i199605-200408
T=2.20
main22714-58231i199605-200408
T=2.30
main22714-5C351i199605-200408
T=2.05
main22714-5C352i199605-200408
T=2.15
main22714-5C353i199605-200408
T=2.25
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
main22433-5C350i199605-200408
NO.2
main22433-78031i199605-200408
NO.1
22433BSPRING(FOR ADAPTER SCREW)
main22411-5C350i199605-200408
NO.2
main22411-78030i199605-200408
NO.1
22433CBUSH(FOR ADAPTER SCREW)
main22554-78030i199605-200408
22433DADAPTER, NB BOOST COMPENSATOR
main22433-5C360i199605-200408
22437CNUT, CAP(FOR NB BOOST COMPENSATOR)
main22437-5C441i199701-200408
main22437-77130i199605-199701
22438BSCREW, STOP(FOR NB BOOST COMPENSATOR)
main22438-54260i199605-199701
main22438-5C440i199701-200408
22440FLYWEIGHT SUB-ASSY
main22720-5C350i199605-200408
22442AGASKET, GOVERNOR
main22561-5C350i199605-200408
22467NUT, ROUND
main22722-5C350i199605-200408
22468COVER, PLATE
main22458-5C350i199605-200408
NO.3
main22458-78030i199605-200408
NO.2
main22555-5C350i199605-200408
NO.1
22468AO, RING
main22442-5C360i200406-200408
NO.1
main90099-14039i199605-200406
NO.1
sub22442-5C360
main90099-14069i199605-200408
NO.2
22480COVER SUB-ASSY, GOVERNOR
main22790-5C350i199605-200408
22480EGASKET, GOVERNOR COVER
main22774-58270i199605-200408
22481ASEAT, SPRING, INNER
main22481-58230i199605-200408
22540ACOMPENSATOR SUB-ASSY, BOOST(FOR NB PUMP)
main22540-5C360i199605-199701
sub22540-5C440
main22540-5C440i199701-200408
22540BRING, O(FOR NB BOOST COMPENSATOR)
main96711-24026i199605-200408
22542BDIAPHRAGM, NB BOOST COMPENSATOR
main22542-54260i199605-200408
22546ASPRING(FOR NB BOOST COMPENSATOR)
main22546-5C350i199605-200408
22549AWASHER, THRUST(FOR NB BOOST COMPENSATOR)
main22549-17140i199605-200408
22551SEAT, SPRING(FOR FLYWEIGHT)
main22551-5C350i199605-200408
BOOST COMPENSATOR
main22551-78030i199605-200408
FLYWEIGHT
22554BUSHING(FOR NB BOOST COMPENSATOR)
main22554-5C350i199605-200408
22557CAM, FULL STOP
main22456-5C360i199605-200408
NO.1
main22557-5C350i199605-199703
NO.2
main22557-5C351i199703-200408
NO.2
22557APIN, CONNECTING(FOR FULL STOP CAM)
main22423-78030i199605-200408
22557BWASHER, PLATE(FOR CONNECTING PIN)
main90099-01334i199605-200408
T=0.05
main90099-01540i199605-200408
T=0.10
main90099-01541i199605-200408
T=0.20
22557CRING, E(FOR CONNECTING PIN)
main22421-47030i199605-200408
22558SHAFT, SLIDING BLOCK
main22558-5C350i199605-200408
22558ASPRING(FOR SLIDING BLOCK SHAFT)
main22411-5C360i199605-200408
22687ROD, PUSH(FOR BELLOWS)
main22687-5C350i199605-200408
22702LEVER ASSY, FLOATING
main22702-78030i199605-200408
22702ELEVER SUB-ASSY, CONTROL
main22490-5C350i199605-200408
22703CCOVER SUB-ASSY, GOVERNOR
main22703-5C350i199605-200408
22711HOUSING, NB BOOST COMPENSATOR
main22711-5C350i199605-200408
22723DAMPER, FLYWEIGHT HOLDER
main22723-5C350i199605-200408
22725SPRING, IDLING
main22725-5C351i199605-200408
22726ASPRING, SPEED CONTROL
main22726-5C350i199605-200408
22728AGUIDE, SPRING
main22728-78031i199605-200408
22729NUT, ADJUSTING(FOR FLYWEIGHT)
main22729-5C440i199701-200408
main22729-78030i199605-199701
22730BUSHING ASSY, CAMSHAFT
main22730-5C350i199605-200408
22738BUSHING, GUIDE(FOR FLYWEIGHT)
main22738-5C350i199605-200408
22745AFLYWEIGHT, DISTRIBUTIVE PUMP
main22745-5C350i199605-200408
22749ACOLLAR, THRUST(FOR NB INJECTION PUMP)
main22749-5C350i199605-200408
22761SLIDER(FOR SPEED CONTROL)
main22761-78031i199605-200408
22761BBLOCK, SLIDING
main22761-5C350i199605-200408
22776BNUT, CAP(FOR SCREW STOPPER)
main22437-5C440i199701-200408
main22777-5C360i199605-199701
22776CSCREW, STOPPER
main22438-5C350i199605-199703
main22776-78034i199703-200408
22795PLUG, SCREW
main22795-5C350i199605-200408
NO.2
main22795-77121i199605-200408
NO.1
22795BGASKET, SCREW PLUG
main22561-78030i199605-200408
2211377090
main22113-77090
2218873600
main22188-73600
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
9009120614
main90091-20614
9009210101
main90092-10101
9009330611
main90093-30611
9009902188
main90099-02188
9009904485
main90099-04485
9009904587
main90099-04587
9009905173
main90099-05173
9020108106
main90201-08106
9412040600
main94120-40600
9454100600
main94541-00600

78 parts on this diagram · 4 diagrams in section
