VACUUM PUMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

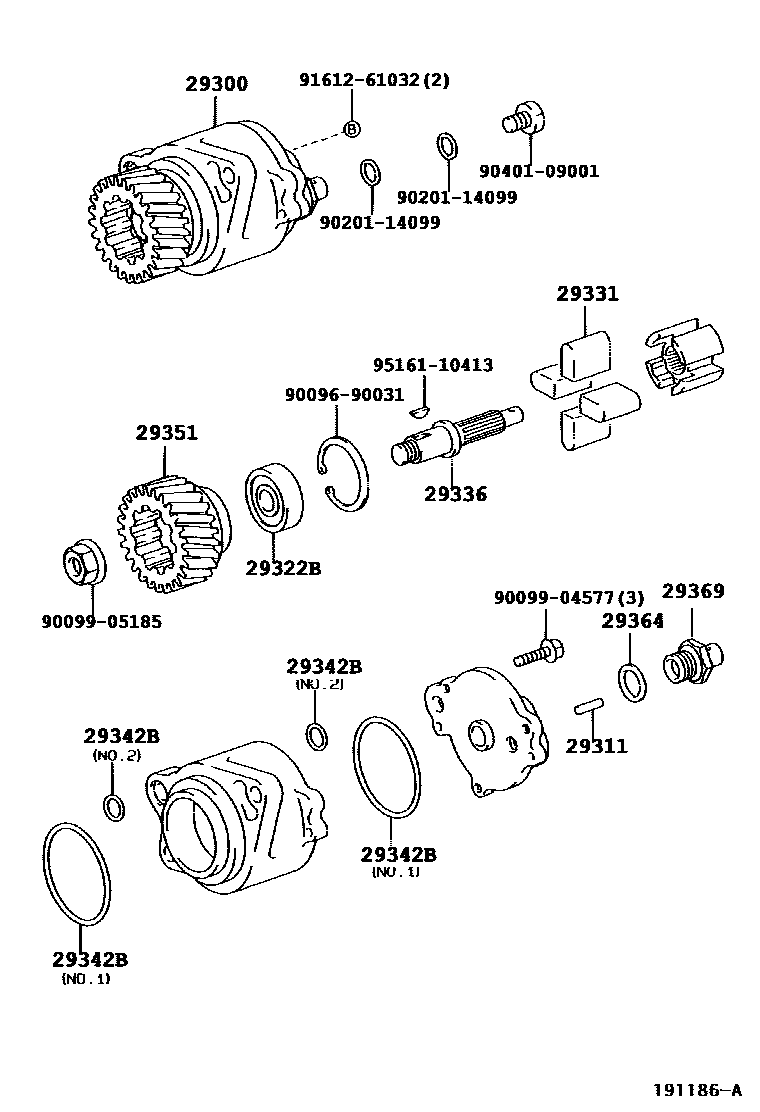

29300PUMP ASSY, VACUUM

main29300-17010i1HZ..HZB50199301-201612

main29300-58030i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-199902

sub29300-58070

main29300-58040i15BFTE..BB5#199907-200608

main29300-58050i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199301-199902

sub29300-58060

main29300-58060i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199902-201612

main29300-58070i15BFT..BB50..STD..GEN..CBU..5F199902-201501

main29300-78060iN04C..XZB40,5#200608-201010

sub29300-78061

main29300-78061iN04C..XZB40,5#201010-201202

sub29300-E0051

main29300-E0051iN04C..XZB40,5#201309-201505

sub29300-E0090

sub29300-E0100

main29300-E0090iN04C..XZB40,5#201506-201612

main29300-E0100iN04C..XZB40,5#201202-201309

sub29300-E0051

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..(20S,22S)..GEN;14B,15BFT..BB4#,50..17S,19S,22S;14B,1HZ..BB42,HZB199301-201612

mainSM21200518iN04C..XZB40,5#201309-201506

29322BBEARING, VACUUM PUMP

main90099-10185i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199301-201501

mainS291721160iN04C..XZB40,5#..ARL,GEN,TAIW201309-201506

29331BLADE, VACUUM PUMP, A

main29331-27010i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199902-201612

main29331-58050i14B,3B..BB4#199301-199405

main29331-67020iN04C..XZB50..STD..GEN199405-201612

main29331-EV020iN04C..XZB40,5#201506-201612

mainS293311100iN04C..XZB50..IV201309-201506

29336SHAFT, VACUUM PUMP

main29336-58040i15BFT..BB50..CHI199907-201501

main29336-58050i1HZ..HZB50199301-201501

main29336-58060i14B,15BFT,3B..BB4#,5#199902-199911

sub29336-58040

mainS293361030iN04C..XZB50..IV201309-201506

29342PACKING, VACUUM PUMP

main29343-EV020iN04C..XZB40,5#201202-201309

sub29343-EV030

main29343-EV030iN04C..XZB40,5#201506-201612

mainSZ01046050iN04C..XZB40,5#201309-201506

29342BRING, O

main29342-17010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201612

NO.2

main29342-58010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201612

NO.1

main29342-64010i14B,15BFT,3B..BB4#,5#199301-201612

NO.2

mainSZ01046051iN04C..XZB40,5#201309-201506

29351GEAR, VACUUM PUMP

main29351-17010i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

main29351-58050i14B,15BFT,3B..BB4#,5#199301-201501

main29351-78061iN04C..XZB40,5#201010-201202

mainS136331050iN04C..XZB40,5#..ARL,GEN,TAIW201309-201506

29364WASHER, VACUUM PUMP

main29364-66010iN04C..XZB40,5#199301-201612

29369VALVE SUB-ASSY, CHECK

main29369-64030i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..(20S,22S)..GEN;14B,15BFT..BB4#,50..17S,19S,22S;14B,1HZ..BB42,HZB199301-201612

main29369-EV020iN04C..XZB40,5#201202-201309

sub29369-EV060

main29369-EV060iN04C..XZB40,5#201506-201612

mainS293011270iN04C..XZB50..IV201309-201506

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161261032

main91612-61032

9516110413

main95161-10413

17 parts on this diagram · 7 diagrams in section
