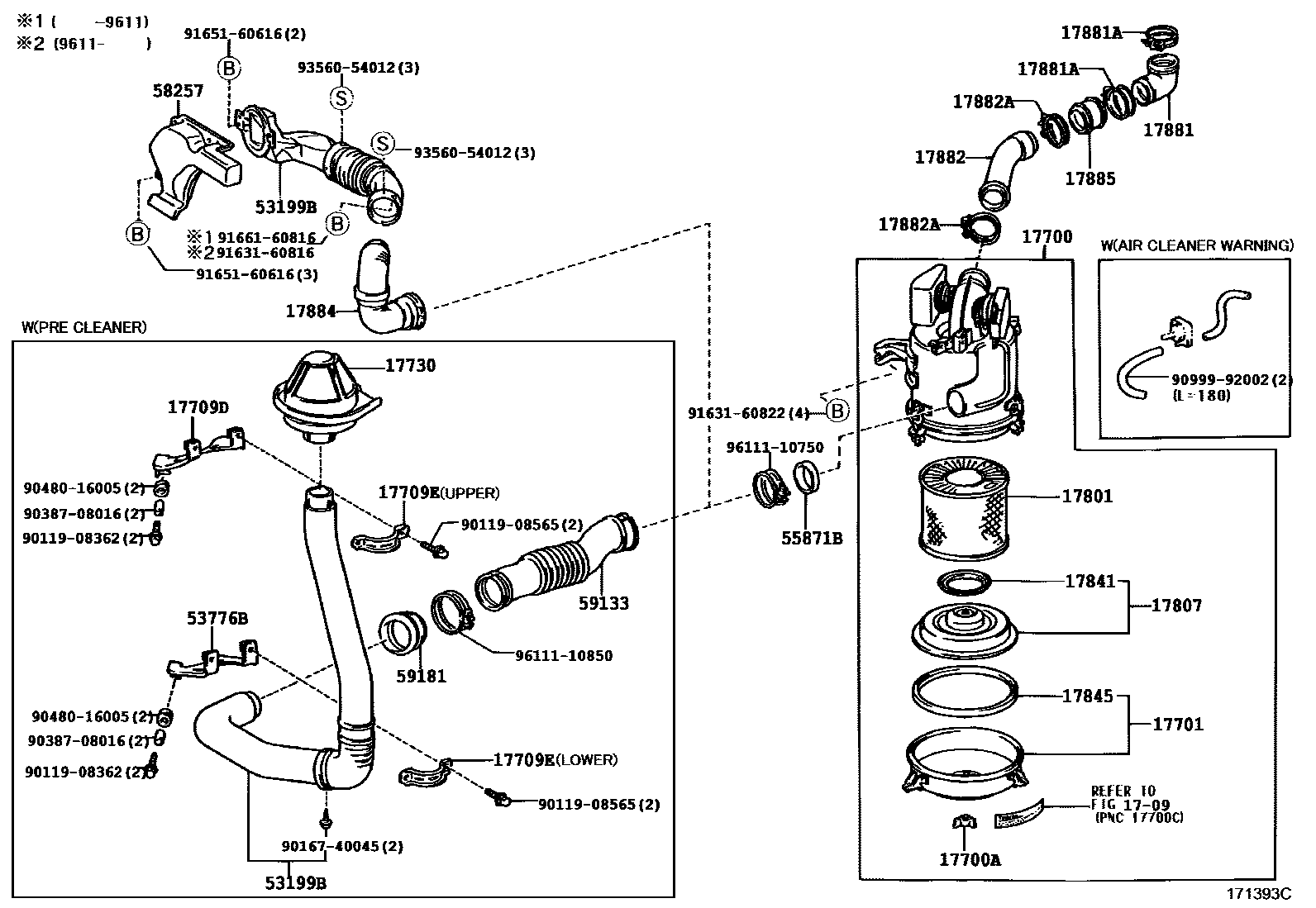

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1W(PRE CLEANER) 0010 1 0011 1 0012 1 0013 1 0014 1W(PRE AIR CLEANER) 0015 1 0016 1W(PRE AIR CLEANER) 0017 1 0018 1 0019 1W(PRE AIR CLEANER) 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1W/PRECLEANER 0027 1 0028 1 0030 1 0031 1AIR CLEANER CASE & INTERCOOLE0032 1AIR INTAKE DUCT

1709

17700CLEANER ASSY, AIR

main17700-17150i1HZ..HZB50199301-199907

sub17700-17260

main17700-17160i1HZT..HZB50199301-199605

main17700-17240i15BFTE..BB50..IV199907-200608

main17700-17260i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-200908

main17700-17261i1HZ..HZB50200908-201501

main17700-48140i1BZFPE..BZB40200108-200203

sub17700-48141

main17700-48141i1BZFPE..BZB40,50200203-200303

main17700-48142i1BZFPE..BZB50..EX200303-201308

sub17700-48152

main17700-48152i1BZFPE..BZB40,50201308-201612

sub17700-48153

main17700-58390i14B,3B..BB40,42199301-199907

sub17700-58690

main17700-58580i15BFT..BB50..EUR199605-199907

main17700-58630i15BFT..BB43,5#..GEN199705-199907

sub17700-58680

main17700-58680i15BFT..BB50199907-200908

main17700-58681i15BFT..BB50200908-201501

main17700-58690i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199907-200908

main17700-58691i14B..BB42200908-201501

main17700-75060i3RZF..RZB40,50..GEN199309-199705

W(HOT AIR INTAKE)

main17700-75060i3RZF..RZB50..GEN;3RZF..RZB40..SRF..WC..GEN199309-199505

CHINA SPEC OR W(HOT AIR INTAKE)

main17700-75061i3RZF..RZB40,50..GEN199705-199907

W(HOT AIR INTAKE)

main17700-75080i3RZF..RZB40,50199309-199705

main17700-75081i3RZF..RZB40,50199705-199907

main17700-75320i3RZFE..RZB40,50..CHI199907-200708

main17700-75490i2TRFE..TRB40,50200708-201501

main17700-78300iN04C..XZB50..IV200608-201311

main17700-78310iN04C..XZB50..WOC..CBU200608-201501

main17700-78410iN04C..XZB40,50..LHD..GEN201501

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i1BZFPE..BZB40,50200203-200303

NO.2

main90175-06019i1BZFPE..BZB50..EX200303-201501

NO.2

main90175-08008i1HZ..HZB50200203-201501

NO.1

main90175-08008i1HZ#..HZB50199301-201501

17701CASE SUB-ASSY, AIR CLEANER

main17701-17160i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-201501

main17701-17170i15BFTE..BB50..IV199907-200608

main17701-44263i14B,3B..BB40,42199301-199907

main17701-58350i15BFT..BB50..STD..WC..IV..5F199907-201501

main17701-58360i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199907-201501

main17701-68101i15BFT..BB43,5#199301-199907

main17701-75150i3RZFE..RZB40..HRF..GCC199907-200708

17709DBRACKET, AIR CLEANER INLET, NO.1

main53772-36010i3RZF..RZB40,50199301-199409

sub53772-36011

main53772-36011i1HZ..HZB50..GCC,GEN199409-199505

main53772-36020i14B..BB42..GCC,GEN199301-199409

sub53772-36021

main53772-36021i14B..BB42..GCC,GEN199409-199505

main53772-36030i1HZ..HZB50..(20S,30S)..(GCC,GEN)199505-201501

main53772-36030iN04C..XZB40,50..LHD..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

main53772-36040i14B..BB42..GEN199505-201501

17709EBRACKET, AIR CLEANER INLET, NO.2

main53773-60020i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F199505-201501

UPPER SIDE

main53773-60020i2TRFE..TRB40,50..GEN201501

W(SCHNORKEL TYPE AIR CLEANER),UPPER SIDE

main53773-90B00i14B..BB42..GEN199505-201501

LOWER SIDE

main53773-90B00i14B..BB42..GEN201501

W(SCHNORKEL TYPE AIR CLEANER),LOWER SIDE

main53773-90B00i1HZ..HZB50..GCC,GEN199301-199505

UPPER & LOWER

main53773-90B00i3RZF..RZB40,50199309-199505

17730PRECLEANER ASSY, AIR W/HOSE

main17730-58020i3RZF..RZB40,50199301-199505

main17730-66010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199505-201501

main17730-66010i2TRFE..TRB40,50..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56050i1BZFPE..BZB40,50201308-201501

main17801-58010i1BZFPE..BZB40,50..STD199301-201501

main17801-58030i15BFTE..BB50..IV199605-201311

main17801-58040iN04C..XZB50..STD..GEN199907-201501

main17801-61030i1HZ..HZB50..ARL199301-201501

main17801-68030i1HZT..HZB50199301-199605

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i14B,3B..BB40,42199301-199907

main17807-56020i2TRFE..TRB40,50199907-201501

main17807-58020i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-201501

main17807-68010i15BFT..BB43,5#199301-199907

17841GASKET, FILTER ELEMENT

main17841-44030i14B,3B..BB40,42199301-201501

main17841-68010i3RZFE..RZB40,50..CHI199301-201501

17845GASKET, AIR CLEANER CAP

main17845-17010i15BFT..BB43,5#199411-199907

main17845-48020i1BZFPE..BZB40,50..STD200303-201501

main17845-56020i2TRFE..TRB40,50199301-201501

main17845-58010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-201501

main17845-68020i3RZF..RZB40,50199301-199411

sub17845-17010

17881HOSE, AIR CLEANER, NO.1

main17881-17050i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201307

main17881-17070i1HZ..HZB50201307-201501

main17881-48060i1BZFPE..BZB40,50200108-200304

sub17881-48061

main17881-48061i1BZFPE..BZB40,50200304-201501

main17881-58200i3B..BB40199301-199907

main17881-58210i14B..BB42199301-201501

main17881-58350i15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F199605-201501

main17881-75040i3RZF..RZB40,50199309-199705

main17881-75041i3RZF..RZB40,50199705-199905

sub17881-75042

main17881-75042i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199905-200708

main17881-75230i2TRFE..TRB40,50200708-201501

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i15BFT..BB50..CHI199605-201501

ENGINE SIDE

main96111-10690i3B..BB40199301-199907

ENGINE SIDE

main96111-10730i3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC199309-200708

CONNECTOR SIDE

main96111-10750i1BZFPE..BZB50..EX200108-201501

main96111-10780i14B..BB42199302-201501

PIPE SIDE

main96111-10780i2TRFE..TRB40,50200708-201501

NO.1

main96111-10780i14B,3B..BB4#199301-199302

AIR CLEANER SIDE

main96111-10800i1HZ..HZB50..ARL199301-201501

main96111-10830i3RZF..RZB40,50199309-200708

AIR CLEANER SIDE

main96111-10880i2TRFE..TRB40,50200708-201501

NO.2

main96111-10900i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199605-201501

AIR CLEANER SIDE

main96111-10900i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199301-201501

ENGINE SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-17020i1HZ#..HZB50199301-199907

sub17882-17021

main17882-17021i1HZ..HZB50199907-201501

main17882-58130i14B..BB42..LHD..HRF199301-201501

main17882-75030i3RZF..RZB40,50..HRF..GEN199505-199907

W(HOT AIR INTAKE)

main17882-75030i3RZF..RZB50..GEN;3RZF..RZB40..SRF..WC..GEN199309-199505

CHINA SPEC OR W(HOT AIR INTAKE)

main17882-75040i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200708

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036i3RZF..RZB40,50..HRF..GEN199505-199907

W(HOT AIR INTAKE)

main90460-47036i3RZF..RZB40..HRF..GEN;3RZF..RZB40..WOC..GEN199309-199505

CHINA SPEC OR W(HOT AIR INTAKE)

main96111-10750i14B..BB42..LHD..HRF199501-201501

AIR CLEANER SIDE

main96111-10780i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199501-201501

PIPE SIDE

main96111-10780i14B,3B..BB4#199301-199501

main96111-10780i1HZ#..HZB50199301-201501

NO.1

main96111-10800i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200708

main96111-10900i1HZ..HZB50..ARL199301-201501

NO.2

17884HOSE, AIR CLEANER, NO.4

main59132-36010i1BZFPE..BZB50..EX199301-201108

main59132-36020iN04C..XZB50..STD..GEN199301-201311

main59132-36050i2TRFE..TRB40,50200708-201108

17885PIPE, AIR CLEANER

main17885-17010i1HZ..HZB50199301-201501

53199BDUCT SUB-ASSY, COOL AIR INTAKE

main53207-36020iBB42,BZB40,50..STD199301-201108

main53207-36030iHZB50..ARL199301-201311

main53207-36040iRZB40..WOC..GCC;RZB40..22S..GEN199309-200708

main53207-36050iBB42..GCC,GEN199301-199505

COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER)

main53207-36060iHZB50..GCC,GEN199301-199505

COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER)

main53207-36080iBB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN199505-201501

COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER)

main53207-36080iBB42..GEN201501

main53207-36090iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199505-201501

COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER)

main53207-36090iTRB40,50..GEN200708-201501

W/PRECLEANER

main53207-36090iTRB40,50..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

main53207-36150iTRB40,50200708-201108

53776BBRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2

main53776-36020iHZB50..GCC,GEN199301-199409

sub53776-36021

main53776-36021iXZB40,50..LHD..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

main53776-36021iRZB40,50199409-201501

main53776-36030iBB42..GCC,GEN199301-199409

sub53776-36031

main53776-36031iBB42..GCC199409-201501

55871BSEAL, AIR DUCT

main55871-36020iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199301-201501

58257PLATE, AIR CLEANER HOUSE

main58257-36020iBB50..CHI199301-200708

main58257-36030iBZB50..EX199301-200708

main58257-36050iTRB40,50200708-201501

main58257-36070iBB42..LHD..HRF200708-201501

59133HOSE, COOL AIR INTAKE, NO.3

main59133-36010iHZB50..GCC,GEN199301-199505

main59133-36020iBB42..GCC,GEN199301-199505

main59133-36030iRZB40,50199309-199505

main59133-36040iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199505-201501

main59133-36050iHZB50..(20S,30S)..(GCC,GEN)199505-201501

main59133-36050iHZB50..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

main59133-36060iRZB50;RZB40..GEN;RZB40..SRF..GCC199505-200708

main59133-36070iTRB40,50..GEN200708-201501

59181SEAL, AIR CLEANER INLET DUCT, NO.1

main59181-36010iBB50..CHI199505-201501

main59181-36010iTRB40,50..GEN201501

W(SCHNORKEL TYPE AIR CLEANER)

main90480-99006iRZB40,50199301-199505

9011908362

main90119-08362

9011908565

main90119-08565

9016740045

main90167-40045

9038708016

main90387-08016

9048016005

main90480-16005

9099992002

main90999-92002

9163160816

main91631-60816

9163160822

main91631-60822

9165160616

main91651-60616

9166160816

main91661-60816

9356054012

main93560-54012

9611110750

main96111-10750

9611110850

main96111-10850

36 parts on this diagram · 31 diagrams in section
