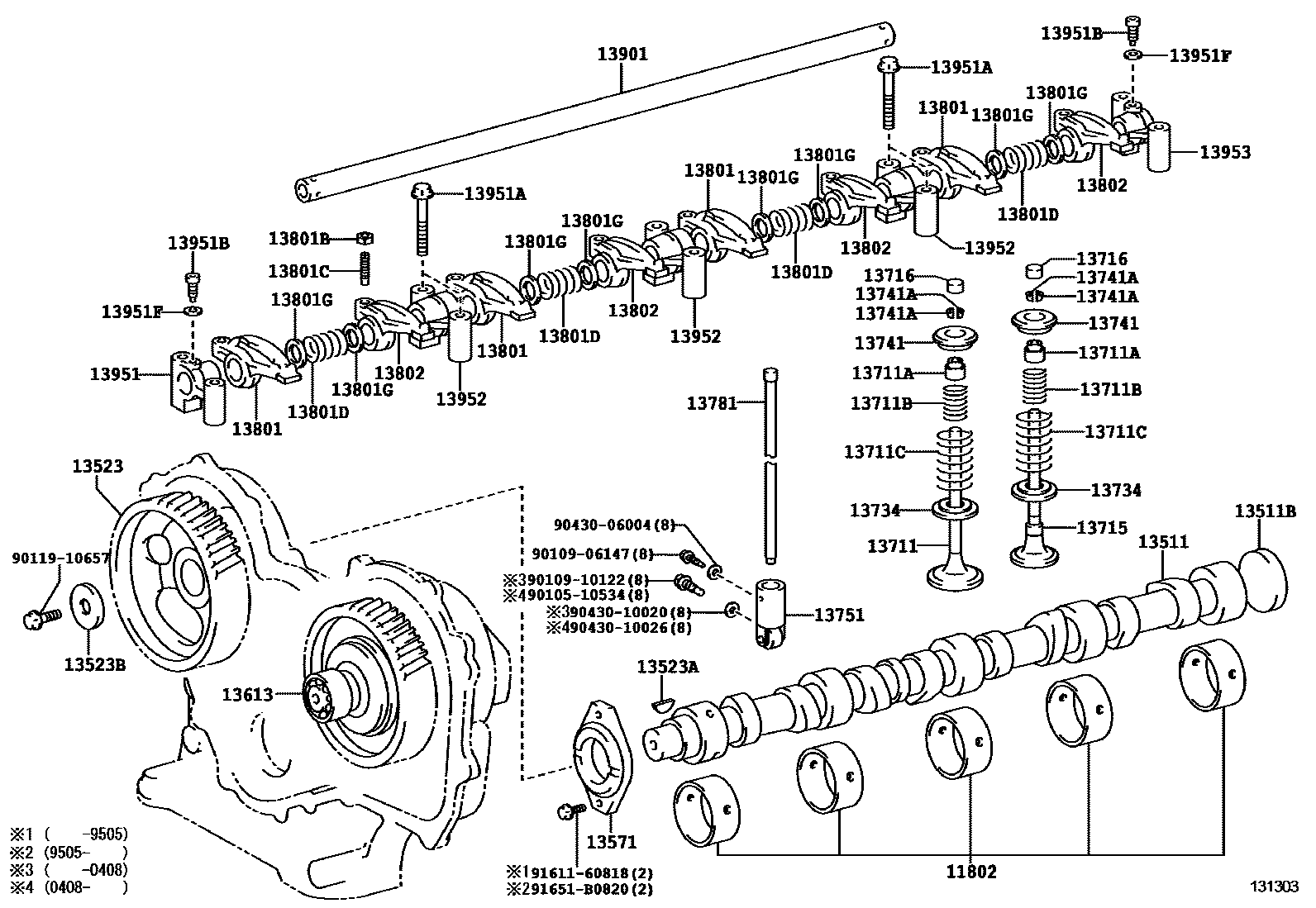

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

11802BEARING SET, CAMSHAFT

main11801-17010i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

STD

main11802-56030i14B..BB42..LHD..HRF..26S199705-199905

STD,YOJO SPEC

main11802-56030i14B,15BFT,3B..BB4#,5#199301-199905

STD

main11802-56031i1BZFPE..BZB40,50199905-201610

STD

sub11802-58010

main11802-58010i14B,1BZFPE..BB42,BZB40,50201610

STD

13511CAMSHAFT

main13501-17010i1HZ..HZB50199301-201501

main13501-75030i3RZF..RZB40,50199309-199907

sub13501-75903

main13501-75040i3RZFE..RZB40,50199907-200708

sub13501-75902

main13501-75060i2TRFE..TRB40,50201102-201403

W/O(MARK)

sub13501-75061

main13501-75061i2TRFE..TRB40,50201404-201501

W/O(MARK)

sub13501-75071

main13501-75070i2TRFE..TRB40,50200708-201401

W(MARK)

sub13501-75071

main13501-75071i2TRFE..TRB40,50201401-201501

W(MARK)

main13501-78100iN04C..XZB50..WOC..CBU200608-201105

sub13501-E0450

main13501-E0450iN04C..XZB40,5#201105-201108

sub13501-E0610

main13501-E0610iN04C..XZB40,5#..ARL,GEN,TAIW201108-201501

sub13501-E0611

main13511-56060i3B..BB40199301-199907

sub13511-56061

main13511-56070i14B..BB42199301-201609

sub13511-56071

main13511-56071i14B..BB42201610

main13511-58020i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199605-201609

sub13511-58021

main13511-58021i1BZFPE..BZB40,50201610

main13511-58030i15BFTE..BB5#199907-200608

sub13511-58031

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-58001i14B,1BZFPE..BB42,BZB40,50199301-201501

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-56040i14B,3B..BB4#199301-199505

sub13523-58010

main13523-58010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199505-201501

main13523-58020i15BFTE..BB5#199907-200608

main13523-75010i3RZFE..RZB40,50199309-200708

main13523-75030i2TRFE..TRB40,50200708-201501

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main95161-30519i14B,15BFT,3B..BB4#,5#199301-201501

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227i14B,1BZFPE..BB42,BZB40,50199301-201501

13571PLATE, CAMSHAFT THRUST

main13571-17010i1HZ..HZB50..ARL199301-201501

main13571-56030i14B..BB42..LHD..HRF199301-201501

13613GEAR, INJECTION PUMP DRIVE

main13613-17010i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

main13613-78090iN04C..XZB50..WOC..CBU200608-201107

subS1361-32231

main13613-E0170iN04C..XZB40,5#201107-201501

main22407-56030i14B,3B..BB4#199301-199505

main22407-58010i14B..BB42199505-201501

main22407-58030i15BFTE..BB5#199907-200608

13711VALVE, INTAKE

main13711-0C060i2TRFE..TRB40,50..GEN200708-201501

main13711-17010i1HZ#..HZB50199301-201501

main13711-58020i14B,3B..BB4#199301-199505

sub13711-58021

main13711-58021i14B..BB42199505-201501

main13711-58030i15BFT..BB43,5#199605-201501

main13711-75070i3RZFE..RZB40,50199309-200708

main13711-75110i2TRFE..TRB40,50..GCC200708-201501

main13711-78020iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC200608-201106

subS1371-11800

mainS137111800iN04C..XZB40,5#..ARL,GEN,TAIW201106-201501

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02076i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199301-201501

main90913-02090i3RZFE..RZB40,50199309-200708

NO.1

main90913-02094i1HZ#..HZB50199301-199907

main90913-02096i15BFT..BB50..CHI199903-201501

main90913-02101i2TRFE..TRB40,50200708-201501

NO.1

main90913-02103i3RZFE..RZB40,50199309-200708

NO.2

main90913-02108i15BFT..BB43,5#199605-199903

main90913-02109i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-201501

main90913-02112i2TRFE..TRB40,50200708-201501

NO.2

13711BSPRING, COMPRESSION(FOR INNER)

main90035-01057iN04C..XZB50..STD..GEN200608-201501

main90501-30032i2TRFE..TRB40,50201405-201501

main90501-31017i3RZFE..RZB40,50199608-200708

main90501-32055i2TRFE..TRB40,50200708-201405

main90501-33012i14B..BB42..LHD..HRF199301-201501

main90501-35027i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199605-201501

main90501-36002i3RZF..RZB40,50199309-199505

sub90501-31017

main90504-49001i1HZ..HZB50199301-201501

mainS137311690iN04C..XZB40,5#201501

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-45032i14B..BB42..LHD..HRF199301-201501

13715VALVE, EXHAUST

main13715-0C060i2TRFE..TRB40,50..GEN200708-201501

main13715-17010i1HZ#..HZB50199301-199907

main13715-48020i1BZFPE..BZB40,50200108-201501

main13715-54040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-201501

main13715-58040i14B..BB42199301-199505

sub13715-58041

main13715-58041i14B..BB42199505-201501

main13715-58050i3B..BB40199301-199505

sub13715-58051

main13715-58051i3B..BB40199505-199907

main13715-58070i15BFTE..BB5#199605-201501

main13715-75100i2TRFE..TRB40,50..GCC200708-201304

sub13715-75140

main13715-75140i2TRFE..TRB40,50201304-201501

main13715-76030i3RZF..RZB40,50199309-200708

main13715-78030iN04C..XZB50..WOC..CBU200608-201106

subS1371-51870

mainS137151870iN04C..XZB50..IV201106-201501

13716CAP, VALVE STEM

main13716-56010i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

main13716-75020i2TRFE..TRB40,50200708-201501

13734SEAT, VALVE SPRING

main13734-56010i14B,3B..BB40,42199301-201501

main13734-62020i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199605-201501

main13734-78020iN04C..XZB40,5#200608-201106

subS1373-51460

main90201-18015i3RZFE..RZB40,50199309-200708

mainS137351460iN04C..XZB40,5#201106-201501

13741RETAINER, VALVE SPRING

main13741-17010i15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199605-201501

main13741-20021i2TRFE..TRB40,50200708-201405

main13741-36010i2TRFE..TRB40,50201405-201501

main13741-46020i3RZFE..RZB40,50199309-200708

main13741-54020i1HZ#..HZB50199301-201501

main13741-56040i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199301-201501

13741ALOCK, VALVE SPRING RETAINER

main90038-13006iN04C..XZB50..IV200608-201501

main90913-03014i1HZ#..HZB50199301-201501

main90913-03021i3RZF..RZB40,50199309-200708

main90913-03024i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199301-201501

main90913-03027i15BFT..BB43,5#199605-201501

main90913-03028i2TRFE..TRB40,50200708-201501

mainSZ91026013iN04C..XZB40,5#201501

13751LIFTER, VALVE

main13750-58010i14B,15BFT,3B..BB4#,50199301-199705

sub13750-58011

main13750-58011i15BFT..BB50..CHI199705-201501

main13751-54010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main13751-74020i3RZFE..RZB40,50199309-200708

main13751-78010iN04C..XZB50..WOC..CBU200608-201107

sub13751-E0040

main13751-E0040iN04C..XZB40,5#201107-201501

13781ROD, VALVE PUSH

main13781-56020i14B..BB42199301-201501

main13781-58010i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199605-201501

main13781-78020iN04C..XZB50..STD..GEN200608-201106

subS1378-11500

mainS137811500iN04C..XZB40,5#..ARL,GEN,TAIW201106-201501

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i2TRFE..TRB40,50200708-201405

main13801-36020i2TRFE..TRB40,50201405-201501

main13811-56050i3B..BB40199301-199505

sub13811-58020

main13811-56060i14B..BB42199301-199505

sub13811-58030

main13811-58010i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199605-201501

main13811-58020i3B..BB40199505-199907

main13811-58030i14B..BB42..LHD..HRF199505-201501

main13811-78040iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

sub13811-E0190

main13811-E0190iN04C..XZB40,5#201501

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90031-78090iN04C..XZB50..WOC..CBU200608-201501

main90179-08129i14B,3B..BB4#199301-199505

main90179-08248i15BFTE..BB5#;1BZFPE..BZB50..EX199505-201501

mainS137881030iN04C..XZB40,5#201501

13801CSCREW, VALVE ADJUSTING

main13788-78011iN04C..XZB50..WOC..CBU200608-201106

subS1378-71161

main90913-05022i14B,3B..BB4#199301-199505

sub90913-05025

main90913-05025i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199505-201501

mainS137871161iN04C..XZB40,5#201106-201501

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16114i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

13801GWASHER, PLATE(FOR VALVE ROCKER ARM)

main90201-19009i14B..BB42199301-201501

main90206-19002i15BFTE..BB5#;1BZFPE..BZB50..EX199605-201501

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-56060i14B..BB42199301-199505

sub13811-58030

main13811-58030i14B..BB42199505-201501

main13811-78050iN04C..XZB50..IV200608-201501

sub13811-E0200

main13811-E0200iN04C..XZB40,5#201501

main13812-56040i3B..BB40199301-199505

sub13812-58020

main13812-58010i15BFT..BB43,5#199605-201501

main13812-58020i3B..BB40199505-199907

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56030i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199301-201501

main13901-78040iN04C..XZB50..IV200608-201501

sub13901-E0030

main13901-E0030iN04C..XZB40,5#201501

sub13901-78030

13951SUPPORT, VALVE ROCKER, NO.1

main13951-56030i3B..BB40199301-199907

main13951-56040i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

main13951-58010i15BFT..BB50..CHI199605-201501

main13951-78080iN04C..XZB50..STD..GEN200608-201501

TYPE A:REFER ILLUST.

sub13951-E0050

main13951-78090iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC200608-201106

TYPE B:REFER ILLUST.

sub13951-E0040

main13951-E0040iN04C..XZB40,5#..ARL,GEN,TAIW201106-201501

TYPE B:REFER ILLUST.

sub13951-78070

main13951-E0050iN04C..XZB40,5#201501

TYPE A:REFER ILLUST.

sub13951-78110

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08165i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-200408

*8-1.25X53-30

main90105-08165i15BFT..BB43,5#199605-200608

main90105-08165i14B..BB42..LHD..HRF200408-201501

*8-1.25PX53-30

main90105-08177i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199907-201501

*8-1.25PX63-30

main90105-08177i14B,3B..BB40,42199301-199907

*8-1.25X63-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main13958-56010i15BFTE..BB5#;1BZFPE..BZB50..EX199301-201501

13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)

main90201-06350i14B,15BFT,3B..BB4#,5#199301-201501

13952SUPPORT, VALVE ROCKER, NO.2

main13952-56030i3B..BB40199301-199907

main13952-56040i14B..BB42199301-201501

main13952-58010i15BFT..BB43,5#199605-201501

13953SUPPORT, VALVE ROCKER, NO.3

main13953-56030i3B..BB40199301-199907

main13953-56040i14B..BB42199301-201501

main13953-58010i1BZFPE..BZB40,50199605-201501

9010510534

main90105-10534

9010906147

main90109-06147

9010910122

main90109-10122

9011910657

main90119-10657

9043006004

main90430-06004

9043010020

main90430-10020

9043010026

main90430-10026

9161160818

main91611-60818

91651B0820

main91651-B0820

41 parts on this diagram · 10 diagrams in section
