CRANKSHAFT & PISTON

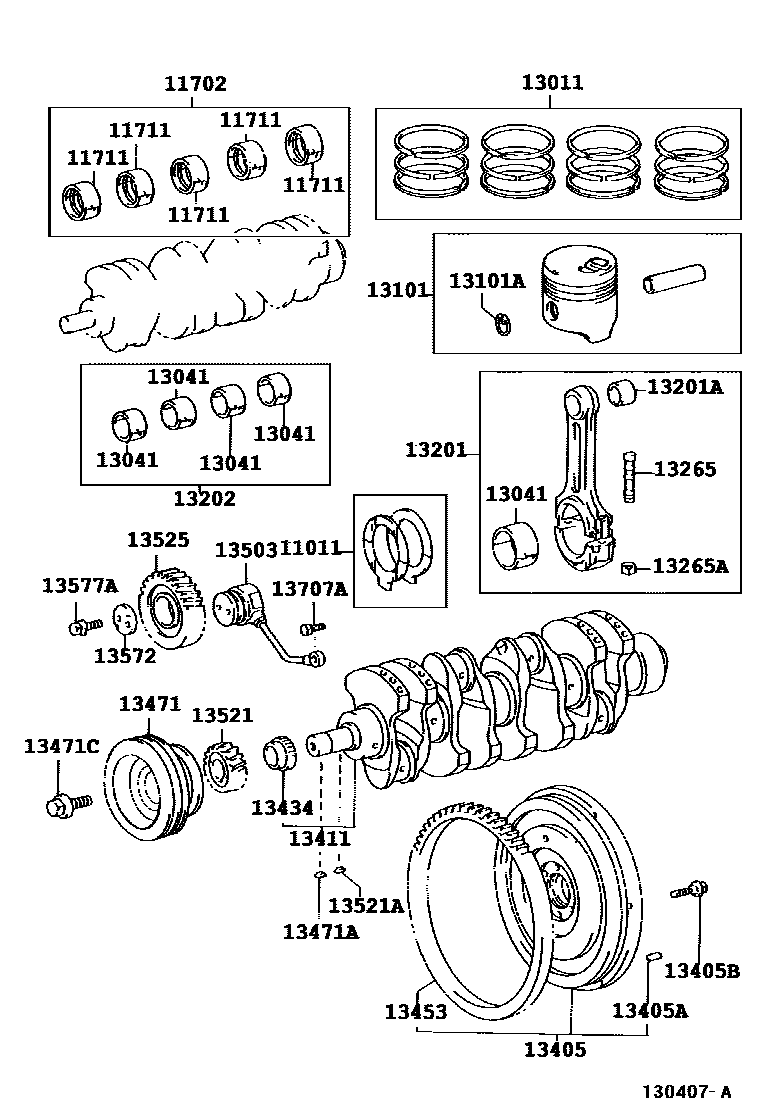

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-17010i199301-201501
STD
main11011-56020i199301-201611
STD
sub11011-58020
main11011-58010i199907-200608
STD
main11011-75010i199309-200708
STD
main11011-75020i200708-201412
STD
main11011-75021i201501
STD
sub11011-75020
main11011-78010i200608-201107
STD
subS1101-11240
main11011-E0030i201107-201501
STD
main11012-56020i199301-201612
O/S 0.125
sub11012-58020
main11012-58010i199907-200608
O/S 0.125
main11013-56020i199301-201612
O/S 0.250
sub11013-58020
main11013-58010i199907-200608
O/S 0.250
11702BEARING SET, CRANKSHAFT
main11701-78100i200608-201107
STD
subS1170-12420
main11701-E0040i201107-201405
STD
sub11701-E0070
main11701-E0070i201406-201501
STD
main11704-17010i199301-199801
U/S 0.25
sub11704-17011
main11704-17011i199801-201501
U/S 0.25
main11704-56030i199301-199712
U/S 0.25
sub11704-56031
main11704-56031i199712-199905
U/S 0.25
sub11704-56032
main11704-56032i199905-201612
U/S 0.25
sub11704-58010
main11704-58020i199907-200608
U/S 0.25
main11704-75020i199309-199904
U/S 0.25
sub11704-75021
main11704-75021i199904-200411
U/S 0.25
sub11704-75022
main11704-75022i200411-200708
U/S 0.25
main11704-75031i200708-201406
U/S 0.25
sub11704-75032
main11704-75032i201406-201501
U/S 0.25
sub11704-75033
main11704-75033i201501
U/S 0.25
main11704-E0040i201501
U/S 0.25
main11705-17010i199301-199801
U/S 0.50
sub11705-17011
main11705-17011i199801-201501
U/S 0.50
main11705-56030i199301-199712
U/S 0.50
sub11705-56031
main11705-56031i199712-199905
U/S 0.50
sub11705-56032
main11705-56032i199905-201612
U/S 0.50
sub11705-58010
main11705-58020i199907-200608
U/S 0.50
main11705-E0040i201501
U/S 0.50
main11706-E0020i201501
U/S 0.75
main11707-56030i199301-199712
U/S 1.00
sub11707-56031
main11707-56031i199712-199905
U/S 1.00
sub11707-56032
main11707-56032i199905-201612
U/S 1.00
sub11707-58010
main11707-58020i199907-200608
U/S 1.00
main11707-E0020i201501
U/S 1.00
main11708-78010i200608-201501
U/S 0.25
subS1170-32070
main11708-78020i200608-201501
U/S 0.50
subS1170-42100
main11708-78030i200608-201501
U/S 0.75
subS1170-52020
main11708-78040i200608-201501
U/S 1.00
subS1170-62040
11711BEARING, CRANKSHAFT
main11071-75020-01i199309-199904
MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1
sub11071-75021
main11071-75020-02i199309-199904
MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2
sub11071-75021
main11071-75020-03i199309-199904
MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3
sub11071-75021
main11071-75021-01i199904-200408
MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1
sub11071-75022
main11071-75021-01i200408-200410
MARK 1,NO.2,REFER R/M
sub11071-75022
main11071-75021-02i199904-200408
MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2
sub11071-75022
main11071-75021-02i200408-200410
MARK 2,NO.2,REFER R/M
sub11071-75022
main11071-75021-03i200408-200410
MARK 3,NO.2,REFER R/M
sub11071-75022
main11071-75021-03i199904-200408
MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3
sub11071-75022
main11071-75022-01i200411-200708
MARK1,NO.2,REFER R/M
main11071-75022-02i200411-200708
MARK2,NO.2,REFER R/M
main11071-75022-03i200411-200708
MARK3,NO.2,REFER R/M
main11701-17010-02i199301-199801
MARK 2,REFER REPAIR MANUAL
sub11701-17011
main11701-17010-03i199301-199801
MARK 3,REFER REPAIR MANUAL
sub11701-17011
main11701-17010-04i199301-199801
MARK 4,REFER REPAIR MANUAL
sub11701-17011
main11701-17010-05i199301-199801
MARK 5,REFER REPAIR MANUAL
sub11701-17011
main11701-17010-06i199301-199801
MARK 6,REFER REPAIR MANUAL
sub11701-17011
main11701-17011-02i199801-201501
MARK 2,REFER REPAIR MANUAL
main11701-17011-03i199801-201501
MARK 3,REFER REPAIR MANUAL
main11701-17011-04i199801-201501
MARK 4,REFER REPAIR MANUAL
main11701-17011-05i199801-201501
MARK 5,REFER REPAIR MANUAL
main11701-17011-06i199801-201501
MARK 6,REFER REPAIR MANUAL
main11701-17011-07i199907-201501
MARK 7,REFER REPAIR MANUAL
main11701-56020-01i199301-199712
MARK 1:REFER TO REPAIR MANUAL,MARK1
sub11701-56021
main11701-56020-02i199301-199712
MARK 2:REFER TO REPAIR MANUAL,MARK2
sub11701-56021
main11701-56021-01i199712-199905
MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub11701-56022
main11701-56021-02i199712-199905
MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub11701-56022
main11701-56022-01i199907-201611
MARK 1,REFER REPAIR MANUAL
sub11701-58010
main11701-56022-01i199905-199907
MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub11701-58010
main11701-56022-02i199907-201611
MARK 2,REFER REPAIR MANUAL
sub11701-58010
main11701-56022-02i199905-199907
MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub11701-58010
main11701-58020-01i199907-200608
MARK 1,REFER REPAIR MANUAL
main11701-58020-02i199907-200608
MARK 2,REFER REPAIR MANUAL
main11701-75020-01i199309-199904
MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1
sub11701-75021
main11701-75020-02i199309-199904
MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2
sub11701-75021
main11701-75020-03i199309-199904
MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3
sub11701-75021
main11701-75021-01i199904-200408
MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1
sub11701-75022
main11701-75021-01i200408-200410
MARK 1,NO.1,REFER R/M
sub11701-75022
main11701-75021-02i199904-200408
MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2
sub11701-75022
main11701-75021-02i200408-200410
MARK 2,NO.1,REFER R/M
sub11701-75022
main11701-75021-03i199904-200408
MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3
sub11701-75022
main11701-75021-03i200408-200410
MARK 3,NO.1,REFER R/M
sub11701-75022
main11701-75022-01i200411-200708
MARK1,NO.1,REFER R/M
main11701-75022-02i200411-200708
MARK2,NO.1,REFER R/M
main11701-75022-03i200411-200708
MARK3,NO.1,REFER R/M
main11701-75031-01i200708-201405
REFER TO REPAIR MANUAL,MARK1
sub11701-75032
main11701-75031-02i200708-201405
REFER TO REPAIR MANUAL,MARK2
sub11701-75032
main11701-75031-03i200708-201405
REFER TO REPAIR MANUAL,MARK3
sub11701-75032
main11701-75032-01i201406-201412
MARK 1
sub11701-75033
main11701-75032-02i201406-201412
MARK 2
sub11701-75033
main11701-75032-03i201406-201412
MARK 3
sub11701-75033
main11701-75032-04i201406-201412
MARK 4
sub11701-75033
main11701-75032-05i201406-201412
MARK 5
sub11701-75033
main11701-75033-01i201501
MARK 1
main11701-75033-02i201501
MARK 2
main11701-75033-03i201501
MARK 3
main11701-75033-04i201501
MARK 4
main11701-75033-05i201501
MARK 5
13011RING SET, PISTON
main13011-17011i199301-199401
STD
sub13011-17020
main13011-17020i199401-199501
STD
sub13011-17030
main13011-17030i199501-201501
STD
main13011-48040i200108-201501
STD
main13011-58050i199301-199905
STD
sub13011-58051
main13011-58051i199905-199907
STD
main13011-58070i199301-199905
STD
sub13011-58072
main13011-58072i199905-201501
STD
main13011-58090i199605-201501
STD
main13011-58110i199907-200608
STD
main13011-75060i199309-199907
STD
main13011-75090i199907-200708
STD
main13011-75110i200708-201501
STD
main13011-75130i200708-201501
STD
main13011-78190i200608-200609
STD
sub13011-78230
main13011-78230i200609-201106
STD
subS1304-E0020
main13013-17011i199301-199401
O/S 0.50
sub13013-17020
main13013-17020i199401-199501
O/S 0.50
sub13013-17030
main13013-17030i199501-201501
O/S 0.50
main13013-48040i200108-201501
O/S 0.50
main13013-58050i199301-199905
O/S 0.50
sub13013-58051
main13013-58051i199905-199907
O/S 0.50
main13013-58070i199301-199905
O/S 0.50
sub13013-58072
main13013-58072i199905-201501
O/S 0.50
main13013-58090i199605-201501
O/S 0.50
main13013-58110i199907-200608
O/S 0.50
main13013-75060i199309-199907
O/S 0.50
main13013-75090i199907-200708
O/S 0.50
main13013-75110i200708-201501
O/S 0.50
main13013-75130i200708-201501
O/S 0.50
main13014-17010i199907-200408
O/S 0.75
sub13014-17030
main13014-17030i200408-201501
O/S 0.75
main13014-48040i200108-201501
O/S 0.75
main13014-58050i199301-199905
O/S 0.75
sub13014-58051
main13014-58051i199905-199907
O/S 0.75
main13014-58070i199301-199905
O/S 0.75
sub13014-58072
main13014-58072i199905-201501
O/S 0.75
main13014-58090i199605-201501
O/S 0.75
main13014-58110i199907-200608
O/S 0.75
main13015-48040i200108-201501
O/S 1.00
main13015-58050i199301-199905
O/S 1.00
sub13015-58051
main13015-58051i199905-199907
O/S 1.00
main13015-58070i199301-199905
O/S 1.00
sub13015-58072
main13015-58072i199905-201501
O/S 1.00
main13015-58090i199605-201501
O/S 1.00
main13015-58110i199907-200608
O/S 1.00
mainS1304E0020i201106-201501
STD
13041BEARING, CONNECTING ROD
main13041-17010-02i199301-199408
MARK 2,REFER REPAIR MANUAL
sub13041-17011
main13041-17010-03i199301-199408
MARK 3,REFER REPAIR MANUAL
sub13041-17011
main13041-17010-04i199301-199408
MARK 4,REFER REPAIR MANUAL
sub13041-17011
main13041-17010-05i199301-199408
MARK 5,REFER REPAIR MANUAL
sub13041-17011
main13041-17010-06i199301-199408
MARK 6,REFER REPAIR MANUAL
sub13041-17011
main13041-17011-02i199408-201501
MARK 2,REFER REPAIR MANUAL
main13041-17011-03i199408-201501
MARK 3,REFER REPAIR MANUAL
main13041-17011-04i199408-201501
MARK 4,REFER REPAIR MANUAL
main13041-17011-05i199408-201501
MARK 5,REFER REPAIR MANUAL
main13041-17011-06i199408-201501
MARK 6,REFER REPAIR MANUAL
main13041-56040-01i199301-199505
MARK 1:REFER TO REPAIR MANUAL,MARK1
sub13041-58020
main13041-56040-02i199301-199505
MARK 2:REFER TO REPAIR MANUAL,MARK2
sub13041-58020
main13041-58020-01i199505-199712
MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub13041-58031
main13041-58020-02i199505-199712
MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub13041-58031
main13041-58031-01i199712-199812
MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub13041-58032
main13041-58031-02i199712-199812
MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub13041-58032
main13041-58032-01i199907-201510
MARK 1,REFER REPAIR MANUAL
sub13041-58050
main13041-58032-01i199812-199907
MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub13041-58050
main13041-58032-02i199907-201510
MARK 2,REFER REPAIR MANUAL
sub13041-58050
main13041-58032-02i199812-199907
MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub13041-58050
main13041-58040-01i199907-200608
MARK 1,REFER REPAIR MANUAL
main13041-58040-02i199907-200608
MARK 2,REFER REPAIR MANUAL
main13041-58050-01i201511
MARK 1,REFER REPAIR MANUAL
main13041-58050-02i201511
MARK 2,REFER REPAIR MANUAL
main13041-75020-04i199309-199701
MARK 4:REFER TO REPAIR MANUAL,MARK 4
sub13041-75021
main13041-75020-05i199309-199701
MARK 5:REFER TO REPAIR MANUAL,MARK 5
sub13041-75021
main13041-75020-06i199309-199701
MARK 6:REFER TO REPAIR MANUAL,MARK 6
sub13041-75021
main13041-75021-04i199701-200408
MARK 4:REFER TO REPAIR MANUAL,MARK 4
sub13041-75022
main13041-75021-04i200408-200411
MARK 4,REFER REPAIR MANUAL
sub13041-75022
main13041-75021-05i199701-200408
MARK 5:REFER TO REPAIR MANUAL,MARK 5
sub13041-75022
main13041-75021-05i200408-200411
MARK 5,REFER REPAIR MANUAL
sub13041-75022
main13041-75021-06i200408-200411
MARK 6,REFER REPAIR MANUAL
sub13041-75022
main13041-75021-06i199701-200408
MARK 6:REFER TO REPAIR MANUAL,MARK 6
sub13041-75022
main13041-75022-04i200411-200708
MARK4,REFER REPAIR MANUAL
main13041-75022-05i200411-200708
MARK5,REFER REPAIR MANUAL
main13041-75022-06i200411-200708
MARK6,REFER REPAIR MANUAL
main13041-75040-04i200708-200803
REFER TO REPAIR MANUAL,MARK4
sub13041-75050
main13041-75040-05i200708-200803
REFER TO REPAIR MANUAL,MARK5
sub13041-75050
main13041-75040-06i200708-200803
REFER TO REPAIR MANUAL,MARK6
sub13041-75050
main13041-75050-04i200803-201412
REFER TO REPAIR MANUAL,MARK4
sub13041-75052
main13041-75050-05i200803-201412
REFER TO REPAIR MANUAL,MARK5
sub13041-75052
main13041-75050-06i200803-201412
REFER TO REPAIR MANUAL,MARK6
sub13041-75052
main13041-75052-04i201501-201601
MARK 4
sub13041-75070
main13041-75052-05i201501-201601
MARK 5
sub13041-75070
main13041-75052-06i201501-201601
MARK 6
sub13041-75070
main13041-75070-04i201601
MARK 4
main13041-75070-05i201601
MARK 5
main13041-75070-06i201601
MARK 6
main13041-78060i200608-201107
subS1320-11960
main13041-E0610i201107-201405
sub13041-E0690
main13041-E0690i201406-201501
13101PISTON SUB-ASSY, W/PIN
main13101-17010-01i199301-199907
STD,MARK 1,REFER REPAIR MANUAL
main13101-17010-02i199301-199907
STD,MARK 2,REFER REPAIR MANUAL
main13101-17010-03i199301-199907
STD,MARK 3,REFER REPAIR MANUAL
main13101-17030-01i199301-199605
STD,MARK 1,REFER REPAIR MANUAL
main13101-17030-02i199301-199605
STD,MARK 2,REFER REPAIR MANUAL
main13101-17030-03i199301-199605
STD,MARK 3,REFER REPAIR MANUAL
main13101-17071-01i199505-199907
STD,MARK 1,REFER REPAIR MANUAL
main13101-17071-02i199505-199907
STD,MARK 2,REFER REPAIR MANUAL
main13101-17071-03i199505-199907
STD,MARK 3,REFER REPAIR MANUAL
main13101-17100-01i199907-201501
STD,MARK 1,REFER REPAIR MANUAL
main13101-17100-02i199907-201501
STD,MARK 2,REFER REPAIR MANUAL
main13101-17100-03i199907-201501
STD,MARK 3,REFER REPAIR MANUAL
main13101-48021-01i200408-201501
STD,MARK 1,REFER REPAIR MANUAL
main13101-48021-01i200108-200408
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
main13101-48021-02i200408-201501
STD,MARK 2,REFER REPAIR MANUAL
main13101-48021-02i200108-200408
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
main13101-48021-03i200408-201501
STD,MARK 3,REFER REPAIR MANUAL
main13101-48021-03i200108-200408
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
main13101-58040-01i199301-199612
STD,MARK 1:REFER TO REPAIR MANUAL,MARK1
sub13101-58041
main13101-58040-02i199301-199612
STD,MARK 2:REFER TO REPAIR MANUAL,MARK2
sub13101-58041
main13101-58040-03i199301-199612
STD,MARK 3:REFER TO REPAIR MANUAL,MARK3
sub13101-58041
main13101-58041-01i199907-201501
STD,MARK 1,REFER REPAIR MANUAL
main13101-58041-01i199612-199907
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
main13101-58041-02i199907-201501
STD,MARK 2,REFER REPAIR MANUAL
main13101-58041-02i199612-199907
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
main13101-58041-03i199907-201501
STD,MARK 3,REFER REPAIR MANUAL
main13101-58041-03i199612-199907
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
main13101-58050-01i199301-199907
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
main13101-58050-02i199301-199907
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
main13101-58050-03i199301-199907
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
main13101-58080-01i199605-199703
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
sub13101-58081
main13101-58080-02i199605-199703
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
sub13101-58081
main13101-58080-03i199605-199703
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
sub13101-58081
main13101-58081-01i199907-201501
STD,MARK 1,REFER REPAIR MANUAL
main13101-58081-01i199703-199907
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
main13101-58081-02i199907-201501
STD,MARK 2,REFER REPAIR MANUAL
main13101-58081-02i199703-199907
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
main13101-58081-03i199907-201501
STD,MARK 3,REFER REPAIR MANUAL
main13101-58081-03i199703-199907
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
main13101-58101-01i199705-199907
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
main13101-58101-01i199907-200108
STD,MARK 1,REFER REPAIR MANUAL
main13101-58101-02i199907-200108
STD,MARK 2,REFER REPAIR MANUAL
main13101-58101-02i199705-199907
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
main13101-58101-03i199705-199907
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
main13101-58101-03i199907-200108
STD,MARK 3,REFER REPAIR MANUAL
main13101-58120i200408-200608
STD,REFER REPAIR MANUAL
main13101-58120-01i199907-200408
STD,MARK 1,REFER REPAIR MANUAL
main13101-58120-02i199907-200408
STD,MARK 2,REFER REPAIR MANUAL
main13101-58120-03i199907-200408
STD,MARK 3,REFER REPAIR MANUAL
main13101-75041i199907-200708
STD
main13101-75050i199309-199907
STD
main13101-75130i200708-201501
STD
main13103-17010i199301-199907
O/S 0.50
main13103-17030i199301-199605
O/S 0.50
main13103-17071i199505-199907
O/S 0.50
main13103-17100i199907-201501
O/S 0.50
main13103-48021i200108-201501
O/S 0.50
main13103-58040i199301-199612
O/S 0.50
sub13103-58041
main13103-58041i199612-201501
O/S 0.50
main13103-58050i199301-199907
O/S 0.50
main13103-58080i199605-199703
O/S 0.50
sub13103-58081
main13103-58081i199703-201501
O/S 0.50
main13103-58101i199705-200108
O/S 0.50
main13103-58120i199907-200608
O/S 0.50
main13103-75041i199907-200708
O/S 0.50
main13103-75050i199309-199907
O/S 0.50
main13103-75130i200708-201501
O/S 0.50
main13104-17010i199907-200408
O/S 0.75
sub13104-17100
main13104-17100i200408-201501
O/S 0.75
main13104-48021i200108-201501
O/S 0.75
main13104-58040i199301-199612
O/S 0.75
sub13104-58041
main13104-58041i199612-201501
O/S 0.75
main13104-58050i199301-199907
O/S 0.75
main13104-58080i199605-199703
O/S 0.75
sub13104-58081
main13104-58081i199703-201501
O/S 0.75
main13104-58101i199705-200108
O/S 0.75
main13104-58120i199907-200608
O/S 0.75
main13105-48021i200108-201501
O/S 1.00
main13105-58040i199301-199612
O/S 1.00
sub13105-58041
main13105-58041i199612-201501
O/S 1.00
main13105-58050i199301-199907
O/S 1.00
main13105-58080i199605-199703
O/S 1.00
sub13105-58081
main13105-58081i199703-201501
O/S 1.00
main13105-58101i199705-200108
O/S 1.00
main13105-58120i199907-200608
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90035-21020i200608-201501
main90520-22025i200708-201501
main90521-28003i199309-200708
main90521-32004i199301-201501
main90521-34002i199301-201501
main90521-36001i199301-199605
main90521-37007i199605-201501
main90521-40002i199907-200608
mainSZ52037001i201501
13201ROD SUB-ASSY, CONNECTING
main13201-17010i199301-201501
main13201-17020i199301-199501
sub13201-17022
main13201-17022i199501-199605
main13201-49055i200404-201511
sub13201-49056
main13201-49056i201511
main13201-59145i199301-199505
sub13201-59265
main13201-59146i199505-199907
sub13201-59266
main13201-59185i199605-200404
sub13201-49056
main13201-59195i199907-200404
sub13201-59265
main13201-59205i199907-200404
sub13201-59275
main13201-59265i200404-201511
sub13201-59266
main13201-59266i201511
main13201-59275i200404-200608
main13201-78030i200608-201107
sub13260-E0050
main13201-79205i199309-200411
sub13201-79466
main13201-79466i200404-200708
main13201-79585i200708-200712
sub13201-79615
main13201-79615i200712-201501
sub13201-79616
main13201-79616i201501-201601
sub13201-79617
main13201-79617i201601
main13260-E0050i201107-201501
sub13260-E0052
13201ABUSH(FOR CONNECTING ROD SMALL END)
main13271-89102i200608-201106
subS1327-21400
main90999-73124i199301-201501
main90999-73126i199301-201501
main90999-73127i199301-199501
sub90999-73137
main90999-73129i199309-200708
main90999-73134i199605-201501
main90999-73137i199501-199605
main90999-73141i199907-200408
main90999-73144i200708-201501
mainS132721400i201106-201501
13202BEARING SET, CONNECTING ROD
main13204-17010i199301-199408
U/S 0.25
sub13204-17011
main13204-17011i199408-201501
U/S 0.25
main13204-56040i199301-199505
U/S 0.25
main13204-58020i199505-199712
U/S 0.25
sub13204-58031
main13204-58031i199712-199812
U/S 0.25
sub13204-58032
main13204-58032i199812-201511
U/S 0.25
sub13204-58050
main13204-58040i199907-200608
U/S 0.25
main13204-58050i201511
U/S 0.25
main13204-75020i199309-199701
U/S 0.25
sub13204-75021
main13204-75021i199701-200411
U/S 0.25
sub13204-75022
main13204-75022i200411-200708
U/S 0.25
main13204-75040i200708-200711
U/S 0.25
sub13204-75050
main13204-75050i200712-201501
U/S 0.25
sub13204-75052
main13204-75052i201501-201512
U/S 0.25
sub13204-75070
main13204-75070i201601
U/S 0.25
main13205-17010i199301-199408
U/S 0.50
sub13205-17011
main13205-17011i199408-199907
U/S 0.50
main13205-56040i199301-199505
U/S 0.50
main13205-58020i199505-199712
U/S 0.50
sub13205-58031
main13205-58031i199712-199812
U/S 0.50
sub13205-58032
main13205-58032i199812-201511
U/S 0.50
sub13205-58050
main13205-58040i199907-200608
U/S 0.50
main13205-58050i201511
U/S 0.50
main13207-56040i199301-199505
U/S 1.00
main13207-58020i199505-199712
U/S 1.00
sub13207-58031
main13207-58031i199712-199812
U/S 1.00
sub13207-58032
main13207-58032i199812-201511
U/S 1.00
sub13207-58050
main13207-58040i199907-200608
U/S 1.00
main13207-58050i201511
U/S 1.00
13265BOLT, CONNECTING ROD
main13265-17010i199301-201501
main13265-28010i200708-201501
sub13265-28020
main13265-58020i199301-201501
main13265-58030i199907-200608
main13265-75030i199309-200708
main13265-89103i200608-201501
main13265-E0010i201501
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main13266-58010i199301-201501
main90179-09009i199309-200708
13405FLYWHEEL SUB-ASSY
main13405-17010i199301-201501
main13405-56040i199301-200702
sub13405-56041
main13405-56041i200702-201501
main13405-58050i199907-200608
main13405-58070i199705-201501
main13405-75040i199309-200708
main13405-75060i200708-201501
main13450-78060i200608-200610
sub13450-78061
main13450-78061i200610-200901
sub13450-78062
main13450-78062i200901-201008
sub13450-E0D51
main13450-78080i200708-200901
sub13450-78081
main13450-78081i200901-201106
sub13450-E0F00
main13450-78120i201008-201501
sub13450-E0L50
main13450-E0L40i201106-201501
main13450-E0L50i201501
sub13450-78260
main13451-17020i199301-200108
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i199301-200108
L=15,OD=5
main90250-08054i199309-201501
L=23,OD=8
main90250-10008i200608-201501
L=24,OD=10
main90250-10192i199301-201501
L=22,OD=10
mainSM21201024i201501
L=24,OD=10
13405BBOLT, FLYWHEEL SETTING
main90031-05112i200608-201501
main90031-09050i200708-201501
main90105-12169i199301-201501
main90910-02116i199309-201501
main90913-01015i199301-201501
main90913-01022i199907-200608
mainS134551550i201501
mainS134551820i201501
13411CRANKSHAFT
main13400-78080i200803-201008
sub13411-E0180
subS1352-11660
subSM171-01028
subSZ910-29013
main13400-78150i201008-201106
sub13411-E0180
subS1352-11660
subSM171-01028
subSZ910-29013
main13401-56040i199301-199505
sub13401-58061
sub13041-58032
main13401-58030i199301-199505
sub13401-58050
main13401-58050i199505-199903
sub13401-58051
sub13041-58032
main13401-58051i199903-201501
main13401-58060i199505-199907
sub13401-58061
sub13041-58032
main13401-58080i199907-200608
main13401-75040i200708-201408
sub13401-75041
main13401-75041i201408-201501
sub13401-75021
main13411-17010i199301-199801
sub13411-17011
main13411-17011i199801-200105
sub13411-17012
sub90311-95008
main13411-17012i200105-201501
main13411-75020i199309-200708
sub13411-75901
main13411-78011i200608-200803
sub13411-E0080
main13411-78081i201008-201501
main13411-E0071i201501
13434SPLINE, OIL PUMP DRIVE
main13519-56010i199301-199903
main13519-56011i199903-201501
13453GEAR, FLYWHEEL RING
main13453-17010i199301-201501
main13453-20010i199309-201501
main13453-56020i199301-200702
sub13453-56021
main13453-56021i200702-201501
main13453-78020i200901-201106
sub13453-E0080
main13453-89102i200608-200901
sub13453-78020
main13453-E0080i201106-201501
13471PULLEY, CRANKSHAFT
main13408-17010i199301-199907
main13408-17040i199907-201501
main13408-75020i199309-199502
sub13408-75030
main13408-75030i199502-200708
main13408-75050i200708-201501
main13470-48020i200108-201501
main13470-56181i199301-199505
sub13470-58060
main13470-58031i199301-199905
BATTERY(48D26R X2)
sub13470-58032
main13470-58031i199301-199905
BATTERY(48D26R X2) OR (95D31R X2)
sub13470-58032
main13470-58032i199905-199907
BATTERY(48D26R X2) OR (95D31R X2)
main13470-58032i199905-200408
BATTERY(48D26R X2)
main13470-58032i201501
BATTERY(55D23R X2)
main13470-58032i199907-201108
main13470-58032i200408-201501
BATTERY=(55D23R X2) OR (95D31R X2)
main13470-58060i199505-201501
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199309-201501
main95161-30416i199301-201501
main95161-30516i199301-201501
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16037i199301-199505
sub90901-19032
main90105-16041i199309-201501
main90105-24001i199301-201501
main90901-19032i199505-201501
main90901-19061i199907-200608
13503SHAFT SUB-ASSY, IDLE GEAR
main13504-56030i199301-199505
main13504-58010i199505-201501
main13504-58020i199907-200608
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-17010i199301-201501
main13521-56030i199301-201501
main13521-58010i199907-200608
main13521-75010i199309-200708
main13521-75020i200708-201405
sub13521-75021
main13521-75021i201405-201501
main13521-78090i200608-201107
subS1352-11660
mainS135211660i201107-201501
sub13521-78110
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90032-81009i201008-201501
main90280-05005i199309-200708
main90281-06001i200608-201008
main95161-30516i199301-201501
main95161-30519i199301-201501
mainSM17101028i201501
13525GEAR, IDLE, NO.1
main13508-56010i199301-201501
main13520-48010i200108-201501
main13520-58010i199907-200608
main13525-17010i199301-201501
13572PLATE, IDLE GEAR THRUST
main13572-17010i199301-199501
sub13572-17020
main13572-17020i199501-199907
sub13572-17021
main13572-17021i199907-201501
main13572-56020i199301-201501
main13572-58010i199907-200608
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
main90105-10194i199301-201501
13707AUNION(FOR OIL PIPE, NO.1)
main90401-10026i199301-201501

28 parts on this diagram · 10 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
