VENTILATION HOSE

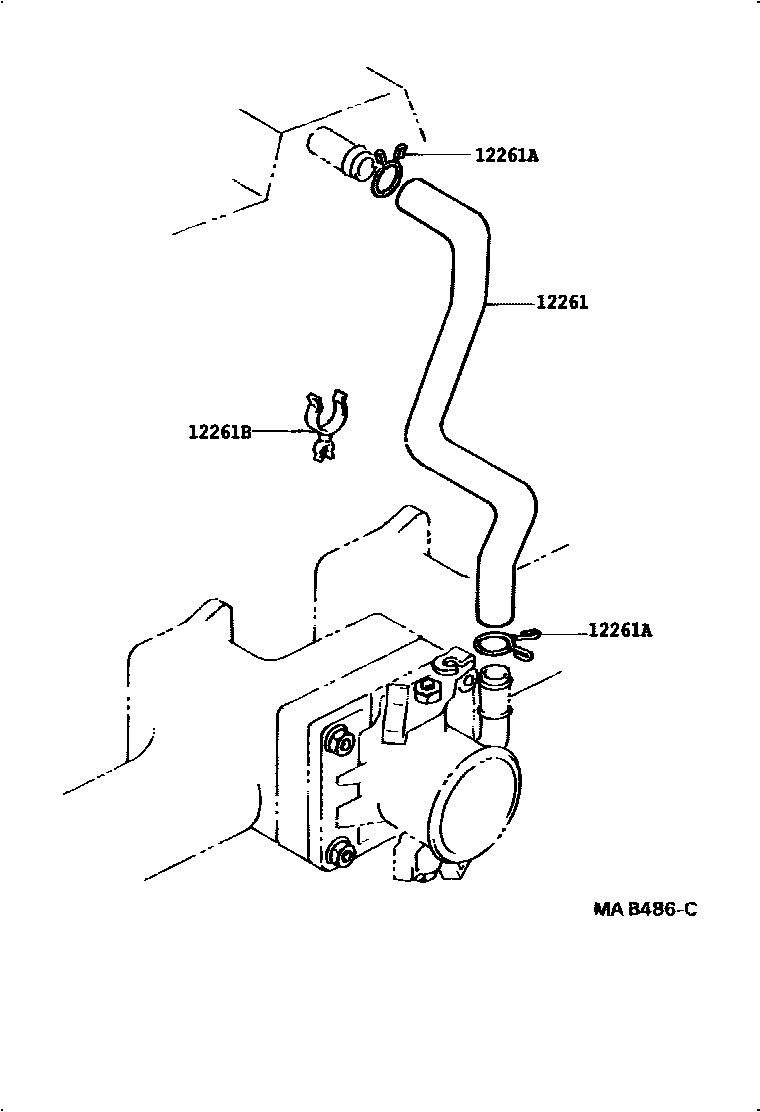

Parts diagram
12261HOSE, VENTILATION
main12260-E0020i201501
main12261-17010i199301-201501
main12261-48010i200108-200203
main12261-48020i200203-201501
main12261-56020i199301-201501
main12261-58050i199605-201501
main12261-58100i199907-200608
main12261-75040i199309-199907
main12261-75070i199907-200708
main12261-75100i200708-201501
main12261-78180i200608-200908
NO.1
subSZ920-36225
main12261-78260i200608-200705
NO.2
sub12261-78261
main12261-78261i200706-200908
NO.2
main12261-78321i200908-201501
sub12261-E0251
main12261-E0251i201501
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90034-67018i200908-201501
subSZ466-28001
main90034-67018i200608-200908
NO.2
subSZ466-28001
main90034-67029i200608-200908
NO.1
main90467-14001i199309-201501
main90467-14001i199907-200708
NO.1
main90467-20010i199907-200708
NO.2
main90467-22010i199301-201501
main90467-23002i199301-200403
mainSZ46628001i201501
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
main90464-00521i199301-201501
main90467-28007i200908-201501

3 parts on this diagram · 12 diagrams in section
