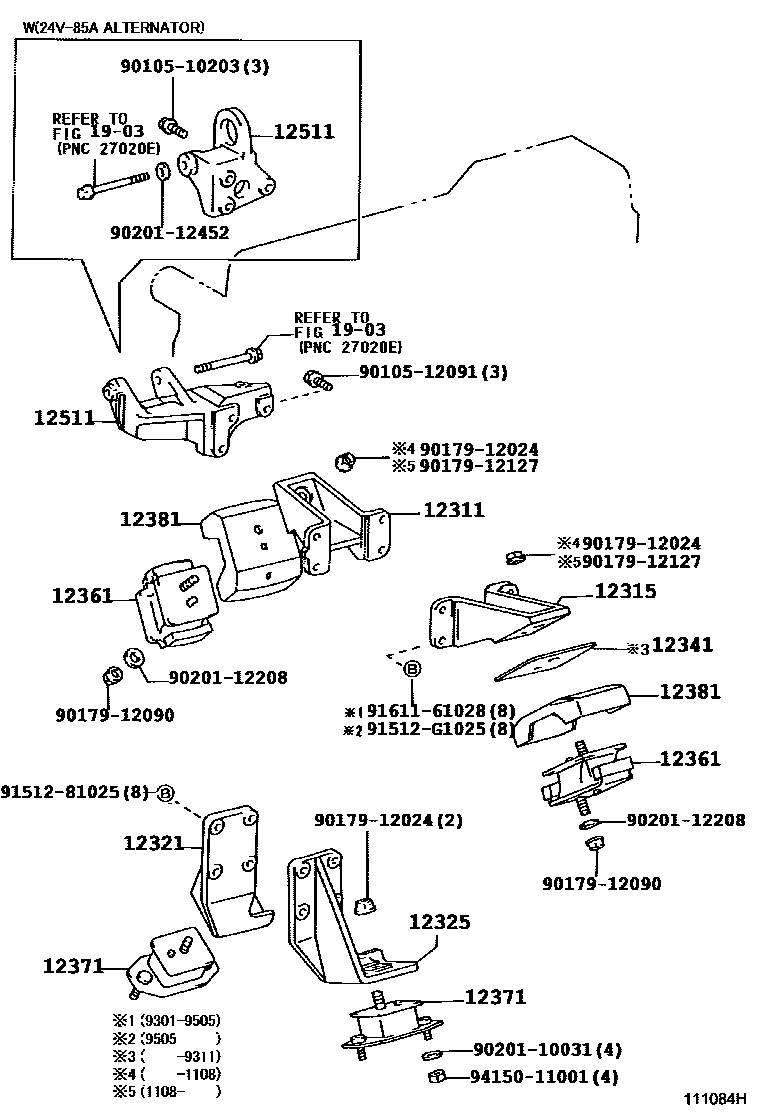

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-17040i1HZ#..HZB50199301-199812

main12311-17041i1HZ..HZB50199812-199907

main12311-58080i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD200408-201108

main12311-58081i14B,15BFT,1BZFPE..BB42,50,BZB40,50201108-201501

main12311-75030i3RZFE..RZB40,50200408-200708

main12311-78102iN04C..XZB40,59;N04C..XZB50..20S,21S200608-200908

subS1231-12043

main12311-78120iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main12311-E0180iN04C..XZB40,5#201501

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-17040i1HZ#..HZB50199301-199812

main12315-17041i1HZ..HZB50201501

main12315-58040i15BFT..BB50..CHI199907-200211

main12315-58041i14B,1BZFPE..BB42,BZB40,50201501

main12315-75030i3RZFE..RZB40,50199907-200408

main12315-78082iN04C..XZB50..STD..GEN200608-200803

subS1231-52063

main12315-78100iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main12315-E0100iN04C..XZB40,5#201501

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-17020i14B,15B#,1BZFPE..BB42,50,59,BZB40,50..5F200408-201501

main12321-17030i1HZ..HZB50..4FC199301-199907

main12321-17040i15BFTE..BB50,58..6F200408-200608

main12321-75010i2TRFE..TRB40,50200708-201501

main12321-78380iN04C..XZB40,5#..5F200608-201501

main12321-78400iN04C..XZB50..4FC201501-201612

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-17020i14B,15B#,1BZFPE..BB42,50,59,BZB40,50..5F200408-201501

main12325-17030i1HZ..HZB50..4FC199907-200108

main12325-17040i15BFT..BB50..IV..6F199907-200105

main12325-75010i2TRFE..TRB40,50201501-201612

main12325-78360iN04C..XZB40,5#..5F200608-201501

main12325-78380iN04C..XZB50..4FC201501-201612

12341SPACER, ENGINE MOUNTING

main12341-58010i14B,3B..BB4#199301-199311

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17030×2i1HZ#..HZB50199301-199306

main12361-17031×2i1HZ#..HZB50199306-199907

main12361-17032×2i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-200408

main12361-17033×2i1HZ..HZB50200910-201106

main12361-17034×2i1HZ..HZB50201107-201501

main12361-58080×2i14B,3B..BB4#199301-199311

main12361-58081×2i14B,15BFT,3B..BB4#,5#199311-199907

main12361-58082×2i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199907-200105

main12361-58083×2i14B,15BFT,1BZFPE..BB42,50,BZB40,50200910-201106

main12361-58084×2i14B,1BZFPE..BB42,BZB40,50201501

main12361-75020×2i3RZF..RZB40,50199309-199907

sub90179-12127

main12361-75021×2i2TRFE..TRB40,50201501

main12361-78140×2iN04C..XZB50..STD..GEN200610-200803

main12361-78141×2iN04C..XZB40,5#201106-201107

main12361-78142×2iN04C..XZB50..IV201107-201311

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17040×2i1HZ#..HZB50199301-199907

main12371-17070×2i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-200108

main12371-78030×2iN04C..XZB40,5#201501-201612

12381STABILIZER, ENGINE MOUNTING

main12381-17020×2i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD200408-200909

main12381-17021×2i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50200910-201501

main12381-65030×2i2TRFE..TRB40,50200708-201501

main12381-78050iN04C..XZB5#..GEN200608-200610

main12381-78070iN04C..XZB40,5#200610-200912

main12381-78071iN04C..XZB40,5#201001-201501

12511BRACKET, ALTERNATOR, NO.1

main12501-56010i14B..BB42201501

main12501-58050i15BFT..BB50..STD..GEN..CBU..5F;15BFTE,1BZFPE..BB50,59,BZB40,50..RHD..(ARL,GEN)199907-200408

main12511-17010i1HZ..HZB50199301-199410

main12511-17011i1HZ..HZB50199410-199510

main12511-17012i1HZ..HZB50199510-199907

main12511-17013i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-200408

main12511-17020i1HZT..HZB50199301-199605

main12511-58050i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F199907-200108

W(24V-85A ALTERNATOR)

main12511-75030i3RZF..RZB40,50199309-199705

main12511-75040i3RZF..RZB40,50199705-199907

main12511-75041i3RZFE..RZB40,50200408-200708

1903

9010510203

main90105-10203

9010512091

main90105-12091

9017912024

main90179-12024

9017912090

main90179-12090

9017912127

main90179-12127

9020110031

main90201-10031

9020112208

main90201-12208

9020112452

main90201-12452

9151281025

main91512-81025

91512G1025

main91512-G1025

9161161028

main91611-61028

9415011001

main94150-11001

22 parts on this diagram · 5 diagrams in section
