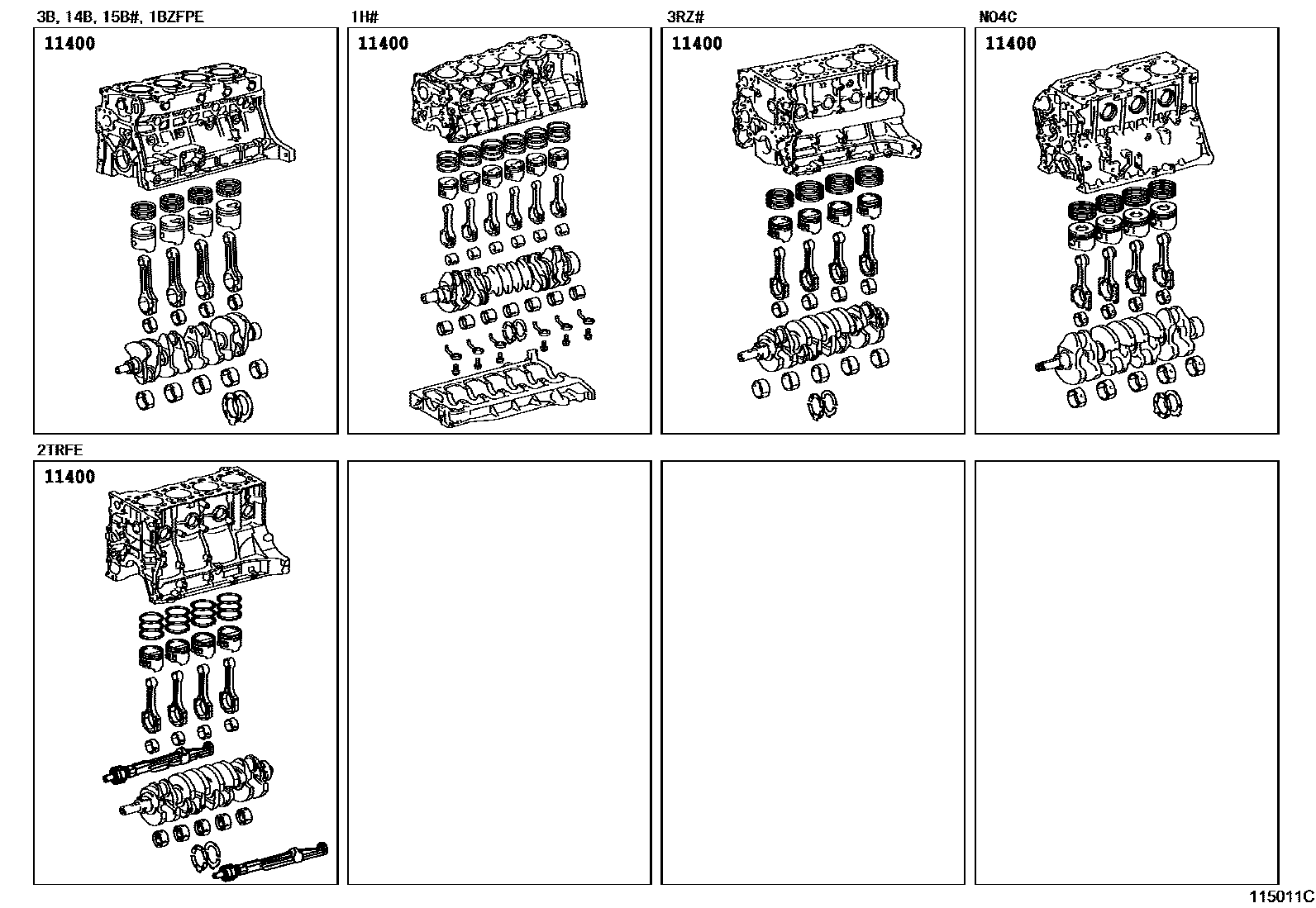

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-17010i1HZ..HZB50..GCC,GEN199301-199411

sub11400-17011

sub91622-G1014

main11400-17011i1HZ..HZB50..(20S,30S)..(GCC,GEN)199411-199705

sub11400-17012

sub90345-52003

main11400-17012i1HZ..HZB50..(GCC,GEN)..5F199705-199801

sub11400-17013

main11400-17013i1HZ..HZB50..(GCC,GEN)..5F199801-199907

main11400-17020i1HZ..HZB50..ARL199301-199411

CIS SPEC OR FR HEATER(MANUAL 120W W/O FILTER)

sub11400-17021

sub91622-G1014

main11400-17020i1HZ..HZB50..ARL199301-199411

FR HEATER(MANUAL 120W W/O FILTER)

sub11400-17021

sub91622-G1014

main11400-17021i1HZ..HZB50..GCC;1HZ..HZB50..LHD..EX;1HZ..HZB50..RHD..GEN..5F;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC199411-199705

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

sub11400-17022

sub90345-52003

main11400-17021i1HZ..HZB50..ARL199411-199505

sub11400-17022

sub90345-52003

main11400-17021i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F199411-199705

FR HEATER(MANUAL 120W W/O FILTER)

sub11400-17022

sub90345-52003

main11400-17022i1HZ..HZB50..(GCC,GEN)..5F199705-199801

W(HEATER)

sub11400-17023

main11400-17023i1HZ..HZB50..(GCC,GEN)..5F199801-199907

W(HEATER)

main11400-17040i1HZ..HZB50..SCO199301-199411

sub11400-17041

sub91622-G1014

main11400-17041i1HZ..HZB50..SCO;1HZ..HZB50..22S..4FC199411-199705

sub11400-17042

sub90345-52003

main11400-17042i1HZ..HZB50..4FC199705-199801

sub11400-17043

main11400-17043i1HZ..HZB50..4FC199801-199907

main11400-17060i1HZT..HZB50199301-199411

sub11400-17061

sub91622-G1014

main11400-17061i1HZT..HZB50199411-199605

sub11400-17062

sub90345-52003

main11400-17091i1HZ..HZB50..ARL199505-199705

sub11400-17092

sub90345-52003

main11400-17092i1HZ..HZB50..ARL199705-199801

sub11400-17093

main11400-17093i1HZ..HZB50..ARL199801-199907

main11400-17120i1HZ..HZB50..EX;1HZ..HZB50..GCC;1HZ..HZB50..RHD..GEN;1HZ..HZB50..HRF..WOC..GEN200108-200404

*EX-USSR SPEC OR W(FRONT HEATER)

main11400-17120i1HZ..HZB50200408-201501

W(HEATER)

main11400-17120i1HZ..HZB50..ARL200108-200211

main11400-17120i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN200108-200404

FR HEATER(MANUAL 120W W/O FILTER)

main11400-17150i1HZ..HZB50..4FC199907-200108

main11400-17160i1HZ..HZB50..GCC,GEN200108-200404

sub11400-17190

main11400-17190i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN200404-200408

COLD SPEC

main11400-17190i1HZ..HZB50200408-201501

W/O(HEATER)

main11400-17200i1HZ..HZB50200404-200408

*EX-USSR SPEC & W(FRONT HEATER) OR W(FRONT HEATER)

sub11400-17120

main11400-48040i1BZFPE..BZB40,50200108-201501

main11400-58110i3B..BB40199301-199505

main11400-58120i14B..BB42199301-199505

main11400-58170i14B..BB42..LHD..HRF..26S..WC199907-200404

CHINA SPEC

sub11400-58171

sub13511-56071

main11400-58170i14B..BB42..LHD..HRF..26S199705-199907

YOJO SPEC

sub11400-58171

sub13511-56071

main11400-58180i3B..BB40199505-199907

main11400-58190i14B..BB42199505-201501

main11400-58200i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-201501

sub11400-58201

sub13511-58021

main11400-58220i15BFT..BB50..STD..WC..IV..5F199705-200108

main11400-58230i15BFTE..BB5#199907-200608

sub11400-58231

sub13511-58031

main11400-58250i14B..BB42200404-200408

sub11400-58190

main11400-58280i15BFTE..BB5#200404-200408

sub11400-58230

main11400-75050i3RZF..RZB40,50199309-199907

main11400-75120i3RZFE..RZB40,50..CHI199907-200708

main11400-75250i3RZFE..RZB40,50200404-200408

sub11400-75120

main11400-75510i2TRFE..TRB40,50..GCC200708-200709

sub11400-75511

sub11444-75020

main11400-75511i2TRFE..TRB40,50..GCC200709-200712

sub11400-75550

main11400-75520i2TRFE..TRB40,50..GEN200708-200709

sub11400-75521

sub11444-75020

main11400-75521i2TRFE..TRB40,50..GEN200709-200712

sub11400-75560

main11400-75550i2TRFE..TRB40,50..GCC200712-201405

sub11400-75551

main11400-75551i2TRFE..TRB40,50201405-201501

sub11400-75381

main11400-75560i2TRFE..TRB40,50..GEN200712-201405

sub11400-75561

main11400-75561i2TRFE..TRB40,50..GEN201405-201501

sub11400-75381

main11400-78310iN04C..XZB40,5#200608-200908

sub11400-78311

main11400-78420iN04C..XZB50..4FC200908-201106

sub11400-78421

main11400-78540iN04C..XZB40,5#..5F201008-201501

sub11400-78541

main11400-78760iN04C..XZB50..4FC201106-201501

sub11400-78761

main11400-78A10iN04C..XZB40,50..LHD..GEN201501-201508

sub11400-78A11

main11400-78A11iN04C..XZB40,50..LHD..GEN201508

sub11400-78A12

main11400-78A20iN04C..XZB40,59..HRF;N04C..XZB50..20S,21S201501-201508

sub11400-78A21

main11400-78A21iN04C..XZB40,59..HRF;N04C..XZB50..20S,21S201508

sub11400-78A22

1 parts on this diagram · 1 diagram in section
