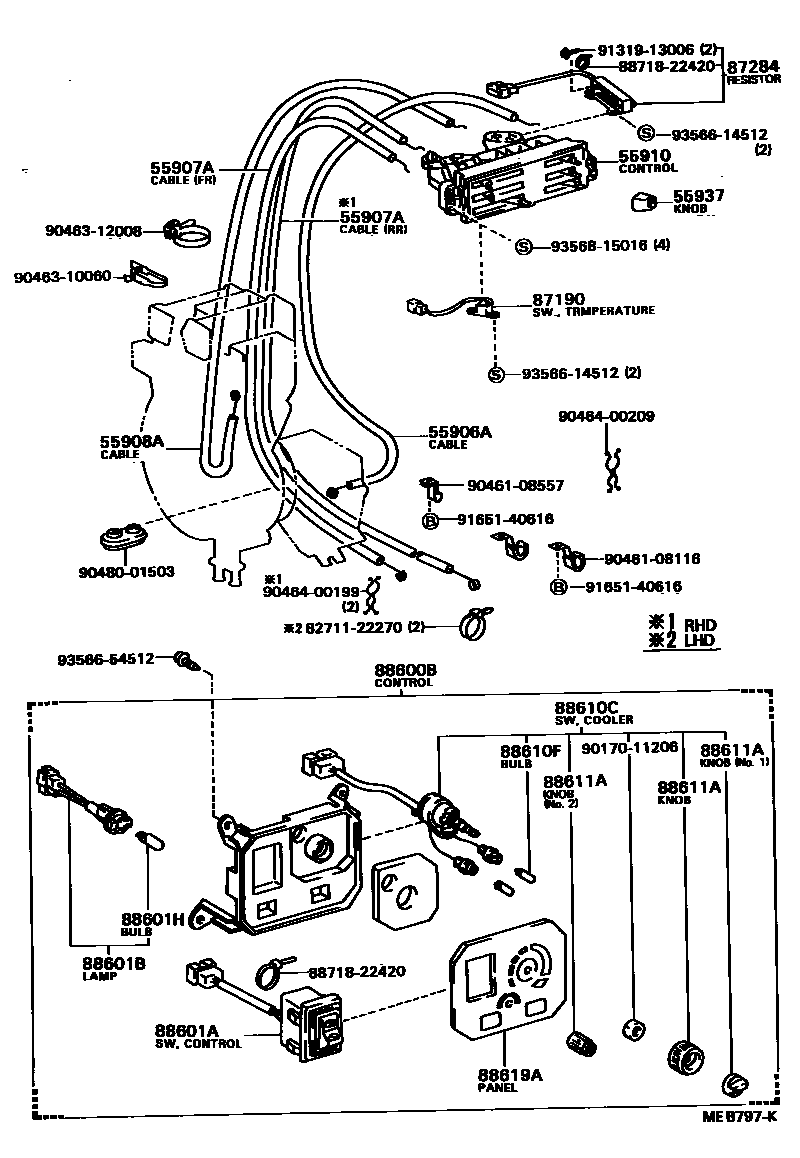

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-90B00iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

main55906-90B02iBB21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-90B00iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

FR

main55907-90B01iBB20,RB20198205-198302

RR

main55907-90B02iBB20,30,RB20..LHD198205-198610

FR

sub55907-90B05

main55907-90B03iBB20,RB20198302-198610

RR

sub55907-90B06

main55907-90B05iBB21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198610-199301

FR

main55907-90B06iBB30,FB30,HB3#,RB20;HZB30..RHD..(23S,30S);BB21..16S,20S,22S,25S,26S198610-199301

RR

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90B00iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

FR HEATER

main55908-90B02iBB21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

FR HEATER

main55908-90B30iBB20,21,FB30,HB30,HZB30,RB20..SRF..WC198205-199301

RH,RR VENTILATOR

main55908-90B31iBB20,21,FB30,HB30,HZB30,RB20..SRF..WC198205-199301

LH,RR VENTILATOR

main55908-90B40iBB2#,FB30,HB30,HZB30,RB20..HRF..WC198205-199301

RH,RR VENTILATOR

main55908-90B40iBB20..RHD..STD..HRF..GEN198405-198510

RH,RR VENTILATOR,HONGKONG SPEC

main55908-90B41iBB2#,FB30,HB30,HZB30,RB20..HRF..WC198205-199301

LH,RR VENTILATOR

main55908-90B41iBB20..RHD..STD..HRF..GEN198405-198510

LH,RR VENTILATOR,HONGKONG SPEC

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-90B00iHDB30,HZB30..RHD198205-199301

main55910-90B01iHB30,HZB30..RHD..DLX..WC198708-199301

HONG KONG SPEC

main55910-90B01iBB21,22,23..STD..WC198510-199301

main55910-90B02iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

55937KNOB, HEATER CONTROL LEVER

main55905-12060iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub55905-12070

87190SWITCH ASSY, TEMPERATURE CONTROL

main87190-90B04iBB30..RHD198408-199301

87284RESISTOR SUB-ASSY, VARIABLE

main87401-90B00iBB20,21,HB30..EX,EXS198510-199301

W/AUTO COOLER

main87401-90B01iRB20..17S198510-199301

W/AUTO COOLER

88600BPANEL ASSY, CONTROL

main88600-90B00iRB20..WC198205-198510

main88600-90B01iBB20..WC198205-198510

main88600-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88600-90B02iRB20..RHD..WC198510-199301

main88600-90B03iBB2#,HB30,HZB30..RHD..WC198510-199301

main88600-90B05iBB20,21,HB30,HZB30..EX,EXS198510-199301

AUTO COOLER

main88600-90B06iFB30,RB20..LHD..WC198510-199301

main88600-90B07iBB20,21,HB30,HZB30..LHD..WC198510-199301

main88600-90B08iRB20..17S198510-199301

AUTO COOLER

88601ASWITCH SUB-ASSY, COOLER CONTROL

main88610-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88610-90B00iBB2#,FB30,HB30,HZB30,RB20..WC198205-199301

88601BINDICATOR, COOLER CONTROL SWITCH

main88607-90B00iFB30,RB20..WC198205-199301

main88607-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88607-90B01iBB2#,HB30,HZB30..WC198205-199301

88601HBULB, INDICATOR LAMP

main90981-11014iFB30,RB20..WC198205-199301

14V 1.4W,12V 1.4W

main90981-16020iBB2#,HB30,HZB30..WC198205-199301

24V 1.8W,24V 1.8W

main90981-16020iBB20..RHD..STD..HRF..GEN198405-198510

24V 1.8W,24V 1.8W,HONG KONG SPEC

88610CSWITCH ASSY, COOLER CONTROL

main84660-90B00iRB20..WC198205-198510

sub84660-90B04

main84660-90B01iBB20..WC198205-198510

sub84660-90B05

main84660-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub84660-90B05

main84660-90B02iRB20..17S198510-199301

AUTO COOLER

main84660-90B03iBB20,21,HB30,HZB30..EX,EXS198510-199301

AUTO COOLER

main84660-90B04iRB20..WC198510-199301

main84660-90B05iHDB30..EUR198510-199301

88610FBULB, COOLER CONTROL SWITCH

main90981-11014iFB30,RB20..WC198205-199301

12V 1.4W

main90981-16020iBB2#,HB30,HZB30..WC198205-199301

24V 1.8W

main90981-16020iBB20..RHD..STD..HRF..GEN198405-198510

24V 1.8W,HONG KONG SPEC

main90981-16020iHDB30..EUR199109-199301

88611AKNOB, COOLER CONTROL SWITCH

main84731-12032iBB20..RHD..STD..HRF..GEN198405-198510

COOLER VOLUME,HONG KONG SPEC

main84731-12032iHDB30..EUR198205-199301

COOLER VOLUME

main84731-20030iHDB30..EUR198205-199301

FAN CONTROL,NO.1

sub84731-60060

main84731-20030iBB20..RHD..STD..HRF..GEN198405-198510

FAN CONTROL,HONG KONG SPEC

sub84731-60060

main88611-90B00iBB20,21,HB30,HZB30,RB20..EX,EXS198510-199301

FAN CONTROL,NO.2(AUTO COOLER)

88619APANEL, CONTROL

main88619-90B00iBB20,RB20..WC198205-198510

main88619-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88619-90B01iBB20,21,HB30,HZB30,RB20..EX,EXS198510-199301

AUTO COOLER

main88619-90B02iBB2#,FB30,HB30,HZB30,RB20..WC198510-199301

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9017011206

main90170-11206

9046108116

main90461-08116

9046108557

main90461-08557

9046310060

main90463-10060

9046312008

main90463-12008

9046400199

main90464-00199

9046400209

main90464-00209

9048001503

main90480-01503

9131913006

main91319-13006

9165140616

main91651-40616

9356614512

main93566-14512

9356654512

main93566-54512

9356815016

main93568-15016

30 parts on this diagram · 8 diagrams in section
