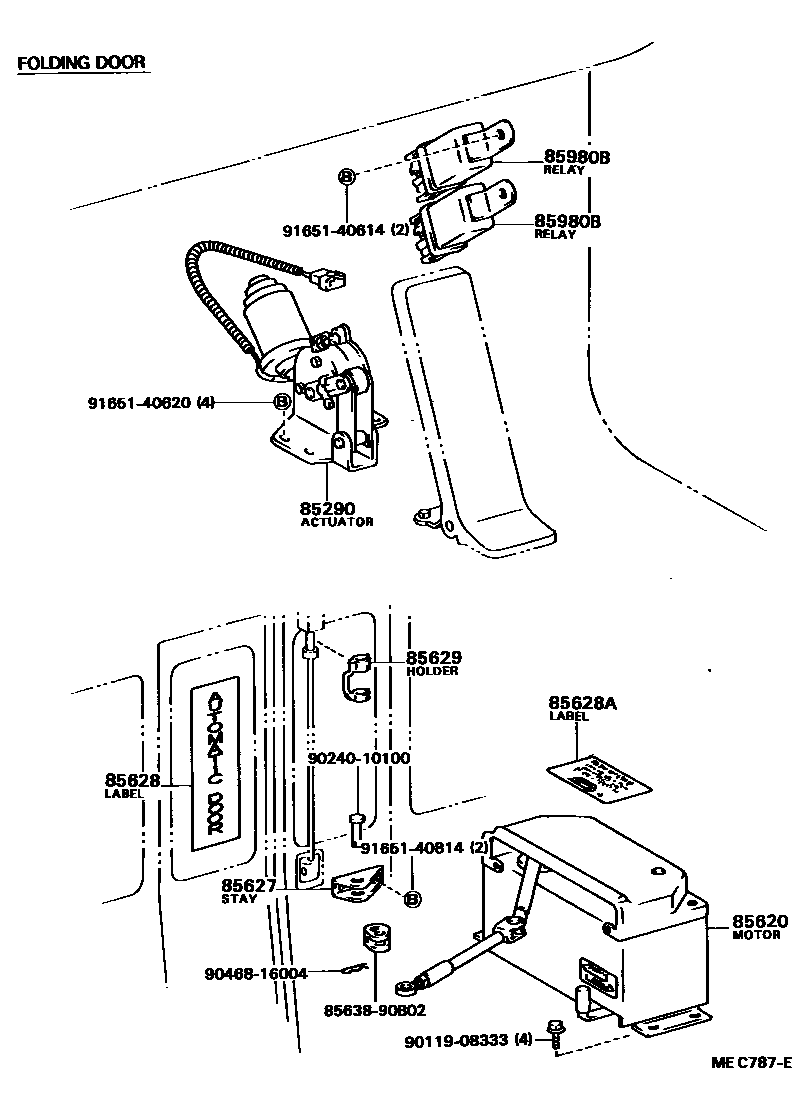

AUTOMATIC DOOR

0001 1 0002 1 0003 1 0004 1 0005 1

85290ACTUATOR ASSY, ACCEL INTOR LOCK

main85290-90B00iBB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)198205-198808

24V

main85290-90B01iBB20..DLX..WOC;BB20..WOC..ARL198205-198808

12V

main85290-90B02iBB21,HB30,HZB30..(DLX,EXS)..(16S,22S,23S,26S,29S,30S)198808-199301

24V

main85290-90B03iFB30,RB20..GEN,ME198808-199301

12V

85620MOTOR ASSY, AUTOMATIC DOOR REGULATOR

main85620-90B00iBB20..WC..ARL198205-198310

sub85620-36320

main85620-90B01iRB20..ARL;BB20..WOC..ARL198205-198310

main85620-90B02iBB20,21,HB30..RHD..(22S,26S,30S)198302-198808

24V,FOLDING DOOR

main85620-90B02iBB20..RHD..DLX..GEN198205-198302

24V

main85620-90B03iRB20..RHD..DLX..GEN198205-198302

12V

main85620-90B03iRB20..RHD..GEN198302-198808

FOLDING DOOR

main85620-90B03iRB20..RHD..GEN198302-198808

12V,FOLDING DOOR

main85620-90B04iBB20,21,HB30..LHD..(GEN,ME)198302-198808

24V,FOLDING DOOR

main85620-90B04iBB20..LHD..DLX..GEN198205-198302

24V

main85620-90B05iRB20..LHD..(DLX,EXS)198205-198302

12V

main85620-90B05iFB30,RB20..LHD198302-198808

FOLDING DOOR

main85620-90B05iFB30,RB20..LHD198302-198808

12V,FOLDING DOOR

main85620-90B06iBB20..LHD..GEN198310-198510

24V,GLIDE DOOR

sub85620-90B13

main85620-90B07iRB20..LHD198310-198510

GLIDE DOOR

sub85620-90B14

main85620-90B07iBB20..LHD..WOC198310-198510

12V,GLIDE DOOR

sub85620-90B14

main85620-90B08iBB20..20S..WC;BB20..RHD..(16S,22S,26S)198310-198510

24V,GLIDE DOOR

sub85620-90B11

main85620-90B09iBB20..RHD..WOC198310-198510

12V,GLIDE DOOR

sub85620-90B12

main85620-90B09iBB20..RHD..WOC198310-198510

GLIDE DOOR

sub85620-90B12

main85620-90B11iBB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)198510-198808

24V,GLIDE DOOR

sub85620-36330

main85620-90B12iRB20..RHD..GEN198510-198808

12V,GLIDE DOOR

main85620-90B13iBB20,21,HB30..LHD198510-198808

24V,GLIDE DOOR

main85620-90B14iBB20,21,HB30..LHD..WOC198510-198808

12V,GLIDE DOOR

main85620-90B14iBB20,21,HB30..LHD..WOC198510-198808

GLIDE DOOR

main85620-90B15iRB20..RHD..GEN198808-199301

12V,GLIDE DOOR

sub85620-36340

main85620-90B16iBB21,HB30,HZB30..STD..GEN198808-199301

24V,GLIDE DOOR

sub85620-36350

main85620-90B17iFB30,RB20..LHD198808-199301

12V,GLIDE DOOR

sub85620-36360

main85620-90B18iBB21,HB30,HZB30..LHD198808-199301

24V,GLIDE DOOR

sub85620-36370

main85620-90B19iBB21,HB30,HZB30..RHD..WOC..GEN198808-199301

12V,FOLDING DOOR

main85620-90B19iBB21,HB30,HZB30..RHD..WOC..GEN198808-199301

FOLDING DOOR

main85620-90B20iBB21,HB30,HZB30..RHD..GEN198808-199301

24V,FOLDING DOOR

main85620-90B21iBB21,HB30,HZB30..LHD..WOC198808-199301

12V,FOLDING DOOR

main85620-90B21iBB21,HB30,HZB30..LHD..WOC198808-199301

FOLDING DOOR

main85620-90B22iBB21,HB30,HZB30..LHD198808-199301

24V,FOLDING DOOR

85627STAY, AUTOMATIC DOOR REGULATOR

main85627-90B00iBB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME198205-199301

85628LABEL, AUTOMATIC DOOR, NO.1

main85628-90B02iBB20,RB20..ARL,GEN198310-199301

GLIDE DOOR

main85628-90B02iBB20,RB20..ARL198205-198310

main85628-90B03iBB20,RB20..(DLX,EXS)..GEN198205-198302

main85628-90B03iBB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME198302-199301

FOLDING DOOR

85628ALABEL, AUTOMATIC DOOR, NO.2

main85628-90B06iBB20,RB20..ARL198205-198310

sub85628-90B15

main85628-90B07iBB20,RB20..GEN198205-198310

sub85628-90B16

main85628-90B14iBB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S)198310-199301

FOLDING DOOR

sub85628-36050

main85628-90B15iBB20,21,HB30,HZB30,RB20..(DLX,EXS)..ARL198310-199301

GLIDE DOOR

main85628-90B16iBB20,21,FB30,HB30,HZB30,RB20..LHD..(GEN,ME)198310-199301

FOLDING DOOR

sub85628-36060

85629HOLDER, AUTOMATIC DOOR

main85629-90B01iBB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME198205-199301

85980BRELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)

main28380-20010iRB20..WC..ARL;FB30,RB20..GEN,ME198205-199301

12V

main85940-26010iBB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)198205-199301

24V

8563890B02SPACER, SLIDE ROOF MOTOR DRIVE

main85638-90B02

9011908333

main90119-08333

9024010100

main90240-10100

9046816004

main90468-16004

9165140614

main91651-40614

9165140620

main91651-40620

9165140814

main91651-40814

14 parts on this diagram · 5 diagrams in section
