REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-90B04iBB21,HZB30..WOC..(GEN,ME)¥32,500198205-199301

12V

main85110-90B05iHB30..DLX;BB21..DLX,STD;HB30..STD..GEN;BB20..20S,22S,26S¥32,500198205-199301

24V

main85110-90B06iBB20,21,HB30,HZB30..DLX..WOC¥32,500198205-199301

12V,W/FOLDING SEAT

main85110-90B07iBB20,21,HB30,HZB30..EX,EXS¥32,500198303-199301

24V

main85110-90B07iBB20,21,HB30,HZB30..DLX..(GEN,ME)¥32,500198205-199301

24V,W/FOLDING SEAT

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-90B02iBB20,RB20..DLX,EXS¥870198205-199301

sub85185-95J01¥320

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90170-22002iBB20,RB20..DLX,EXS¥250198205-199301

85168UCOVER, REAR WIPER

main85298-90B00iBB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME)¥7,600198205-199301

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90209-22005iBB20,RB20..DLX,EXS¥520198205-199301

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iBB20,RB20..DLX,EXS¥70198205-199301

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-90B01iBB20,RB20..DLX,EXS¥1,090198205-199301

85190RARM ASSY, REAR WIPER

main85190-90B02iBB20,RB20..DLX,EXS¥3,350198205-199301

85192RCOVER, REAR WIPER ARM

main85195-95401iBB20,RB20..DLX,EXS¥500198205-199301

85220RBLADE ASSY, REAR WIPER

main85220-95A06iBB20,RB20..DLX,EXS¥1,910198205-199301

85221RBLADE, REAR WIPER

main85221-22030iBB20,RB20..DLX,EXS198205-199301

sub85221-10050¥550

9010906100

main90109-06100¥90

9046706024

main90467-06024¥370

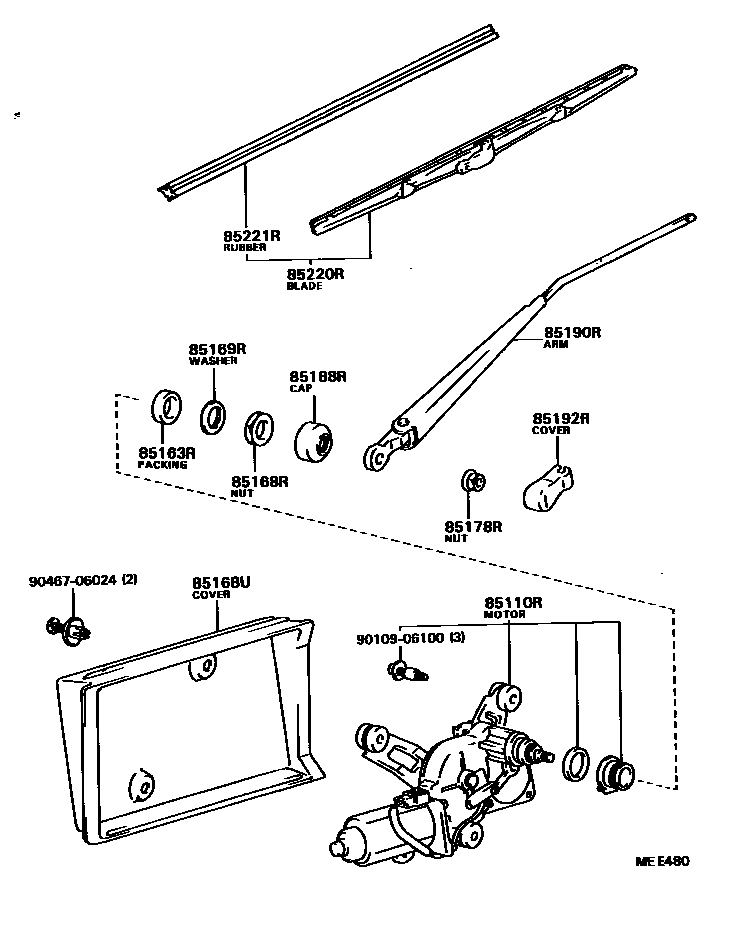

13 parts on this diagram · 1 diagram in section
