SEAT BELT

0001 1 0002 1 0003 1

73130BELT ASSY, FRONT SEAT LAP TYPE, RH

main73130-90B01iBB20,RB20..RHD..GEN198205-198303

main73130-90B01iBB20,21,HB30,RB20..RHD..GEN198303-198808

RH

main73130-90B01-06iBB21,HB30,HZB30,RB20..RHD..(DLX,STD)..GEN198808-199301

SABLE,SABLE

sub73130-90B01

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main73130-90B02iBB20,21,FB30,HB30,RB20..LHD..(DLX,STD)..GEN198205-198808

main73130-90B02-06iBB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD)..GEN198808-199301

SABLE,SABLE

sub73130-90B02

main73130-90B03iBB20,21,FB30,RB20..(DLX,STD)..ME198510-198808

main73130-90B03iBB20,RB20..LHD..(22S,26S)..GEN198308-198510

*SAA,S.OMAN SPEC

main73130-90B03-06iBB21,FB30,HZB30,RB20..(DLX,STD)..ME198808-199301

SABLE,SABLE

sub73130-90B03

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-36040-E0iBB21,HZB30..ARL199205-199301

SABLE,SABLE

main73210-90B01iBB20..RHD..STD..HRF..GEN198405-198808

HONG KONG SPEC

main73210-90B01iBB2#..15S198510-198808

main73210-90B01-06iBB23198808-199301

SABLE,BROWN

sub73210-90B01

main73210-90B01-06iBB23198808-199301

HONG KONG SPEC,SABLE,BROWN

sub73210-90B01

main73210-90B02iBB20,21,HB30,RB20..ARL198205-198808

main73210-90B02-06iBB21,HB30,HZB30,RB20..ARL198808-199205

SABLE,SABLE

sub73210-90B02

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-90B01iRB20..17S198205-198808

main73210-90B01-06iBB21,FB30,HZB30,RB20..(DLX,STD)..ME198808-199301

SABLE,BROWN

sub73210-90B01

main73210-90B04iBB2#..15S198510-198808

main73210-90B04iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main73210-90B04-06iBB23198808-199301

SABLE,SABLE

sub73210-90B04

main73360-36020-E0iBB21,HZB30..ARL199205-199301

SABLE,SABLE

main73360-90B00iBB20,21,HB30,RB20..ARL198205-198808

main73360-90B00-06iBB21,HB30,RB20..ARL198808-199001

SABLE,SABLE

sub73360-90B00

main73360-90B01-06iBB21,HZB30,RB20..ARL199001-199205

SABLE,SABLE

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-36030-E0iBB21,HZB30..ARL199205-199301

SABLE,SABLE

main73230-90B00iHB30..RHD..30S..WC198405-198808

HONG KONG SPEC

main73230-90B00iBB20,21,HB30,RB20..ARL198205-198808

main73230-90B00-06iHB30,HZB30..26S198808-199301

HONG KONG SPEC,SABLE,SABLE

sub73230-90B00

main73230-90B00-06iBB21,HB30,HZB30,RB20..ARL198808-199301

SABLE,SABLE

sub73230-90B00

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-36010-E0iBB21,HZB30..ARL199205-199301

SABLE,SABLE

main73240-90B00iBB20,RB20..17S,20S198205-198808

main73240-90B00-06iRB20..17S..GEN198808-199301

SABLE,SABLE

sub73240-90B00

main73240-90B01iBB20,21,HB30,RB20..ARL198303-198808

main73240-90B01-06iBB21,HB30,RB20..ARL198808-199001

SABLE,SABLE

sub73240-90B01

main73240-90B02iRB20..17S..ME198510-198808

main73240-90B02iRB20..17S198308-198510

*SAA

main73240-90B02-06iRB20..17S..ME198808-199301

SABLE,SABLE

sub73240-90B02

main73240-90B03iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main73240-90B03iBB2#..15S198510-198808

main73240-90B03-06iBB23198808-199301

SABLE,SABLE

sub73240-90B03

main73240-90B04-06iBB21,HZB30,RB20..ARL199001-199205

SABLE,SABLE

73330BBELT ASSY, SEAT LAP TYPE, NO.1

main73330-90B00iRB20..LHD..DLX..26S..4F198205-198510

sub73330-90B06

main73330-90B01iRB20..17S198205-198510

NO.2 SEAT

sub73330-90B05

main73330-90B05iHB30,RB20..EX,EXS198510-198708

NO.2 SEAT

sub73330-90B10

main73330-90B06iRB20..17S198510-198708

sub73330-90B09

main73330-90B07-02iBB21,FB30,RB20..ME198611-198808

SUB SEAT,DARK WINE,DARK WINE

main73330-90B07-06iBB21,FB30,RB20..(DLX,STD)..ME198808-199008

SUB SEAT,SABLE,SABLE

main73330-90B09-02iHB30..26S198708-198808

D-WINE,DARK WINE

sub73330-90B10

main73330-90B09-06iHB30,HZB30..26S198808-199301

SABLE,SABLE

sub73330-90B10

main73330-90B10-02iBB21,FB30,RB20..(DLX,STD)..ME198708-198808

NO.2 SEAT,D-WINE,DARK WINE

main73330-90B10-02iHB30..26S198708-198808

D-WINE,DARK WINE

main73330-90B10-06iBB21,FB30,HZB30,RB20..(DLX,STD)..ME198808-199301

SABLE,SABLE

main73330-90B10-06iBB21,FB30,HZB30,RB20..(DLX,STD)..ME198808-199301

NO.2 SEAT,SABLE,SABLE

main73330-90B11-02iRB20..17S198708-198808

D-WINE,DARK WINE

main73330-90B11-06iRB20..17S..ME198808-199301

SABLE,SABLE

main73330-90B11-06iHB30..26S198808-199001

ASSISTANT SEAT,SABLE,SABLE

main73330-90B12-02iRB20..17S198708-198808

NO.2 SEAT,D-WINE,DARK WINE

main73330-90B12-06iRB20..17S198808-199301

NO.2 SEAT,SABLE,SABLE

main73330-90B13-06iBB21,FB30,RB20..(DLX,STD)..ME199008-199301

SUB SEAT,SABLE,SABLE

73340BBELT ASSY, SEAT LAP TYPE, NO.2

main73340-90B00iRB20..17S198205-198510

sub73340-90B02

main73340-90B02iRB20..17S198510-198708

sub73340-90B04

main73340-90B04-02iRB20..17S198708-198808

W/*RRS,D-WINE,DARK WINE

main73340-90B04-02iRB20..17S198708-198808

D-WINE,DARK WINE

main73340-90B04-06iHB30,HZB30..26S198808-199301

W/*RRS,SABLE,SABLE

main73340-90B04-06iRB20..17S198808-199301

BROWN,SABLE

73350BBELT ASSY, SEAT LAP TYPE, NO.3

main73350-90B00iRB20..17S198205-198510

sub73350-90B03

main73350-90B03iHB30..26S198510-198708

sub73350-90B06

main73350-90B06-02iHB30..26S198708-198808

D-WINE,DARK WINE

main73350-90B06-06iHB30,HZB30..26S198808-199301

SABLE,SABLE

73380BBELT ASSY, SEAT LAP TYPE, NO.4

main73380-36020-E0iBB21,HZB30..ARL199205-199301

SABLE,SABLE

main73380-90B03iRB20..17S198205-198510

RH

sub73380-90B07

main73380-90B04iRB20..17S198205-198510

CTR

sub73380-90B06

main73380-90B05iRB20..17S198205-198510

LH

sub73380-90B09

main73380-90B06iHB30..26S198510-198708

CTR

sub73380-90B15

main73380-90B07iHB30..26S198510-198708

RH

sub73380-90B13

main73380-90B09iHB30..26S198510-198708

LH

main73380-90B09-06iRB20..17S198808-199301

LH,SABLE,SABLE

sub73380-90B09

main73380-90B09-06iHB30,HZB30..26S198808-199301

LH,BROWN,SABLE

sub73380-90B09

main73380-90B13-02iHB30..26S198708-198808

RH,D-WINE,DARK WINE

main73380-90B13-06iHB30,HZB30..26S198808-199301

RH,SABLE,SABLE

main73380-90B15-02iHB30..26S198708-198808

CTR RH,D-WINE,DARK WINE

main73380-90B15-06iRB20..17S198808-199301

CTR,RH,SABLE,SABLE

main73380-90B17-02iRB20..17S198708-198808

CTR LH,D-WINE,DARK WINE

main73380-90B17-06iRB20..17S198808-199301

CTR,LH,SABLE,SABLE

9056010200

main90560-10200

9056011011

main90560-11011

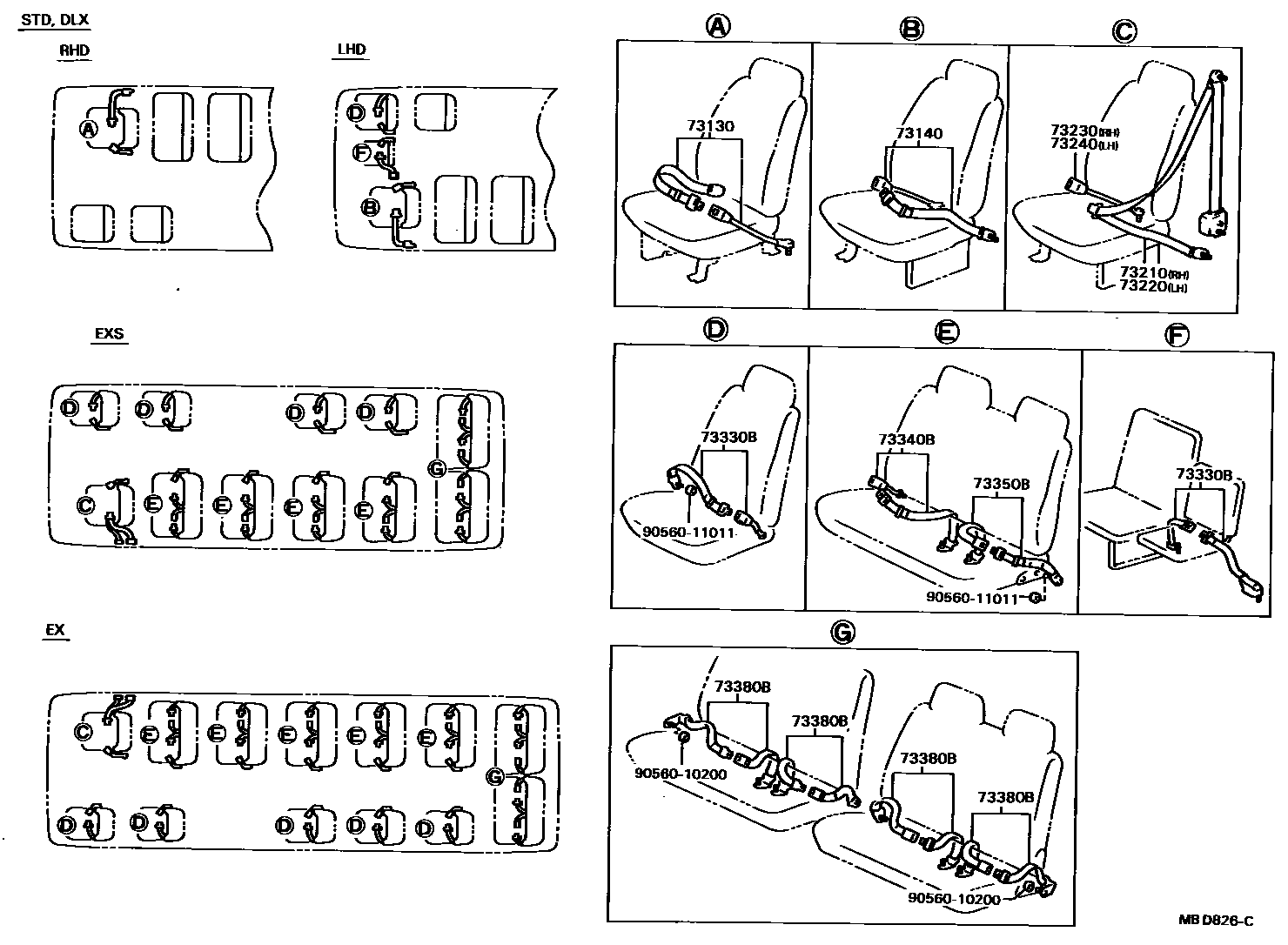

12 parts on this diagram · 3 diagrams in section
