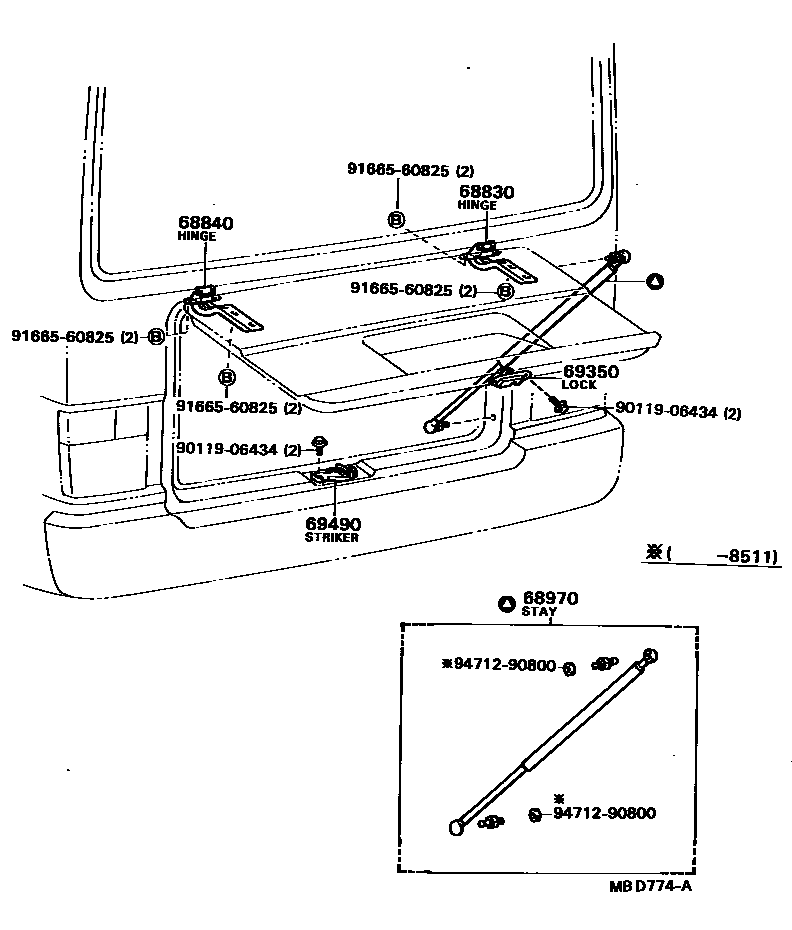

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1

68830HINGE ASSY, BACK DOOR, RH

main68801-90B00iBB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20198205-199301

main68801-90B02iBB20,RB20..(22S,26S)..GEN198302-199301

UPR,*DSBD

main68803-90B02iBB20,RB20..(22S,26S)..GEN198302-199301

LWR,*DSBD

68840HINGE ASSY, BACK DOOR, LH

main68801-90B00iBB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20198205-199301

main68801-90B01iBB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME198302-199301

UPR,*DSBD

main68803-90B01iBB20,RB20..(22S,26S)..GEN198302-199301

LWR,*DSBD

68970STAY ASSY, BACK DOOR, RH

main68950-39035iBB20,21,FB30,HB30,RB20..(DLX,STD)..(20S,22S,23S,25S,26S,29S,30S)198205-198808

sub68950-39185

main68950-39045iBB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME)198205-198808

W/BACK DOOR TRIM BOARD

sub68950-39195

main68950-39185iBB21,32,FB30,HB30,HZB30,RB20..DLX,STD198808-199301

main68950-39195iBB21..16S198808-199301

W/BACK DOOR TRIM BOARD

69350LOCK ASSY, BACK DOOR

main69350-90B00iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198808

sub69350-90B05

main69350-90B01iBB2#..15S198510-198808

*SSBD

sub69350-90B06

main69350-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub69350-90B06

main69350-90B05iBB21,32,FB30,HB30,HZB30,RB20198808-199301

main69350-90B06iBB23198808-199301

*SSBD

69490STRIKER ASSY, BACK DOOR LOCK

main69430-90B00iBB20,21,HB30..LHD..STD..(26S,30S)198510-198808

*SSBD

sub69430-90B03

main69430-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub69430-90B03

main69430-90B02iBB21,32,FB30,HB30,HZB30,RB20198808-199301

main69430-90B03iHZB30..RHD..30S198808-199301

*SSBD

main69430-95701iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198808

sub69430-90B02

9011906434

main90119-06434

9166560825

main91665-60825

9471290800

main94712-90800

8 parts on this diagram · 3 diagrams in section
