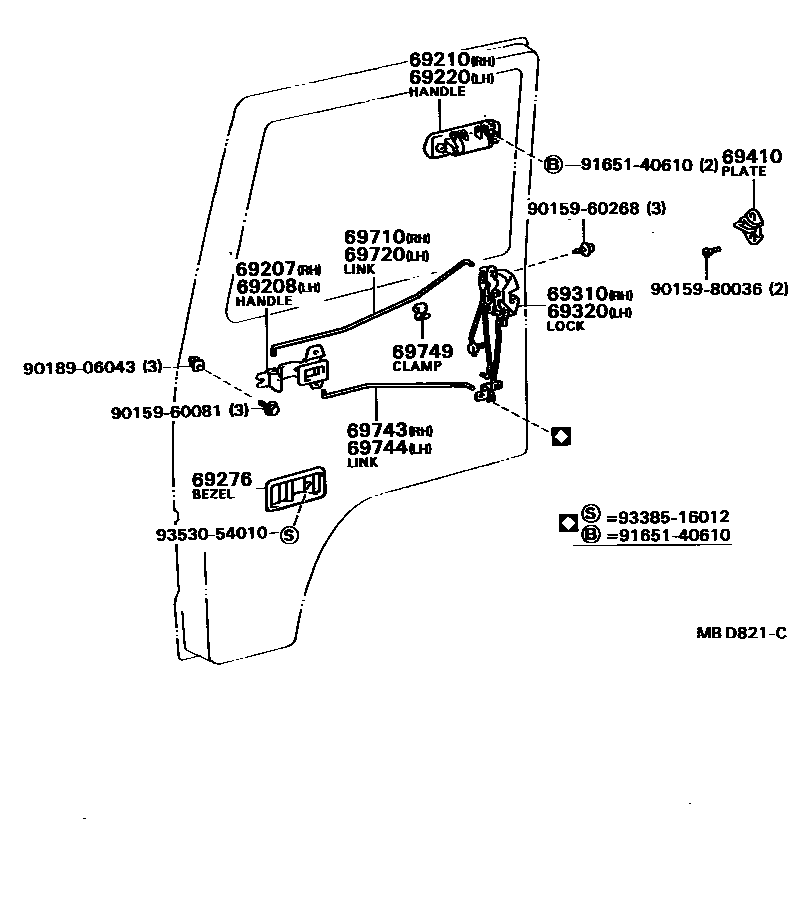

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69206-12060-02iBB2#,HB30,RB20..RHD198205-198808

DARK WINE,RED/MAROON

sub69206-12060

main69206-12060-46iBB2#,HB30,HZB30,RB20..RHD198808-199301

SABLE,SABLE

sub69206-12060

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-12060-02iBB20,21,FB30,HB30,RB20..LHD198205-198808

DARK WINE,RED/MAROON

main69205-12060-46iBB21,32,FB30,HB30,HZB30,RB20..LHD198808-199301

SABLE,SABLE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12040iBB20,RB20..RHD198205-198212

main69210-90B00iBB2#,HB30,HZB30,RB20..RHD198212-199301

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12040iBB20,RB20..LHD198205-198212

main69220-90B00iBB20,21,32,FB30,HB30,HZB30,RB20..LHD198212-199301

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-12020-02iBB2#,HB30,RB20..RHD198205-198808

DARK WINE,RED/MAROON

sub69277-12020

main69277-12020-46iBB21,HB30,HZB30,RB20..RHD198808-199301

SABLE,SABLE

sub69277-12020

main69278-12020-02iBB20,21,FB30,HB30,RB20..LHD198205-198808

DARK WINE,RED/MAROON

sub69278-12020

main69278-12020-46iBB21,32,FB30,HB30,HZB30,RB20..LHD198808-199301

SABLE,SABLE

sub69278-12020

69310LOCK ASSY, FRONT DOOR, RH

main69310-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

69320LOCK ASSY, FRONT DOOR, LH

main69320-90B00iBB20,21,32,FB30,HB30,HZB30,RB20..LHD198205-199301

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-90B00iBB2#,FB30,HB30,RB20198205-198808

sub69410-90B01

main69410-90B01iBB2#,32,FB30,HB30,HZB30,RB20198808-199301

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-90B00iBB20,21,32,FB30,HB30,HZB30,RB20..LHD198205-199301

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-90B00iBB20,21,32,FB30,HB30,HZB30,RB20..LHD198205-199301

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iBB2#,HB30,HZB30,RB20..RHD198205-199301

9015960081

main90159-60081

9015960268

main90159-60268

9015980036

main90159-80036

9018906043

main90189-06043

9165140610

main91651-40610

9338516012

main93385-16012

9353054010

main93530-54010

20 parts on this diagram · 1 diagram in section
