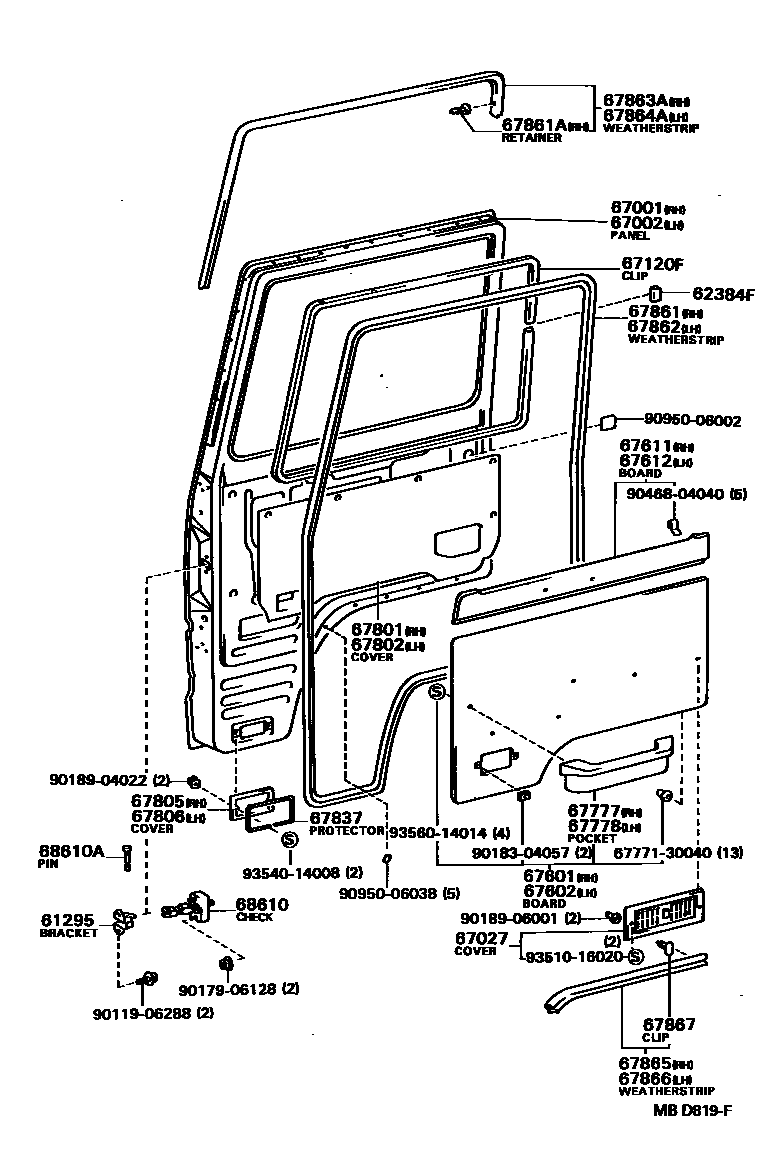

FRONT DOOR PANEL & GLASS

0001 1 0002 1

61295BRACKET, FRONT DOOR CHECK ARM

main61295-90B00iBB2#,FB30,HB30,RB20198205-198808

sub61295-90B01

main61295-90B01iHZB30198808-199301

62384FCAP,FRONT DOOR WINDOW

main62384-90B00-08iBB32..4FC198810-199301

IVORY,IVORY

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90B03iBB20,RB20..RHD198205-198510

sub67001-90B11

sub67863-90B02

main67001-90B07iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub67001-90B12

sub67863-90B02

main67001-90B11iHZB30..RHD198510-199301

main67001-90B12iHB30..RHD..30S..WC198708-199301

HONG KONG SPEC

main67001-90B12iBB2#..15S198510-199301

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67001-90B04iBB20,RB20..LHD198205-198510

sub67002-90B02

sub67864-90B02

main67002-90B02iBB32..4FC198510-199301

67027COVER SUB-ASSY, DOOR VENTILATING HOLE

main68300-95400-02iBB2#,FB30,HB30,RB20198205-198808

DARK WINE,DARK WINE

sub68300-95400

main68300-95400-16iBB2#,FB30,HB30,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub68300-95400

main68330-95400-16iBB21,FB30,HZB30199205-199301

SABLE

67120SASH ASSY, FRONT DOOR OUTER

main62035-90B00iBB20,RB20..RHD..(DLX,STD)198205-198408

main62035-90B01iBB20..16S198303-198408

main62035-90B02iBB20,RB20..RHD..(DLX,STD)198408-198510

sub62035-90B04

main62035-90B03iBB20..16S198408-198510

sub62035-90B05

main62035-90B04iHZB30..RHD198510-199301

main62035-90B05iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2 OR HONG KONG PACKAGE 3

main62035-90B05iBB20,21..16S198510-199301

main62045-90B00iBB20,RB20..LHD..(22S,26S)198205-198408

main62045-90B01iRB20..17S198205-198408

main62045-90B02iBB20,RB20..LHD..(22S,26S)198408-198510

sub62045-90B04

main62045-90B03iRB20..17S198408-198510

sub62045-90B05

main62045-90B04iBB32..4FC198510-199301

main62045-90B05iRB20..17S198510-199301

67120FCLIP, FRONT DOOR WINDOW OUTER SASH

main62375-90B00iBB20,RB20198205-198307

sub62375-90B02

sub62384-90B00

main62375-90B01iBB2#,FB30,HB30,RB20198307-198809

sub62375-90B03

sub62384-90B00

main62375-90B02iBB2#,FB30,HB30,RB20198809-199301

main62375-90B03iHZB30..LHD199001-199301

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-90B01iBB2#,HB30,RB20..RHD..GEN198205-198808

sub67610-90B00

main67610-90B01-06iBB2#,HB30,HZB30,RB20..RHD..(DLX,STD)..GEN198808-199301

SABLE,SABLE

sub67610-90B01

sub67610-90B00

main67610-90B02iBB20,21,HB30,RB20..20S,23S198205-198808

main67610-90B02-06iBB21,HB30,HZB30,RB20..20S,23S198808-199301

SABLE,SABLE

sub67610-90B02

main67630-90B00-06iHB30..26S198808-199301

SABLE,SABLE

sub67630-90B00

main67630-90B01iBB20..16S198303-198510

main67630-90B02iBB20,21,HB30..EX,EXS198510-198808

main67630-90B02-06iBB21..16S198808-199205

SABLE,SABLE

sub67630-90B02

main67630-90B04-06iHZB30..26S199001-199301

SABLE,SABLE

main67630-90B05-06iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2,SABLE,SABLE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-90B00iBB20,21,FB30,HB30,RB20..LHD..(DLX,STD)198205-198708

sub67620-90B06

main67620-90B06-02iBB21,FB30,HB30,RB20..LHD..(DLX,STD)198708-198808

DARK WINE,DARK WINE

main67620-90B06-06iHZB30..LHD..GEN198808-199301

SABLE,SABLE

main67620-90B09-06iHZB30..ME199001-199301

SABLE,SABLE

main67640-90B00iRB20..17S198205-198510

main67640-90B01iRB20..17S198510-198708

sub67640-90B02

main67640-90B02-05iRB20..17S198708-198808

BEIGE,GRAIGE

main67640-90B02-06iRB20..17S198808-199301

SABLE,SABLE

67611BOARD, FRONT DOOR TRIM, UPPER RH

main67610-90B05iBB20,21,HB30..EX,EXS198303-198808

main67610-90B05-06iBB21..16S198808-199301

SABLE,SABLE

sub67610-90B05

main67610-90B07-06iHB30..26S198808-199301

SABLE,SABLE

sub67610-90B07

main67610-90B13-06iHZB30..26S199001-199301

SABLE,SABLE

main67610-90B14-06iBB21..16S199108-199205

SABLE,SABLE

main67610-90B19-06iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2,SABLE,SABLE

67612BOARD, FRONT DOOR TRIM, UPPER LH

main67620-90B01iRB20..17S198205-198708

sub67620-90B07

main67620-90B07-02iRB20..17S198708-198808

DARK WINE,DARK WINE

main67620-90B07-06iRB20..17S198808-199301

SABLE,SABLE

main67620-90B08-06iRB20..17S199001-199301

SABLE,SABLE

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-02iBB2#,HB30,RB20..RHD198205-198808

DARK WINE,RED/MAROON

sub67777-22040

main67777-22040-50iBB2#,HB30,HZB30,RB20..RHD198808-199301

SABLE,SABLE

sub67777-22040

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-02iBB20,21,HB30,RB20..LHD198205-198808

DARK WINE,RED/MAROON

sub67778-22030

main67778-22030-40iHZB30..LHD..GEN198808-199301

SABLE,SABLE

sub67778-22030

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67801-90B00iHZB30..RHD198205-199301

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67802-90B00iBB21,FB30,HB30,RB20..LHD198205-199301

main67802-90B01iBB21,FB30,HB30,RB20..LHD198708-198909

sub67802-90B00

67805COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH

main61791-90A00iBB2#,HB30,RB20..RHD198205-198709

sub61791-90B01

main61791-90B01iBB2#,HB30,RB20..RHD198709-199301

67806COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH

main61791-90A00iBB20,21,FB30,HB30,RB20..LHD198205-198709

sub61791-90B01

main61791-90B01iHZB30..LHD198709-199301

67837PROTECTOR, FRONT DOOR SERVICE HOLE COVER

main67837-90B00iBB2#,FB30,HB30,RB20198205-199301

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iBB32..4FC198205-199301

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90B00iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

67863AWEATHERSTRIP, FRONT DOOR, UPPER RH

main67863-90B00iBB20,RB20..RHD198205-198510

main67863-90B02iBB2#,FB30,HB30,HZB30,RB20198510-199301

67864AWEATHERSTRIP, FRONT DOOR, UPPER, LH

main67864-90B00iBB20,RB20..LHD198205-198510

main67864-90B02iBB20,21,FB30,HB30,HZB30,RB20..LHD198510-199301

67865WEATHERSTRIP, FRONT DOOR, LOWER RH

main67853-90B00iBB20,21,HB30,HZB30..EX,EXS198303-199301

67866WEATHERSTRIP, FRONT DOOR LOWER, LH

main67853-90B00iRB20..17S198205-199301

67867CLIP, DOOR WEATHERSTRIP

main67868-30030iBB20,21,HB30,HZB30,RB20..EX,EXS198205-199301

68610CHECK ASSY, FRONT DOOR

main68610-90B00iBB2#,FB30,HB30,RB20198205-198808

sub68610-90B01

main68610-90B01iBB2#,FB30,HB30,RB20198808-199301

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010iBB20,RB20198205-198507

sub68617-90K00

main68617-90K00iBB32..4FC198507-199301

6777130040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30040

9011906288

main90119-06288

9017906128

main90179-06128

9018304057

main90183-04057

9018904022

main90189-04022

9018906001

main90189-06001

9046804040

main90468-04040

9095006002

main90950-06002

9095006038

main90950-06038

9351016020

main93510-16020

9354014008

main93540-14008

9356014014

main93560-14014

40 parts on this diagram · 2 diagrams in section
