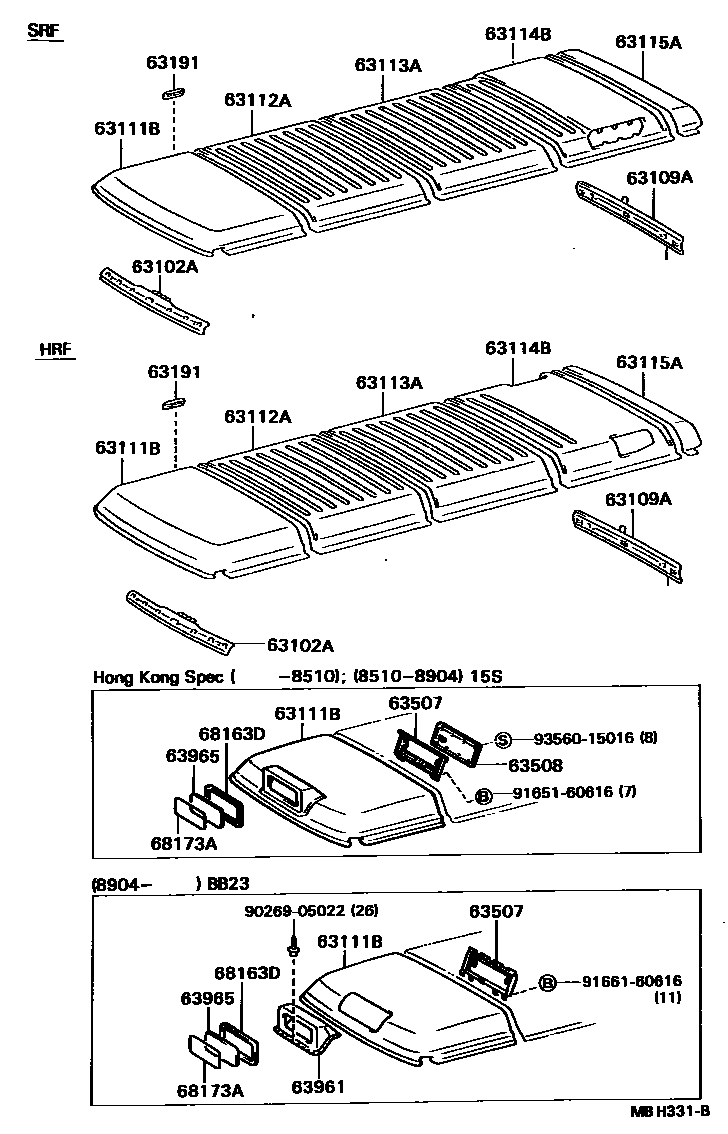

ROOF PANEL & BACK PANEL

0001 1 0002 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-90B00iBB32..4FC198205-199301

sub63131-90B00

sub63132-90B02

sub63145-90B00

main63102-90B01iBB20,21,FB30,HB30,RB20..DLX..SRF..(GEN,ME)198205-199301

W/CLOCK

sub63131-90B00

sub63132-90B00

sub63139-90B00

sub63145-90B00

main63102-90B02iBB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..HRF198205-199301

W/CLOCK

sub63131-90B00

sub63132-90B00

sub63139-90B01

sub63145-90B00

main63102-90B02iHZB30..(DLX,EX)..HRF199001-199301

sub63131-90B00

sub63132-90B00

sub63139-90B01

sub63145-90B00

main63102-90B03iBB2#..15S198510-198904

W/DESTINATION EXPRESS BOX

sub63131-90B00

sub63132-90B01

sub63145-90B00

sub63589-90B00

sub63589-90B01

main63102-90B03iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub63131-90B00

sub63132-90B01

sub63145-90B00

sub63589-90B00

sub63589-90B01

main63102-90B07iBB23198904-199301

W/DESTINATION EXPRES BOX

sub63131-90B00

sub63132-90B04

sub63145-90B00

sub63589-90B03

sub63589-90B04

63109APANEL SUB-ASSY, BACK WINDOW, UPPER

main63109-90B00iHZB30..WOC198205-199301

sub63134-90B00

sub63135-90B00

main63109-90B01iHZB30..WOC..GEN198205-199301

W/UNDER MIRROR

sub63134-90B00

sub63135-90B00

sub63137-90B00

main63109-90B02iBB20,21,FB30,HZB30,RB20..SRF..WC198205-199301

sub63134-90B00

sub63135-90B00

sub63138-90B00

main63109-90B03iBB20,21,FB30,RB20..SRF..WC..(GEN,ME)198205-199301

W/UNDER MIRROR

sub63134-90B00

sub63135-90B00

sub63137-90B00

sub63138-90B00

main63109-90B04iHZB30..RHD..WOC..GEN198510-199301

W/*SSBD,UNDER MIRROR

sub63109-90B05

main63109-90B05iBB20,21,RB20..RHD..SRF..26S..WC198510-199301

W/*SSBD,UNDER MIRROR

main63109-90B06iBB20,21,HB30,RB20..HRF..(20S,22S,23S,26S,30S)..WOC198205-198808

sub63109-90B00

main63109-90B07iBB20,21,HB30,RB20..HRF..(20S,22S,23S,26S,30S)..WOC198205-198808

W/UNDER MIRROR

sub63109-90B01

main63109-90B08iBB20,21,FB30,HB30,RB20..DLX..HRF..WC198205-199301

sub63134-90B00

sub61693-90K00

sub63135-90B02

sub63163-90B00

sub63164-90B00

sub63165-90B00

sub63166-90B00

main63109-90B09iBB20,21,FB30,HB30,RB20..HRF..WC198205-199301

W/UNDER MIRROR

sub63134-90B00

sub61693-90K00

sub63135-90B02

sub63137-90B00

sub63163-90B00

sub63164-90B00

sub63165-90B00

sub63166-90B00

main63109-90B10iHZB30..RHD..30S..WC198510-199301

W/*SSBD

main63109-90B10iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC,W/COOLER

main63109-90B10iBB2#..15S198510-198908

main63109-90B11iHZB30..RHD..WOC..GEN198510-199301

W/*SSBD

sub63109-90B13

main63109-90B11iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub63109-90B13

main63109-90B12iHZB30..RHD..30S..WC198510-199301

W/*SSBD,UNDER MIRROR

main63109-90B12iBB23198908-199301

main63109-90B13iBB20,21,RB20..RHD..SRF..26S..WC198510-199301

W/*SSBD

main63109-90B16iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2 & W/*SSBD;HONG KONG PACKAGE 3

main63109-90B16iHB30..RHD..30S..WC198911-199001

63111BPANEL, ROOF, NO.1

main63014-90B00iBB20,RB20..RHD..SRF198205-198211

W/ANTENNA

sub63111-90B00

main63014-90B01iBB20,RB20..LHD..SRF198205-198211

W/ANTENNA

sub63111-90B00

main63014-90B02iBB20,RB20..RHD..DLX..HRF198205-198211

sub63111-90B03

main63014-90B03iBB20,RB20..LHD..(DLX,EXS)..HRF198205-198211

sub63111-90B03

main63014-90B04iBB2#..15S198510-198904

W/DESTINATION EXPRESS BOX

main63014-90B04iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main63014-90B07iBB23198904-199301

W/ANTENNA

sub63111-90B10

sub63191-90B00

main63111-90B00iBB20,21,FB30,HB30,HZB30,RB20..SRF198205-199301

main63111-90B03iBB2#,32,FB30,HB30,HZB30,RB20..HRF198211-199301

W/O DESTINATION EXPRESS BOX

main63111-90B03iBB20,RB20..STD..HRF198205-198211

main63111-90B09iBB23198904-199301

W/ANTENNA

63112APANEL, ROOF, NO.2

main63112-90B00iBB20,21,FB30,HB30,HZB30,RB20..SRF198205-199301

main63112-90B01iBB20,21,RB20..SRF..(GEN,ME)198205-199301

W/ROOF RACK

main63112-90B02iBB2#,32,FB30,HB30,HZB30,RB20..HRF198205-199301

main63112-90B03iFB30,HB30..SRF198610-199301

W/ROOF RACK

63113APANEL, ROOF, NO.3

main63112-90B00iBB20,21,FB30,HB30,HZB30,RB20..SRF198205-199301

main63112-90B02iBB2#,32,FB30,HB30,HZB30,RB20..HRF198205-199301

main63113-90B00iBB20,21,FB30,HB30,RB20..SRF..(GEN,ME)198205-199301

W/ROOF RACK

63114BPANEL, ROOF, NO.4

main63018-90B00iBB20,21,RB20..SRF..WOC198205-199301

sub63116-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63837-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

sub63847-90B00

main63018-90B01iBB20,21,RB20..SRF..WC198205-199301

sub63116-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63836-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

main63018-90B02iBB20,21,RB20..HRF..WOC198205-199301

sub63116-90B01

sub63831-90B01

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63837-90B01

sub63841-90B01

sub63842-90B01

sub63843-90B01

sub63844-90B01

sub63847-90B01

main63018-90B03iBB2#..15S198205-199301

sub63116-90B01

sub63831-90B01

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63836-90B01

sub63841-90B01

sub63842-90B01

sub63843-90B01

sub63844-90B01

sub63846-90B00

main63018-90B03iBB20..RHD..STD..HRF..GEN198405-198510

W/COOLER

sub63116-90B01

sub63831-90B01

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63836-90B01

sub63841-90B01

sub63842-90B01

sub63843-90B01

sub63844-90B01

sub63846-90B00

main63018-90B04iBB20,21,RB20..EXS198205-199301

sub63116-90B01

sub63831-90B02

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63841-90B02

sub63842-90B01

sub63843-90B01

sub63844-90B01

main63018-90B05iBB20,21,RB20..SRF..WOC198205-199301

W/ROOF RACK

sub63116-90B02

sub63781-90B00

sub63782-90B00

sub63783-90B00

sub63784-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63837-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

sub63847-90B00

main63018-90B06iBB20,21,RB20..SRF..WC..(GEN,ME)198205-199301

W/ROOF RACK

sub63116-90B02

sub63781-90B00

sub63782-90B00

sub63783-90B00

sub63784-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63836-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

main63115-90B00iFB30,HB30,HZB30..SRF198610-199301

main63115-90B01iBB32,FB30,HB30,HZB30..HRF198610-199301

63115APANEL, ROOF, NO.5

main63018-90B00iFB30,HB30,HZB30..SRF..WOC198610-199301

sub63116-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63837-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

sub63847-90B00

main63018-90B01iFB30,HB30,HZB30..SRF..WC198610-199301

sub63116-90B00

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63836-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

main63018-90B02iHB30..HRF..WOC198610-199301

sub63116-90B01

sub63831-90B01

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63837-90B01

sub63841-90B01

sub63842-90B01

sub63843-90B01

sub63844-90B01

sub63847-90B01

main63018-90B03iFB30,HB30,HZB30..HRF..WC198610-199301

sub63116-90B01

sub63831-90B01

sub63832-90B01

sub63833-90B01

sub63834-90B01

sub63835-90B00

sub63836-90B01

sub63841-90B01

sub63842-90B01

sub63843-90B01

sub63844-90B01

sub63846-90B00

main63018-90B07iFB30,HB30,HZB30..WOC198610-199301

W/ROOF RACK

sub63116-90B03

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63837-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

sub63847-90B00

main63018-90B08iFB30,HB30,HZB30..SRF..WC198610-199301

W/ROOF RACK

sub63116-90B03

sub63831-90B00

sub63832-90B00

sub63833-90B00

sub63834-90B00

sub63836-90B00

sub63841-90B00

sub63842-90B00

sub63843-90B00

sub63844-90B00

main63018-90B16iBB23198908-199301

main63117-90B00iBB20,21,RB20..STD..SRF198205-199301

main63117-90B01iBB20,21,RB20..STD..SRF198205-199301

W/UNDER MIRROR

main63117-90B02iBB20,21,RB20..SRF198205-199301

W/*RW

main63117-90B03iBB20,RB20..DLX..SRF..GEN198205-199301

W/*RW,UNDER MIRROR

main63117-90B04iBB20,21,RB20..RHD..SRF..26S198510-199301

W/*SSBD,UNDER MIRROR

main63117-90B05iBB21..STD..HRF;BB20,RB20..STD..HRF..(20S,26S)198205-199301

main63117-90B06iBB21..STD..HRF;BB20,RB20..STD..HRF..(20S,26S)198205-199301

W/UNDER MIRROR

main63117-90B07iBB21,RB20..HRF;BB20..HRF..(16S,20S,22S,26S)198205-199301

W/*RW

main63117-90B08iBB21..HRF..GEN;BB20,RB20..HRF..(17S,22S,26S)198205-199301

W/*RW,UNDER MIRROR

main63117-90B09iBB20,21,RB20..STD..SRF198205-199301

W/ROOF RACK

main63117-90B10iBB20,21,RB20..STD..SRF198205-199301

W/ROOF RACK,UNDER MIRROR

main63117-90B11iBB20,RB20..DLX..SRF..GEN198205-198302

W/*RW,R00F RACK

main63117-90B11iBB20,21,RB20..SRF..(GEN,ME)198302-199301

W/*RW,ROOF RACK

main63117-90B12iBB20,21,RB20..SRF..(GEN,ME)198205-199301

W/*RW,R00F RACK,UNDER MIRROR

main63117-90B13iBB20,21,RB20..SRF..(GEN,ME)198302-199301

W/*DSBD

main63117-90B14iBB20,RB20..HRF..(22S,26S)198302-199301

W/*DSBD

main63117-90B15iBB20,21,RB20..RHD..HRF..26S198510-199301

W/*SSBD

main63117-90B15iBB2#..15S198510-198908

main63117-90B15iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main63117-90B16iBB20,21,RB20..RHD..HRF..26S198510-199301

W/*SSBD,UNDER MIRROR

main63117-90B16iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2 & W/*SSBD;HONG KONG PACKAGE 3 & W/*SSBD

main63117-90B17iBB20,21..LHD..SRF..26S198510-199301

W/*SSBD

63191RETAINER, ROOF PANEL

main63191-90B00iBB20,21,FB30,HB30,RB20198211-199301

W/ANTENNA

63507FRAME SUB-ASSY, GUIDE INDICATION TRIM

main63507-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main63507-90B00iBB2#..15S198510-198904

main63507-90B02iBB23198904-199301

63508BOARD ASSY, GUIDE INDICATION TRIM A

main63508-90B00iBB20..RHD..STD..HRF..GEN198405-198409

HONG KONG SPEC

63961COVER, ROOF GUIDE INDICATION

main63961-90B02iBB23198904-199301

sub63961-36900

63965GLASS, ROOF GUIDE INDICATION

main63965-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main63965-90B00iBB2#..15S198510-198904

main63965-90B02iBB23198904-199301

68163DWEATHERSTRIP, CENTER DOOR GLASS, OUTER

main68163-90B02iBB2#..15S198510-198904

main68163-90B02iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main68163-90B04iBB23198904-199301

68173AWEATHERSTRIP, CENTER DOOR GLASS, INNER

main68173-90B01iBB2#..15S198510-198904

sub68173-90B00

main68173-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub68173-90B00

main68173-90B03iBB23198904-199301

sub62794-90P80

9026905022

main90269-05022

9165160616

main91651-60616

9166160616

main91661-60616

9356015016

main93560-15016

18 parts on this diagram · 10 diagrams in section
