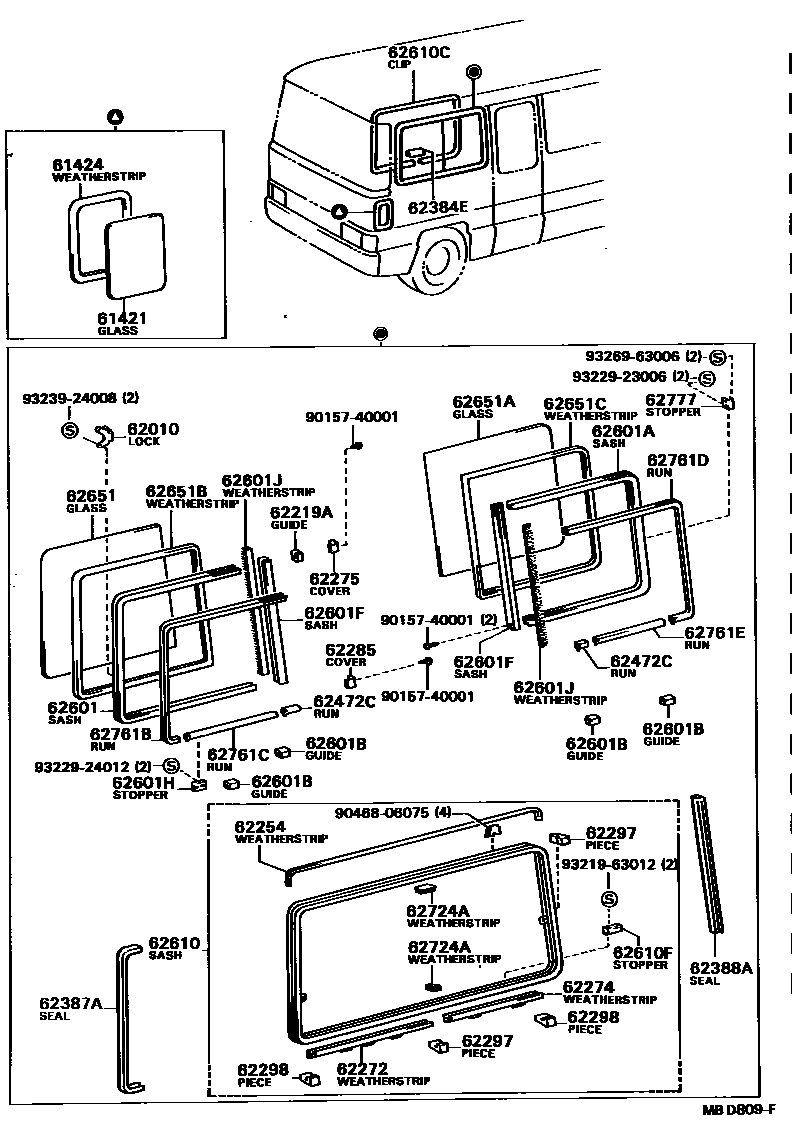

SIDE WINDOW
61421GLASS, SIDE LOWER WINDOW
*TT,T=3.5
62219AGUIDE, SIDE WINDOW
62254WEATHERSTRIP, SIDE WINDOW, UPPER NO.1
sub62153-90B01
62272WEATHERSTRIP, SIDE WINDOW, FRONT LOWER NO.1
62274WEATHERSTRIP, SIDE WINDOW, REAR LOWER NO.1
62275COVER, SIDE WINDOW, UPPER
RH
LH
62285COVER, SIDE WINDOW, LOWER
LH
RH
62297PIECE, SIDE WINDOW, NO.1
20 X 20
62298PIECE, SIDE WINDOW, NO.2
28 X 15
62384ECAP, SIDE WINDOW
IVORY,IVORY
HONG KONG PACKAGE 2,IVORY,IVORY
62472CRUN, SIDE WINDOW, LOWER
62601SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.1
HONG KONG PACKAGE 2
62601ASASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.1
W/*TL GLASS
W/*TL GLASS
HONG KONG PACKAGE 2
62601BGUIDE, SIDE WINDOW INNER SASH, NO.1
62601FSASH, SIDE WINDOW INNER CENTER, NO.1
FR
FR,BLACK
RR
RR,BLACK
62601HSTOPPER, SIDE WINDOW, NO.1
62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
sub62011-90B02
W/*TL GLASS
sub62021-90B09
sub62021-90B10
sub62021-90B13
W/*TL GLASS
HONG KONG PACKAGE 2
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
sub62376-90B02
62610FSTOPPER, SIDE WINDOW, REAR
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
*TT,T=4.0,*TT,T=4.0
*TT,T=4.0,*TT,T=4.0
62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
*TT,T=4.0,*TT,T=4.0
*TL,T=4.38,*TL,T=4.38
*TT,T=4.0,*TT,T=4.0
*TL,T=4.38,*TL,T=4.38
62651BWEATHERSTRIP, SIDE WINDOW, FRONT NO.1
62651CWEATHERSTRIP, SIDE WINDOW, REAR NO.1
W/*TL GLASS
62724AWEATHERSTRIP, WATER PROOF
UPR
62761BRUN, SIDE WINDOW, FRONT UPPER, NO.1(FOR SLIDE TYPE)
62761CRUN, SIDE WINDOW, FRONT LOWER, NO.1(FOR SLIDE TYPE)
62761DRUN, SIDE WINDOW, REAR UPPER, NO.1(FOR SLIDE TYPE)
62777STOPPER, SIDE WINDOW
W/GLIDE DOOR
9015740001
main90157-40001
9046806075
main90468-06075
9321963012
main93219-63012
9322923006
main93229-23006
9322924012
main93229-24012
9323924008
main93239-24008
9326963006
main93269-63006
41 parts on this diagram · 13 diagrams in section
