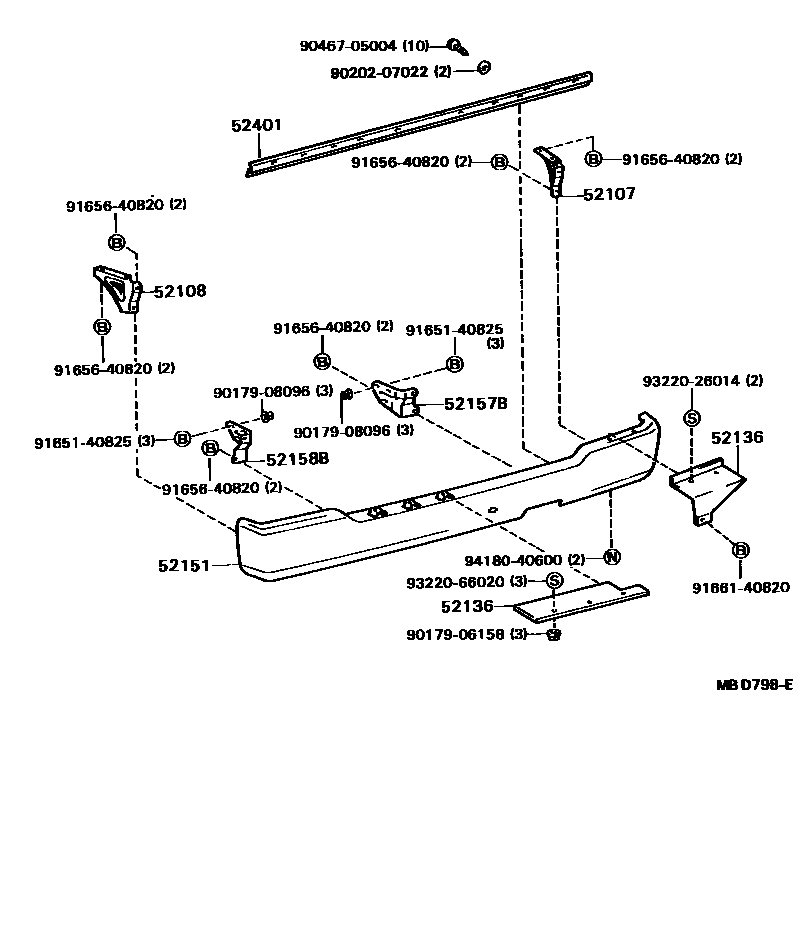

REAR BUMPER & BUMPER STAY

52107STAY SUB-ASSY, REAR BUMPER, RH

main52153-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

52108STAY SUB-ASSY, REAR BUMPER, LH

main52154-90B00iBB32..4FC198205-199301

52136PLATE, BACK DOOR STEP

main52302-90B00iBB20,21,HB30..LHD..STD..(26S,30S)198510-199301

W/*SSBD

main52302-90B00iBB20198405-198510

HONG KONG SPEC

main52351-90B01iHZB30..SRF199001-199301

W/ROOF RACK

main52351-90B01iBB20,21,FB30,HB30,RB20..SRF..GEN198205-199301

52151BUMPER ASSY, REAR

main52105-90B00iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198711

sub52105-90B09

main52105-90B01iBB20,21,FB30,HB30,RB20..(17S,22S,25S,26S,29S,30S)..(GEN,ME)198205-198708

RUST PROOF

sub52105-90B06

main52105-90B02iBB20,21,HB30,RB20..RHD..(26S,30S)198510-198711

W/*SSBD

sub52105-90B10

main52105-90B03iBB20,21,FB30,HB30,RB20..SRF..(GEN,ME)198205-198711

W/ROOF RACK

sub52105-90B11

main52105-90B04iBB20,21,FB30,HB30,RB20..SRF..GEN198205-198708

RUST PROOF,W/ROOF RACK

sub52105-90B07

main52105-90B05iBB20,21,HB30,RB20..RHD..(26S,30S)198510-198708

W/*SSBD,RUST PROOF

sub52105-90B08

main52105-90B05iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

sub52105-90B08

main52105-90B06iBB21,FB30,HB30,HZB30,RB20..17S,22S,25S,26S,29S,30S198708-199301

RUST PROOF

sub52105-90B09

main52105-90B07iHZB30..SRF198708-199301

RUST PROOF,W/ROOF RACK

sub52105-90B11

main52105-90B08iBB21,HB30,RB20..RHD..(26S,30S)198708-199301

W/*SSBD,RUST PROOF

sub52105-90B10

main52105-90B09iBB32..4FC198711-199301

main52105-90B10iBB2#,HB30,RB20..RHD..(15S,26S,30S)198711-199301

W/*SSBD

main52105-90B11iHZB30..SRF198711-199301

W/ROOF RACK

52157BSTAY, REAR BUMPER SIDE, NO.2 RH

main52157-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

52158BSTAY, REAR BUMPER SIDE, NO.2 LH

main52158-90B00iBB32..4FC198205-199301

52401DEFLECTOR, REAR BUMPER STONE

main59211-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

9017906158

main90179-06158

9017908096

main90179-08096

9020207022

main90202-07022

9046705004

main90467-05004

9165140825

main91651-40825

9165640820

main91656-40820

9166140820

main91661-40820

9322026014

main93220-26014

9322066020

main93220-66020

9418040600

main94180-40600

17 parts on this diagram · 1 diagram in section
