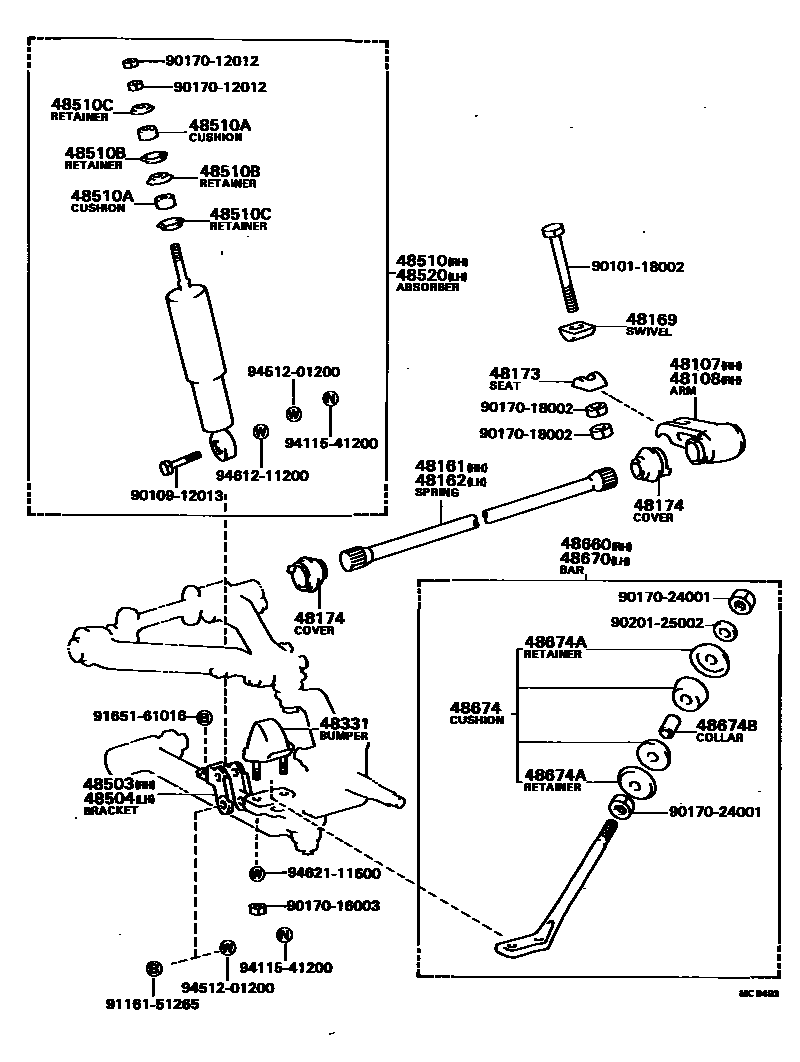

FRONT SPRING & SHOCK ABSORBER

48107ARM SUB-ASSY, ANCHOR, RH

main48107-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48108ARM SUB-ASSY, ANCHOR, LH

main48108-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48161SPRING, TORSION BAR, RH

main48161-36010iBB2#..15S198205-199301

main48161-36010iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main48161-36020iBB32,HDB30..5F198205-199301

main48161-36040iBB32..4FC198610-199301

48162SPRING, TORSION BAR, LH

main48162-36010iRB20..17S198205-199301

main48162-36010iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main48162-36020iHZB30..ARL198205-199301

main48162-36040iBB32..4FC198610-199301

48169SWIVEL, ANCHOR ARM

main48169-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48173SEAT, ANCHOR ARM ADJUSTER

main48173-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48174COVER, TORSION BAR DUST

main48174-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48331BUMPER, FRONT SPRING, NO.1

main48304-36040iBB2#,FB30,HB30,HDB30,HZB30,RB20198205-199301

main48304-36050iBB20,21,22,30,FB30,HB3#,HZB30,RB20..GEN,ME198205-199301

W/7.00-16 OR 7.00R16TIRE

main48304-36050iBB32198808-199301

48503BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH

main48514-36020iBB2#,3#,FB30,HB3#,RB20198205-199301

48504BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER LH

main48515-36020iBB2#,3#,FB30,HB3#,RB20198205-199301

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39345iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub48511-39346

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01004iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02009iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02054iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39345iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub48511-39346

48660BAR ASSY, STRUT, RH

main48661-39045iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48670BAR ASSY, STRUT, LH

main48661-39045iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48674CUSHION, STRUT BAR

main48674-39055iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02055iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-24001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9010118002

main90101-18002

9010912013

main90109-12013

9017012012

main90170-12012

9017016003

main90170-16003

9017018002

main90170-18002

9017024001

main90170-24001

9020125002

main90201-25002

9116151265

main91161-51265

9165161016

main91651-61016

9411541200

main94115-41200

9451201200

main94512-01200

9461211200

main94612-11200

9462111600

main94621-11600

33 parts on this diagram · 1 diagram in section
