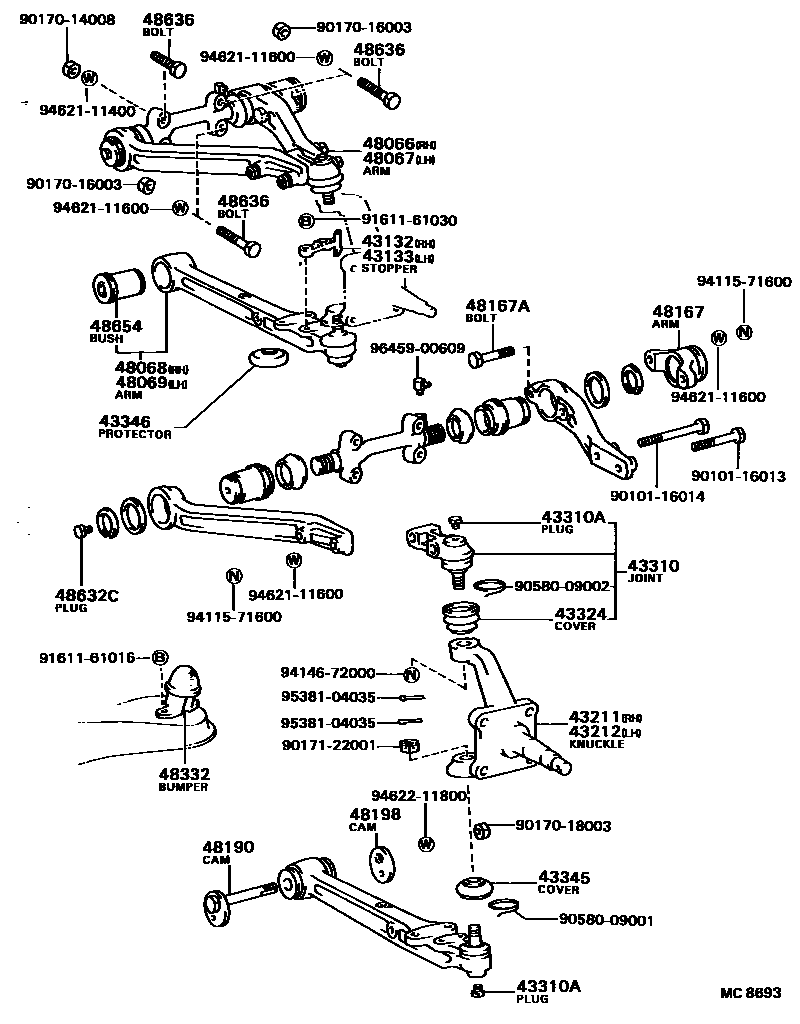

FRONT AXLE ARM & STEERING KNUCKLE

43132STOPPER, STEERING KNUCKLE, RH

main43132-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43133STOPPER, STEERING KNUCKLE, LH

main43133-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43211KNUCKLE, STEERING, RH

main43211-36070iBB2#,32,FB30,HDB30,HZB30,RB20198205-199301

main43211-36100iRB20198205-199001

43212KNUCKLE, STEERING, LH

main43211-36070iBB2#,3#,FB30,HB3#198205-199301

main43211-36100iRB20198205-199001

43310JOINT ASSY, UPPER BALL

main43350-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43310APLUG (FOR BALL JOINT)

main90345-06014iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43324COVER, UPPER JOINT DUST

main43324-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43345COVER, LOWER BALL JOINT DUST

main43345-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48167ARM, TORQUE

main48106-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub48106-36020

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-16012iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48190CAM ASSY, CAMBER ADJUST

main48190-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48198CAM, CAMBER ADJUST, NO.2

main48198-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48332BUMPER, FRONT SPRING, NO.2

main48332-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48632CPLUG(FOR UPPER ARM BUSH)

main90345-06014iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

48636BOLT, UPPER ARM SET

main90105-14015iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

FR

main90105-16014iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

RR,UPR

main90105-16015iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

RR,LWR

48654BUSH, LOWER ARM

main48061-36011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9010116013

main90101-16013

9010116014

main90101-16014

9017014008

main90170-14008

9017016003

main90170-16003

9017018003

main90170-18003

9017122001

main90171-22001

9058009001

main90580-09001

9058009002

main90580-09002

9161161016

main91611-61016

9161161030

main91611-61030

9411571600

main94115-71600

9414672000

main94146-72000

9462111400

main94621-11400

9462111600

main94621-11600

9462211800

main94622-11800

9538104035

main95381-04035

9645900609

main96459-00609

38 parts on this diagram · 1 diagram in section
