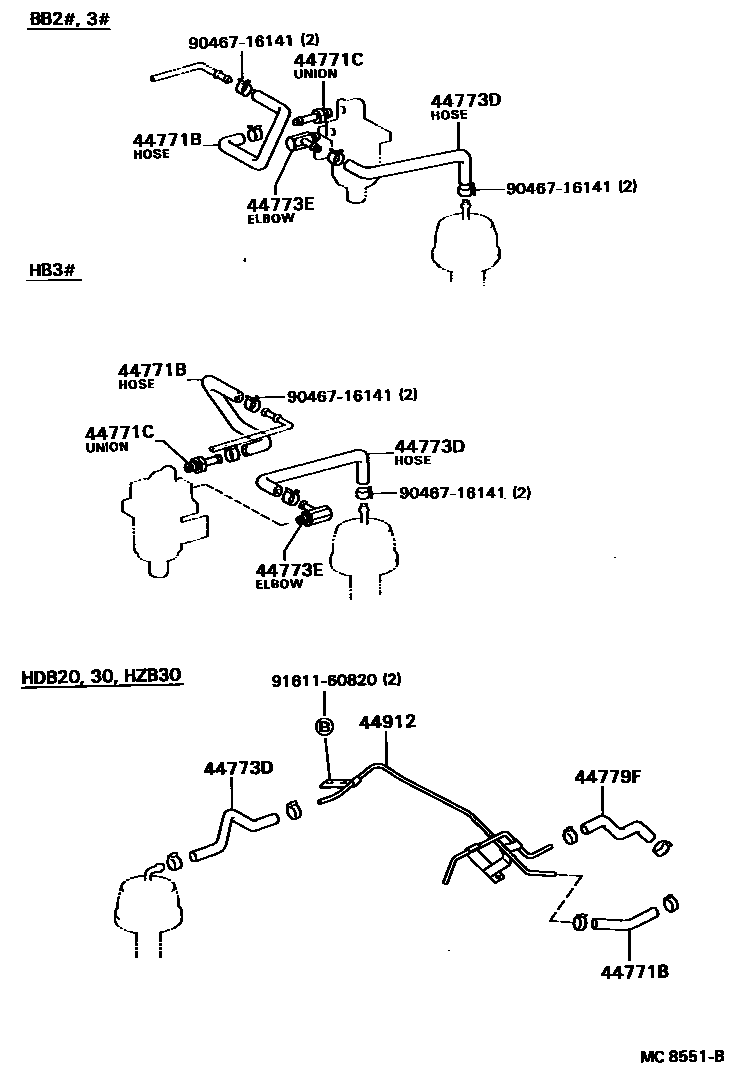

EXHAUST BRAKE TUBE & CLAMP

44771BHOSE, VACUUM TUBE CONNECTOR

main44771-36040iBB20..RHD..GEN198205-199301

main44771-36220iHDB30,HZB30199001-199301

main44779-36070iHB3#198610-199301

44771CUNION(FOR VACUUM TUBE CONNECTOR HOSE)

main90404-51319iHDB30,HZB30198205-199301

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36010iBB20,30..GEN198205-198408

main44773-36011iBB2#,3#..GEN,ME198408-199301

main44773-36110iHB3#198610-199301

main44773-36140iHDB30,HZB30199001-199301

44773EELBOW(FOR SOLENOIDO TO RETARDER HOSE)

main90407-51002iBB20..RHD..GEN198205-199301

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36090iHDB30,HZB30199001-199301

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36220iHDB30,HZB30199001-199301

9046716141

main90467-16141

9161160820

main91611-60820

8 parts on this diagram · 1 diagram in section
