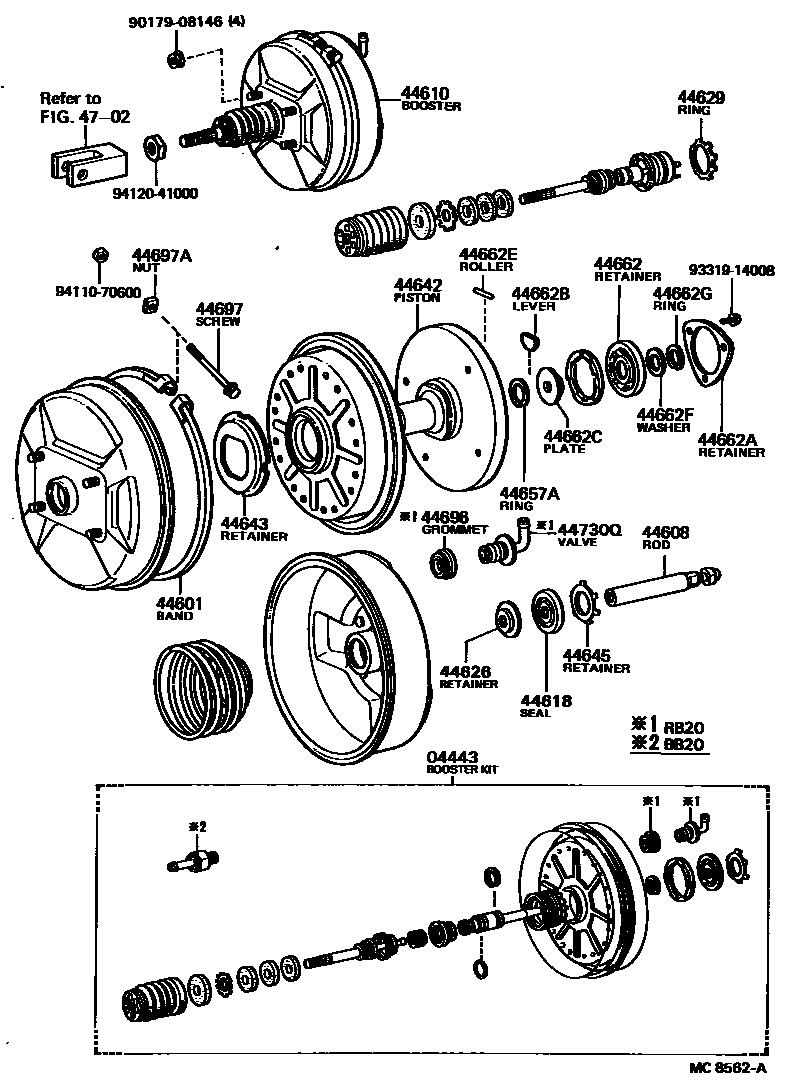

BRAKE BOOSTER & VACUUM TUBE
04443BOOSTER KIT, BRAKE
AISIN
AISIN
JKC
FR DISC
FR DISC
FR DRUM
44601BAND SUB-ASSY, BOOSTER BODY
44608PUSH ROD SUB-ASSY, BOOSTER
AISIN
JKC
JKC
44610BOOSTER ASSY, BRAKE
AISIN
AISIN
JKC
FR DISC
FR DRUM
44618SEAL, BOOSTER BODY
44626RETAINER, BOOSTER ROD CUP
44629RING, CIRCULAR INTERNAL
44642PISTON, BRAKE BOOSTER
JKC
AISIN
44643RETAINER, DIAPHRAGM
44645RETAINER, BOOSTER PUSH ROD SEAL
44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
44662RETAINER, REACTION, NO.1
44662ARETAINER, REACTION, NO.2
44662BLEVER, REACTION
sub44661-35100
44662CPLATE, REACTION, NO.1
44662EROLLER(FOR REACTION LEVER)
44662FWASHER(FOR REACTION LEVER)
44662GRING, SNAP(FOR REACTION RETAINER)
44696GROMMET, CHECK VALVE
44697SCREW, BOOSTER BAND SET
44697ANUT(FOR BOOSTER BAND SET)
44730QVALVE ASSY, VACUUM CHECK, NO.2
4702
9017908146
main90179-08146
9331914008
main93319-14008
9411070600
main94110-70600
9412041000
main94120-41000
27 parts on this diagram · 13 diagrams in section
